Cruise Control

Cruise Control

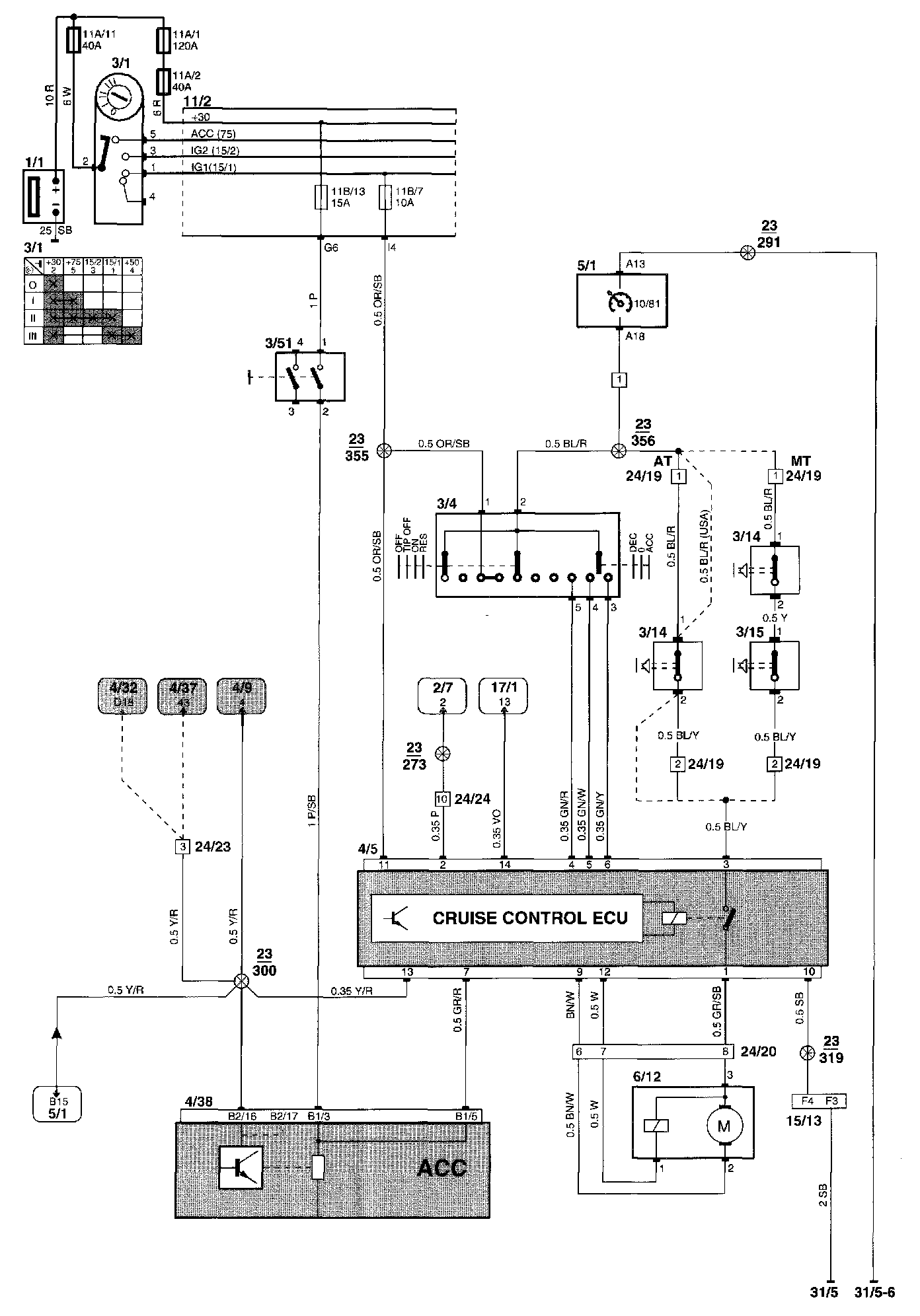

Wiring Diagram:

Components:

Component I.D. List

3/1 - Ignition switch
3/4 - Controls cruise control
3/14 - Brake pedal switch
3/15 - Clutch pedal switch
3/51 - Switch brake pedal for locking gear shift selector
4/5 - Cruise control module
4/38 - CEM (Central Electronic Module) Electronic central unit
6/12 - Cruise control vacuum pump
11/2 - Fusebox in passenger compartment
15/13 - Distribution ground terminal F2-F11
24/19 - Connector 2-pin Passenger compartment - Cruise control cable harness
24/20 - Connector 22-pin Passenger compartment - Engine compartment cable harness
24/23 - Connector 22-pin Passenger compartment - Engine control module (ECM) cable harness
24/24 - Connector 12-pin Passenger compartment - Engine cable harness
31/5 - Ground terminal
31/6 - Ground terminal
