Signal Description

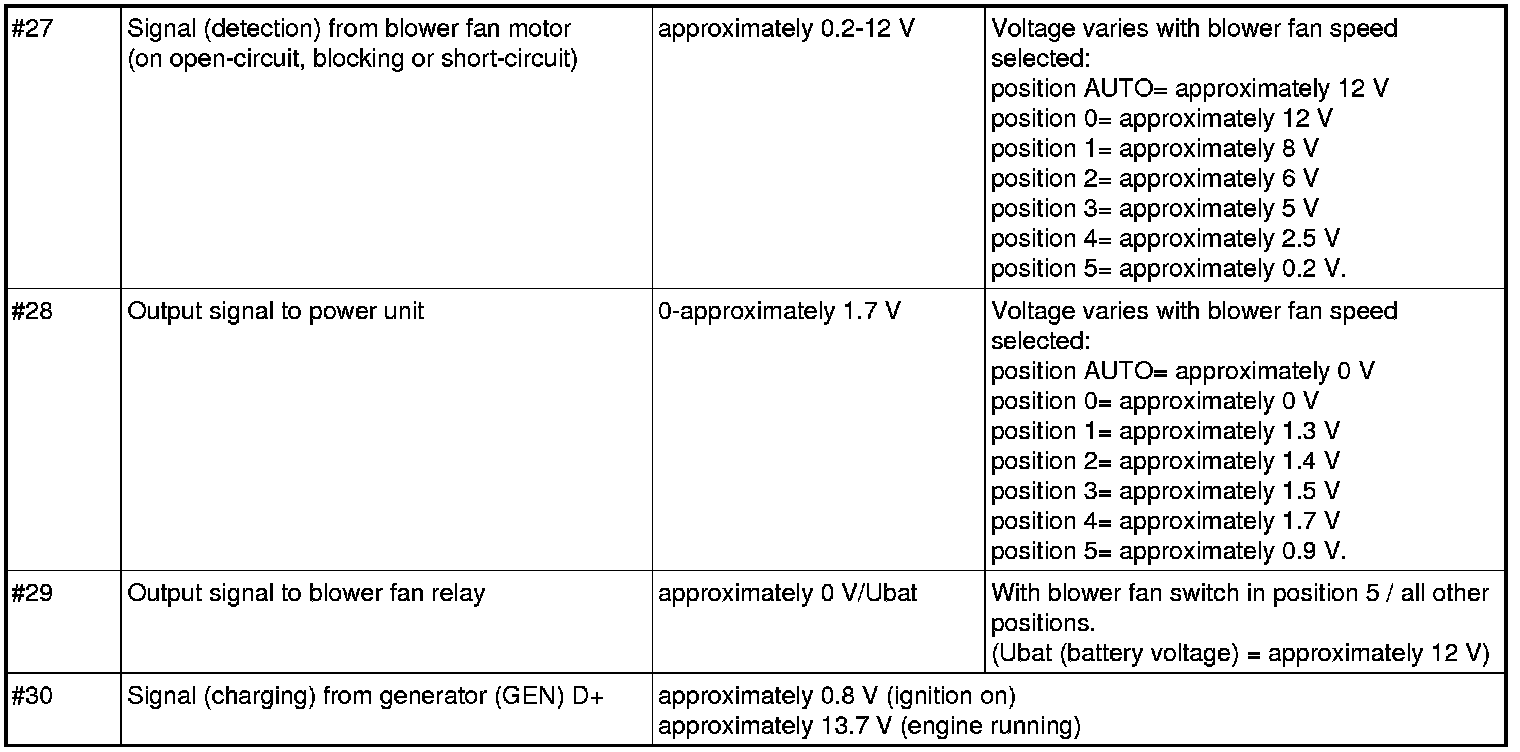

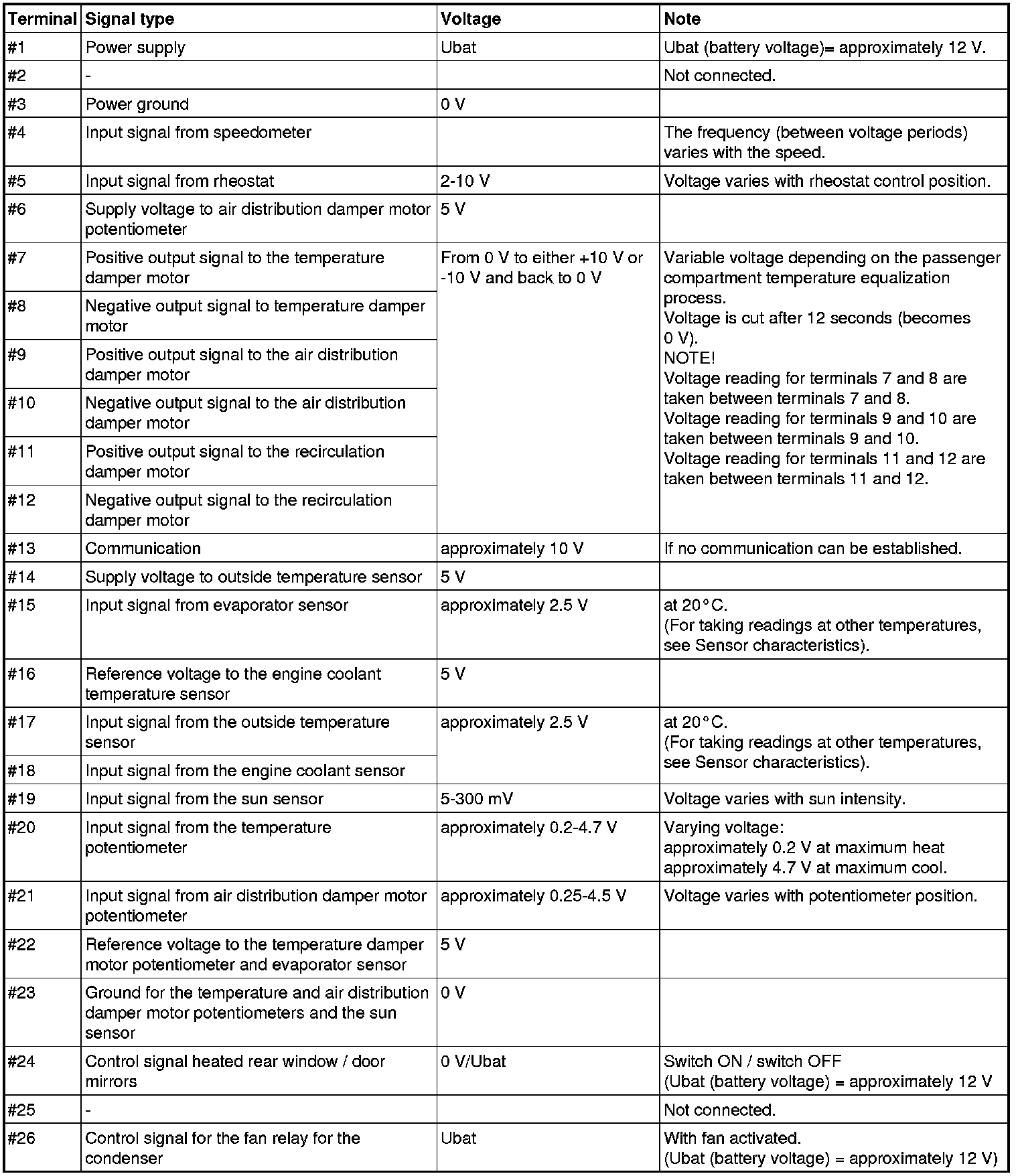

Signal description
All values listed below should be measured between the respective terminal in column 1 ( Terminal ) and ground unless stated otherwise in column 4 ( Other).




ECC control module connector #1-#30, correspond to terminals #1-#30 on the breakout box.

Note! It is important to connect the breakout box and check ground terminals before reading off.
