System Specifications

Generator


Alternator B4204T2/T3






Charging Regulator

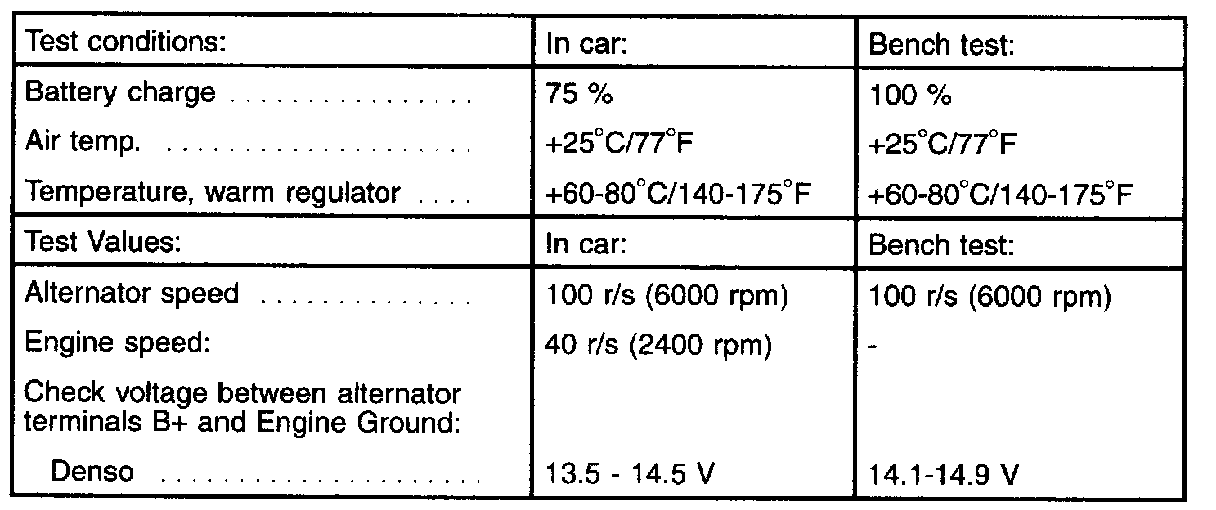

Test Values



1 Phase. A low range ohmmeter should be used.
