Rear Wheel Brakes

Rear wheel brakes

Brake caliper

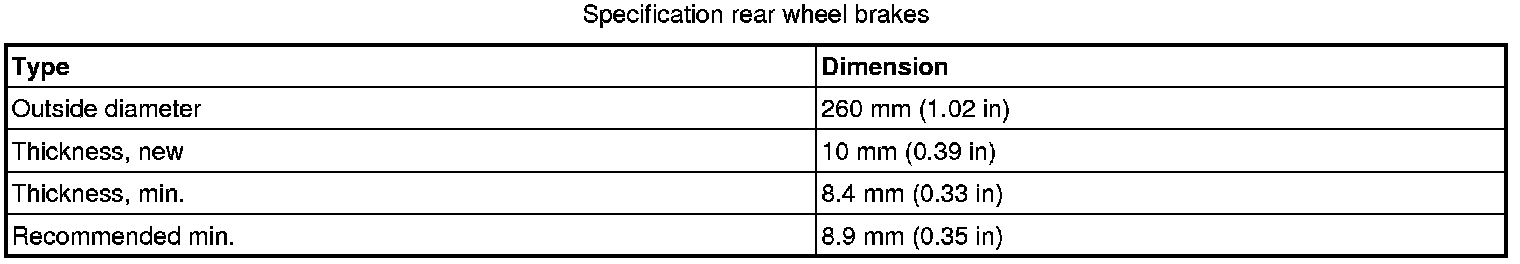

The rear brake discs are not ventilated. The brake calipers are located behind the axle.
The brake calipers are also of the floating type with one cylinder.

Special tools
When new brake pads are installed on the rear, special tool 999-5634 shall be used to turn back the brake piston.
