Home >> Volvo >> 2001 >> S40 L4-1.9L Turbo VIN 29 B4204T3 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 44/22

44/22

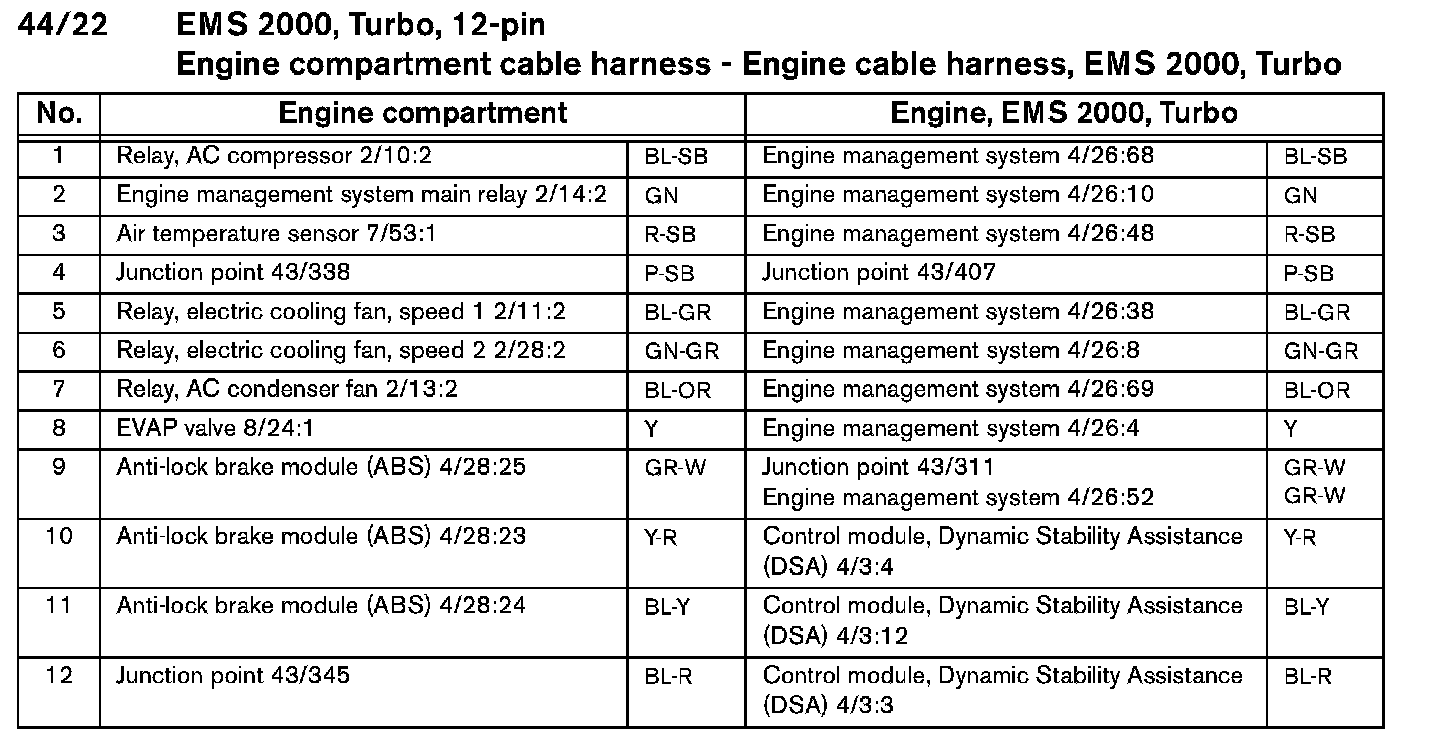

44/22:

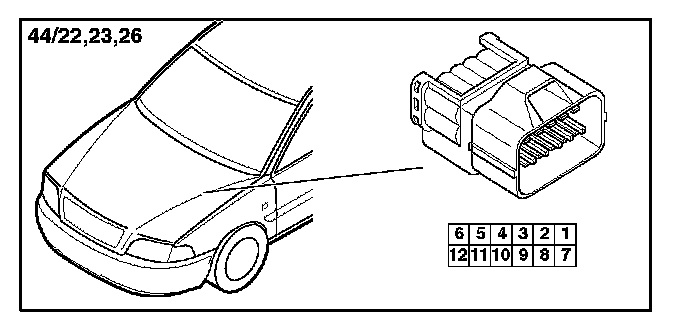

44/22,23,26 Connectors:
