Home >> Volvo >> 2001 >> S40 L4-1.9L Turbo VIN 29 B4204T3 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 44/24

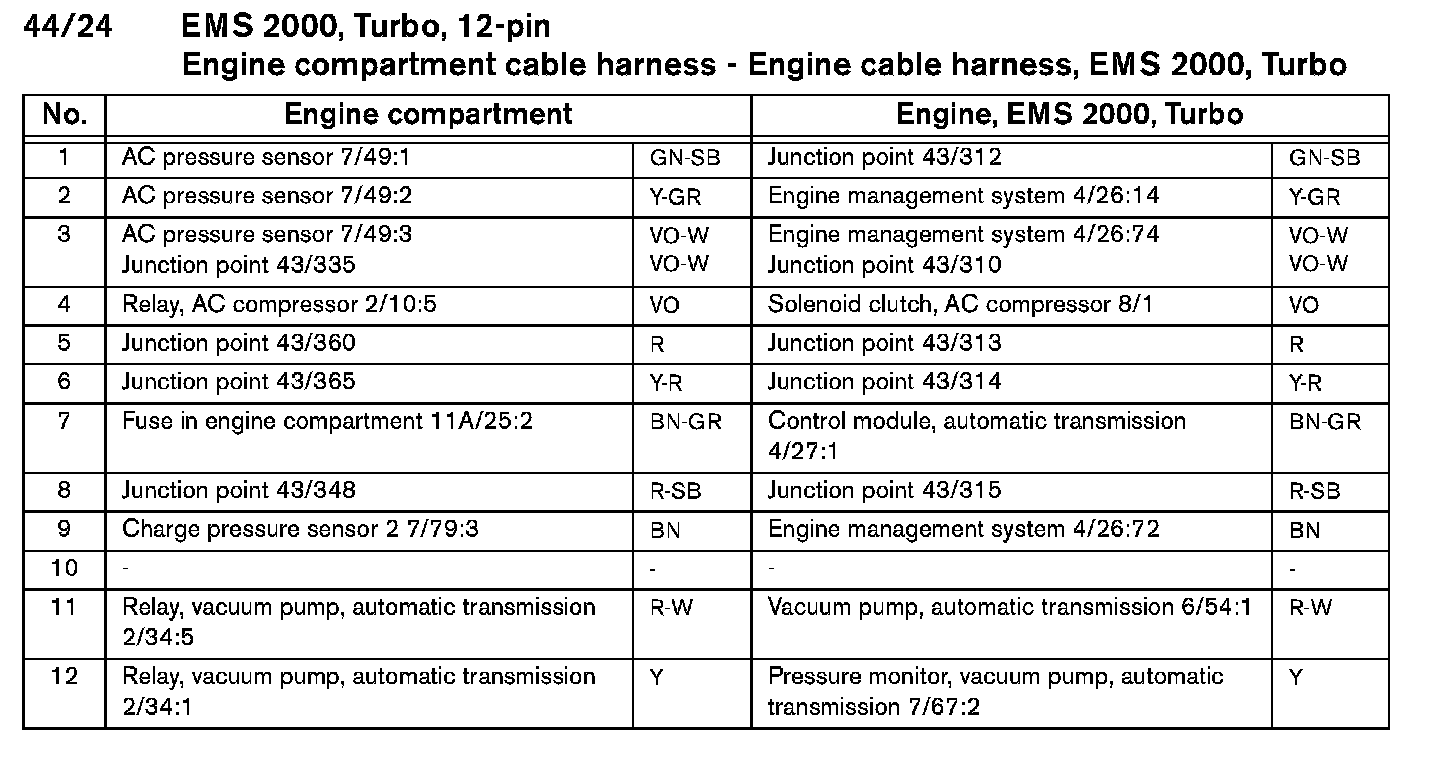

44/24

44/24:



44/24 Connectors:
