Home >> Volvo >> 2001 >> S40 L4-1.9L Turbo VIN 29 B4204T3 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 44/5

44/5

44/5:

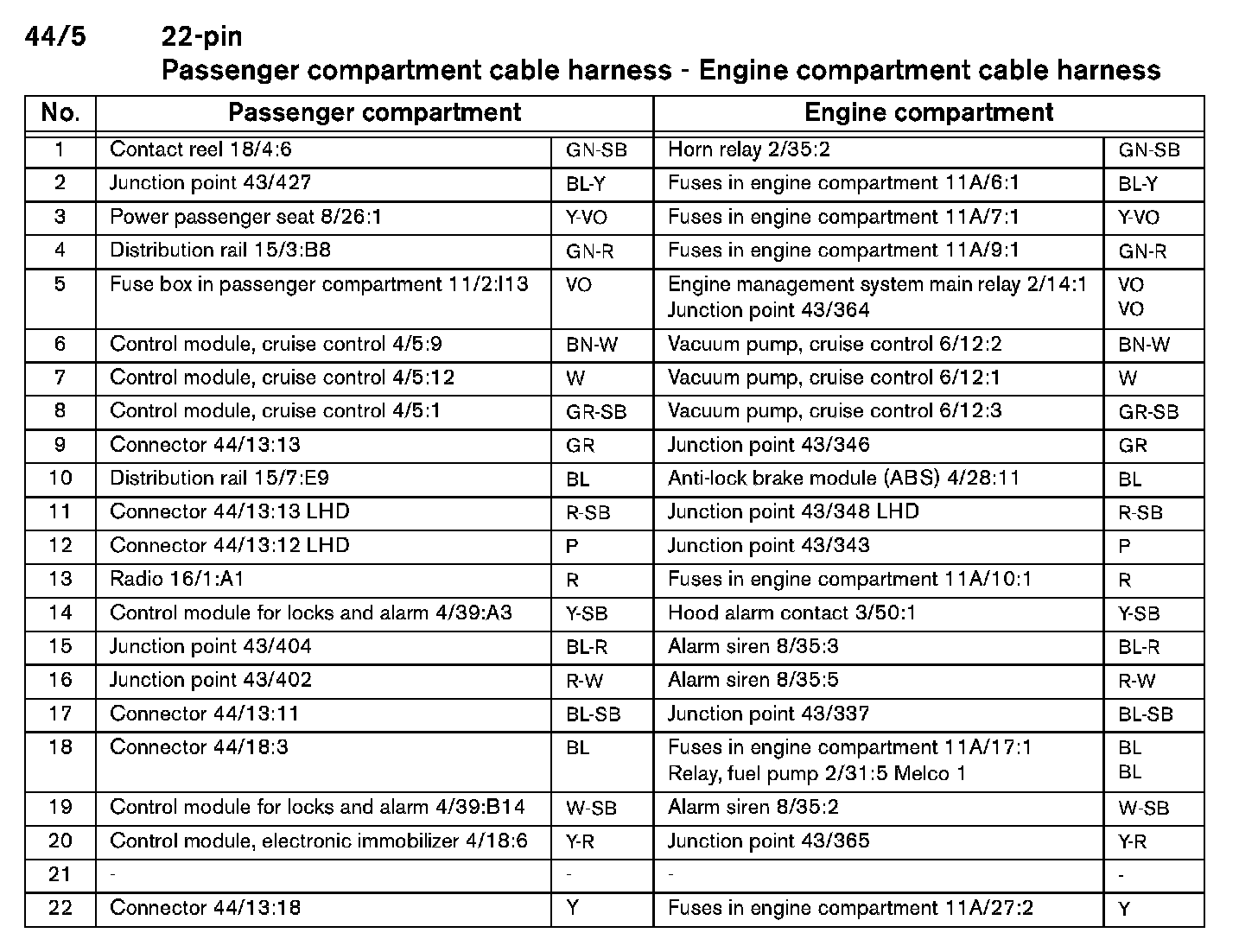

44/5 Connectors:
