Operation CHARM: Car repair manuals for everyone.
Home >> Volvo >> 2001 >> S40 L4-1.9L Turbo VIN 29 B4204T3 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 44/6

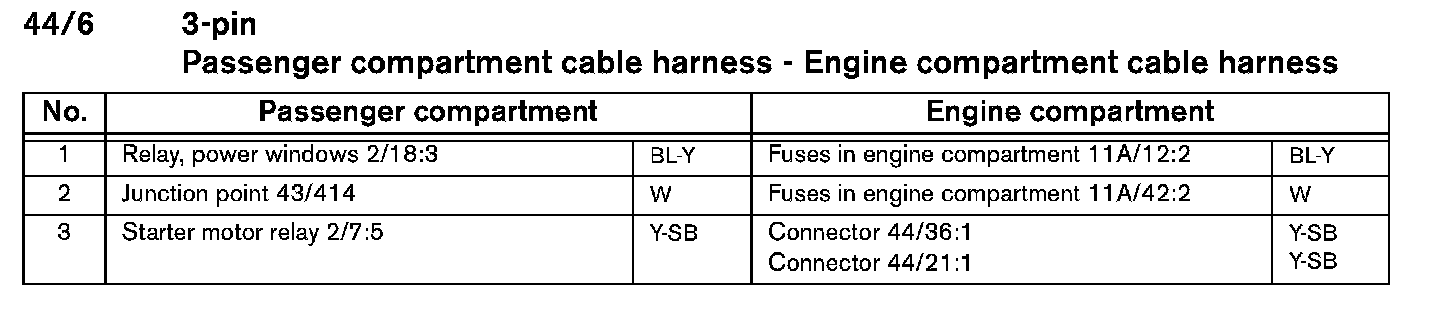

44/6

44/6:



44/6 Connectors:
