S40 L4-1.9L Turbo VIN 29 B4204T3
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trailer Connector
Trailer Connector

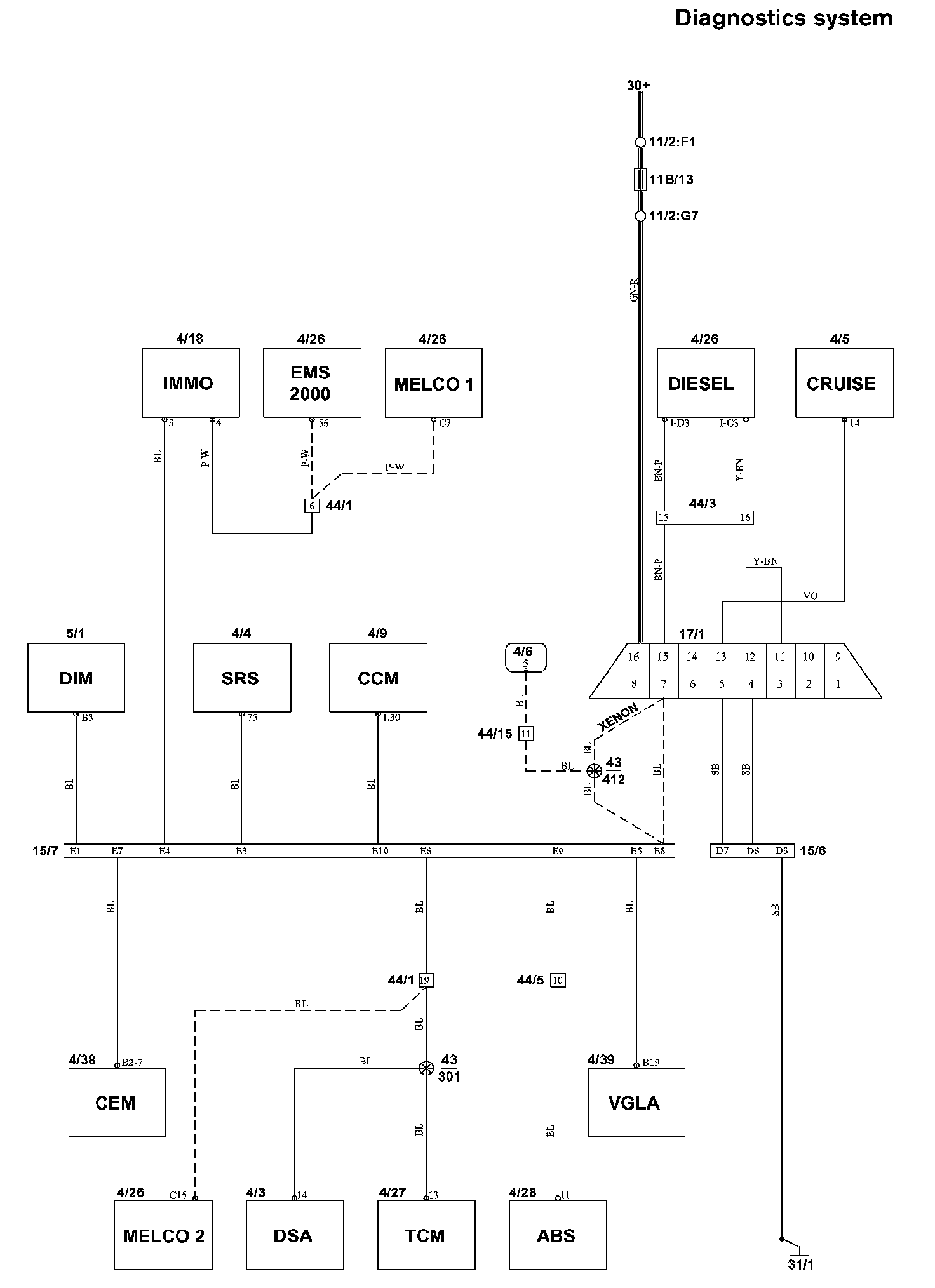

Diagnostic System
Diagnostic System:
Diagram Legend
Diagram Legend
