Table Under Rear Centre Armrest

Table Under Rear Centre Armrest










INTRODUCTION

- NOTE: Read through the whole installation instruction before starting the work.

- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section

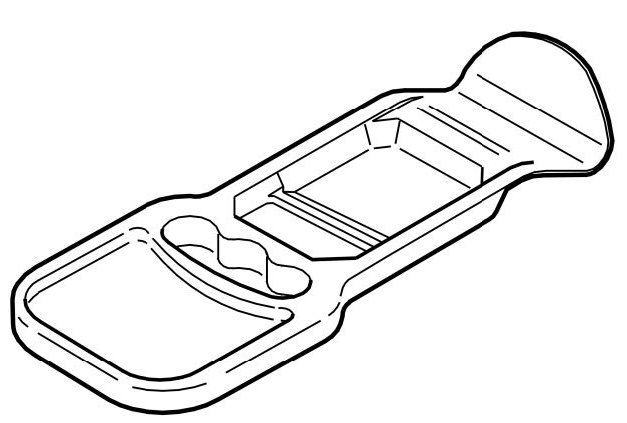

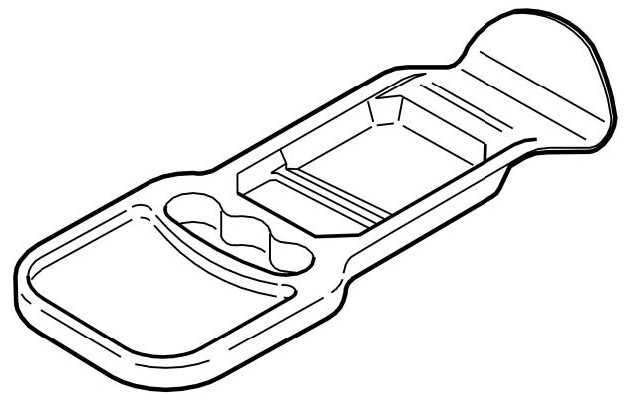

Table under rear centre armrest







- Fold up the rear armrest

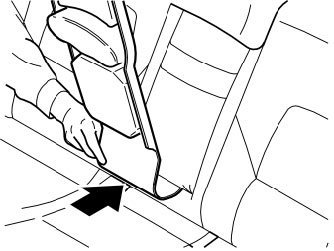

- Insert the table in the gap by the lower edge of the armrest as illustrated.







- Fold the table and armrest down together towards the seat cushion.







- Press the table backwards as far as possible.







- Fold up the armrest again.

Using and removing

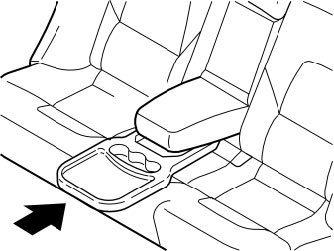

The table can be used both when the armrest is folded up and when it is folded down.

Removal
- Fold up the armrest with the table until the armrest is in the folded in position
- Carefully pull the table out from the gap at the lower edge of the armrest.

WARNING: The table must not be in the folded up (vertical) position after being installed at the armrest. When the table is not used or installed it should be stored in the cargo compartment. Failure to follow these instructions may result in injury in the event of an accident.
