Location of Components

Location of components





The brake system can be divided into the following main components:
- Wheel braking system
- Hydraulic braking system
- Parking brake system
- ABS, EBD and anti-spin systems
Certain components are located differently in the engine compartment depending if the car is left or right-hand drive.

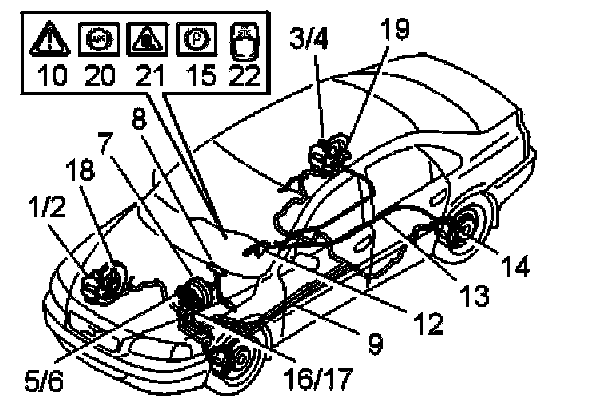

The main systems consist of the following main components:
Wheel braking system
- Front brake caliper and pad (1)
- Front brake disc (2)
- Rear brake caliper and pad (3)
- Rear brake disc (4)
Hydraulic braking system
- Brake fluid reservoir and level sensor (5)
- Master cylinder (6)
- Power brake booster overload relay (7)
- Brake pedal and stop (brake) light contact (8)
- Brake lines (9)
- Brake circuit warning indicator (10)
Parking brake system
- Parking brake lever (12)
- Brake wires (13)
- Brake shoes (14)
- Parking brake fever warning lamp (15)
ABS, EBD and anti-spin systems
- Control module for ABS, EBD and anti wheelspin (16)
- ABS warning lamp (20)
- Anti-wheelspin warning lamp (Only cars with anti wheelspin) (21)
- Anti-wheelspin switch (Only cars with anti wheel spin) (22)
- ABS hydraulic modulator with pump motor and valves (17)
- Front wheel sensor with pulse wheel (18)
- Rear wheel sensor with purse wheel (19)
