Home >> Volvo >> 2001 >> S60 2.4 L5-2.4L VIN 61 B5244S >> Repair and Diagnosis >> Diagrams >> Connector Views >> 54/3LG

54/3LG

54/3LG:

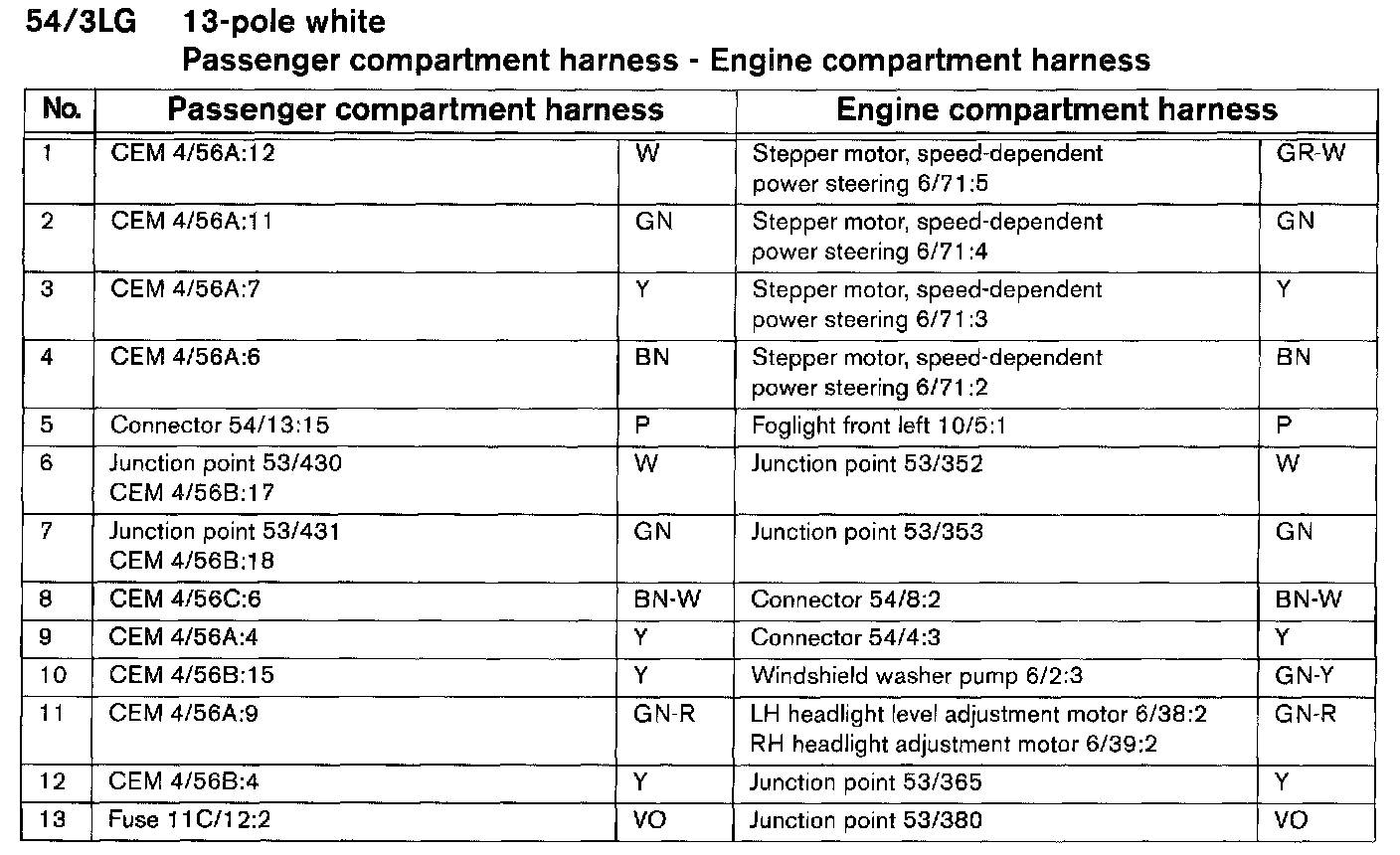

54/3L-G Connector:
