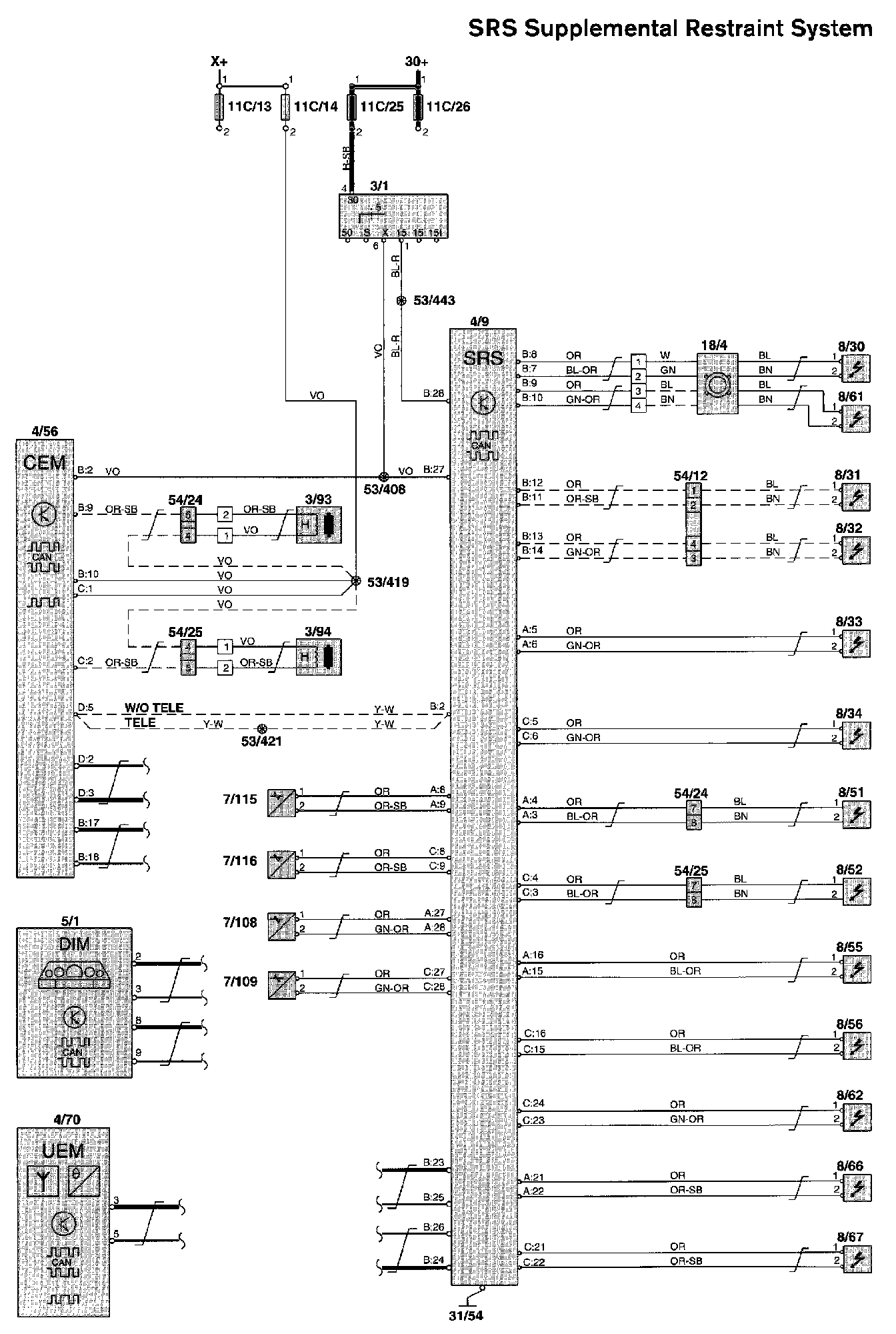

Supplemental Restraint System (SRS)




SRS Supplemental Restraint System:






Diagram Legend, Diagram Legend
