Electronic Climate Control (ECC)

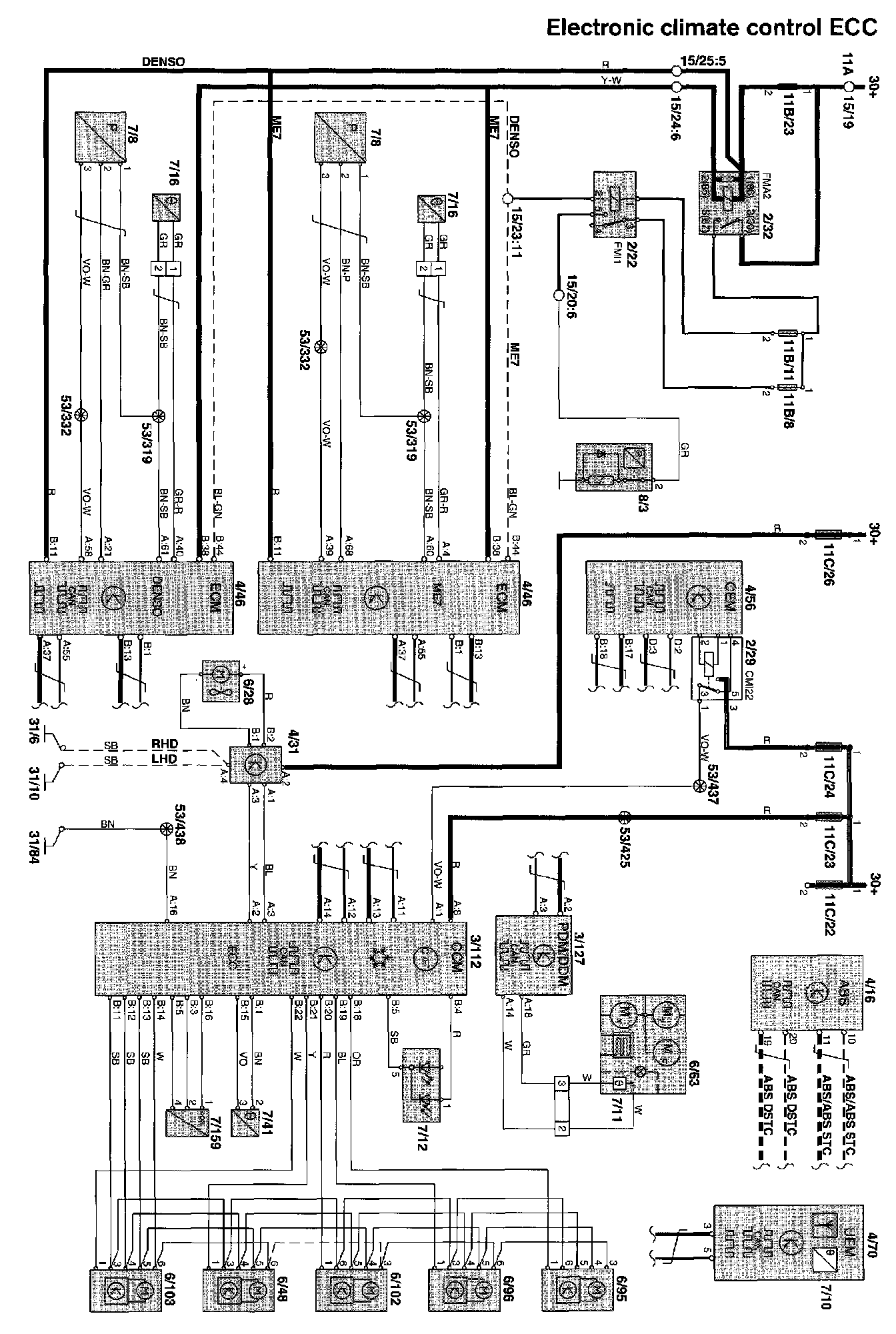

Electronic Climate Control ECC:






Diagram Legend, Diagram Legend
