Electrical Diagrams

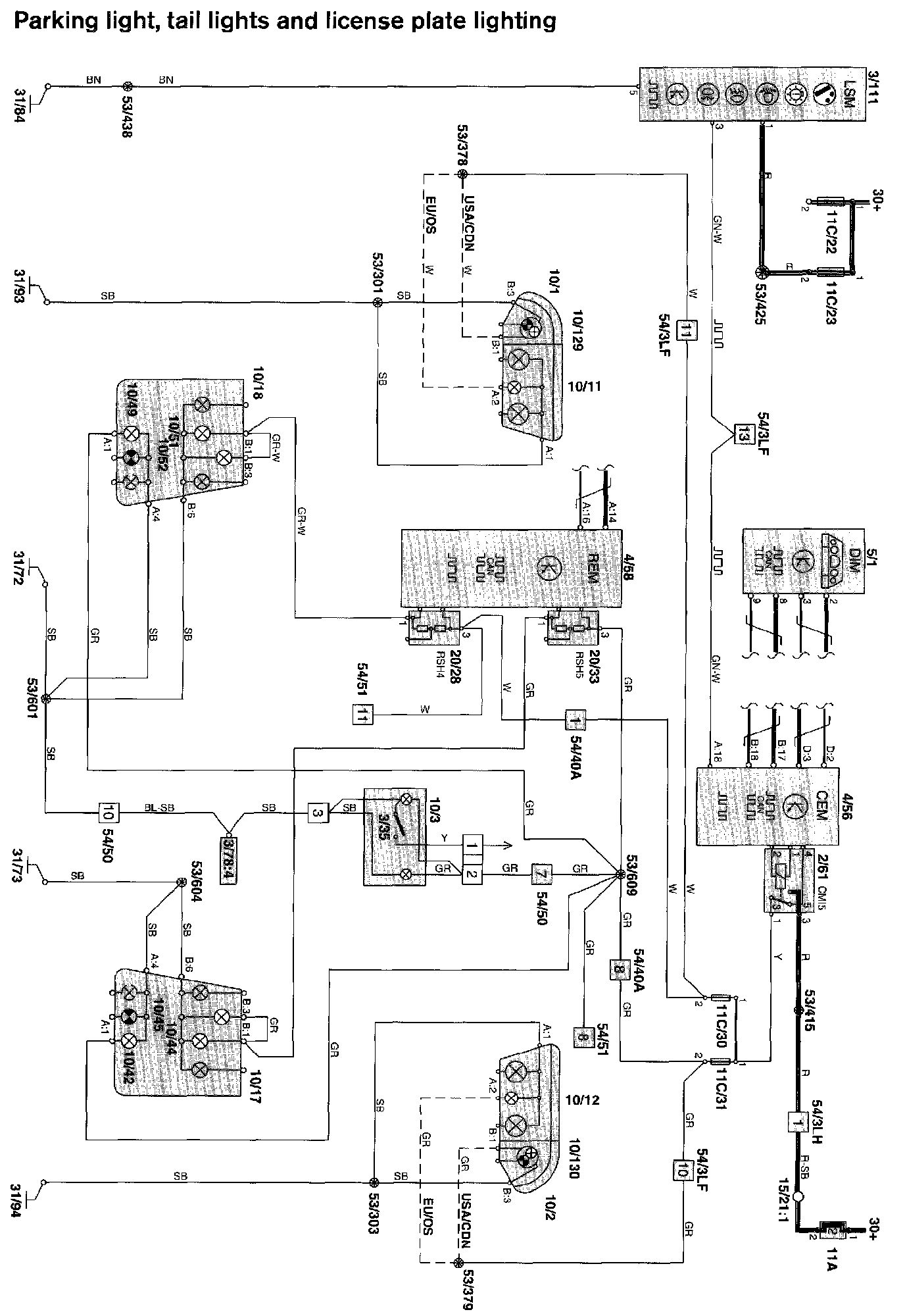

Parking Light, Tail Lights and License Plate Lighting


Parking Light, Tail Lights And License Plate Lighting:






Diagram Legend, Diagram Legend
