Electrical Diagrams

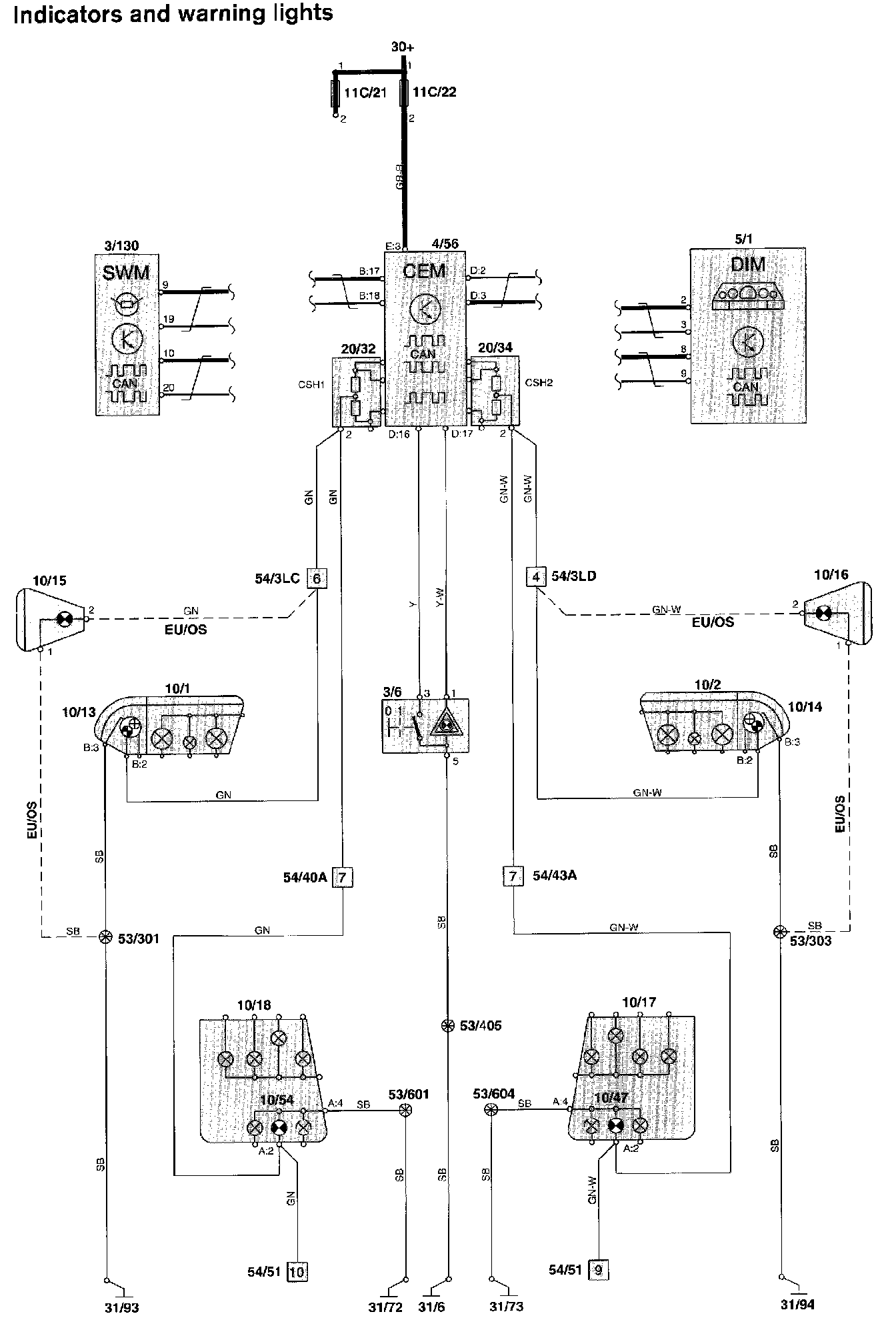

Indicators And Warning Lights


Indicators And Warning Lights:






Diagram Legend, Diagram Legend
