Operation CHARM
: Car repair manuals for everyone.
Home
>>
Volvo
>>
2001
>>
S60 2.4 L5-2.4L VIN 61 B5244S
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

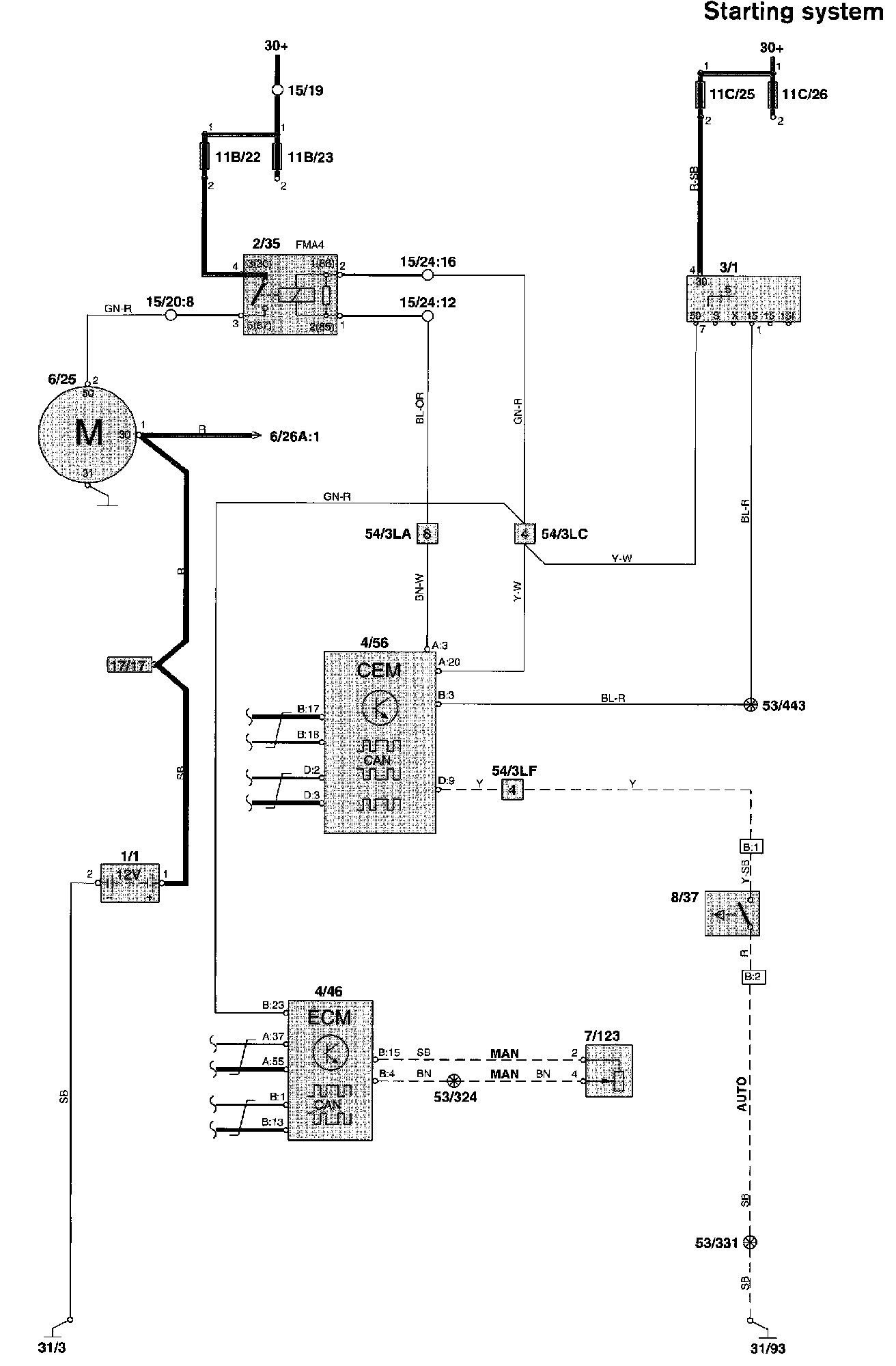

Starting System
Starting System:
Diagram Legend,
Diagram Legend
