Home
>>
Volvo
>>
2001
>>
S60 2.4 L5-2.4L VIN 61 B5244S
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Heated Glass Element
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

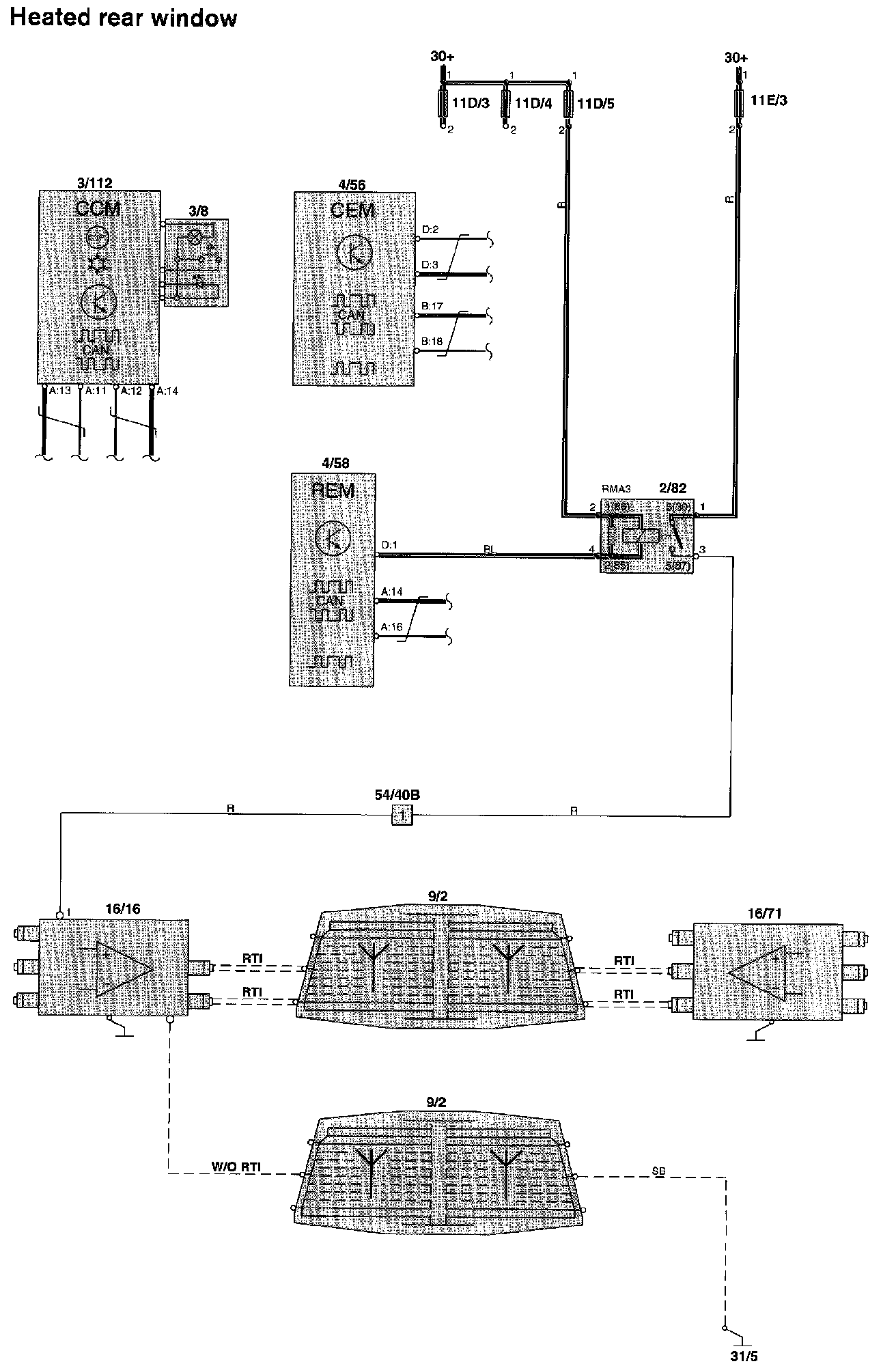

Heated Rear Window
Heated Rear Window:
Diagram Legend,
Diagram Legend
