Windshield: Specifications



Windshield frame, dimensions

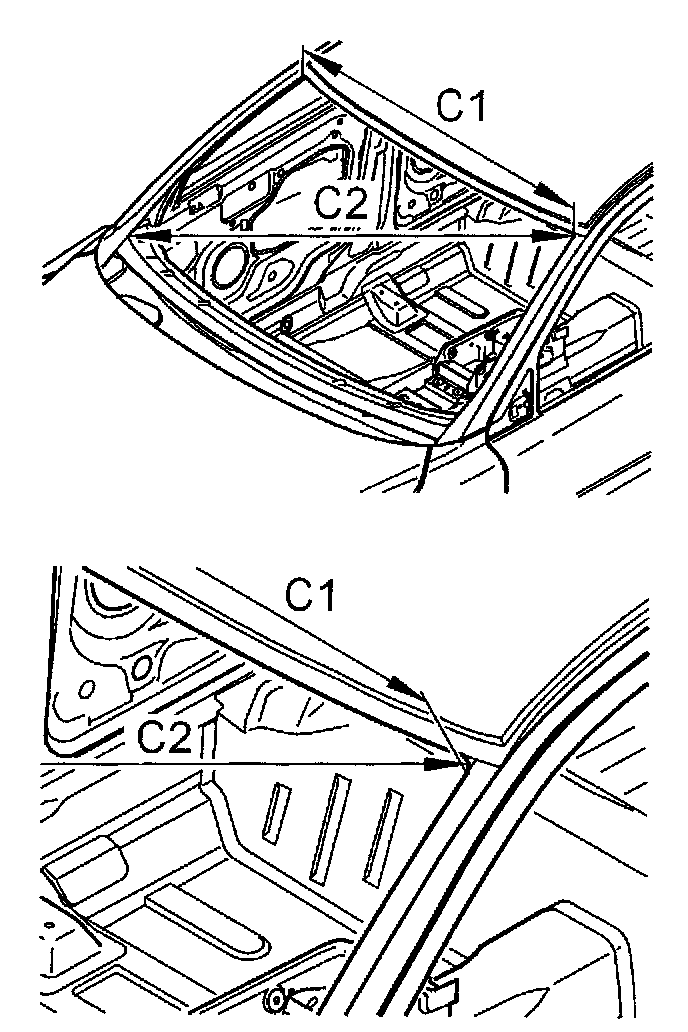

Dimension C1 = 1170 mm.
Dimension C2 = 1493 mm.

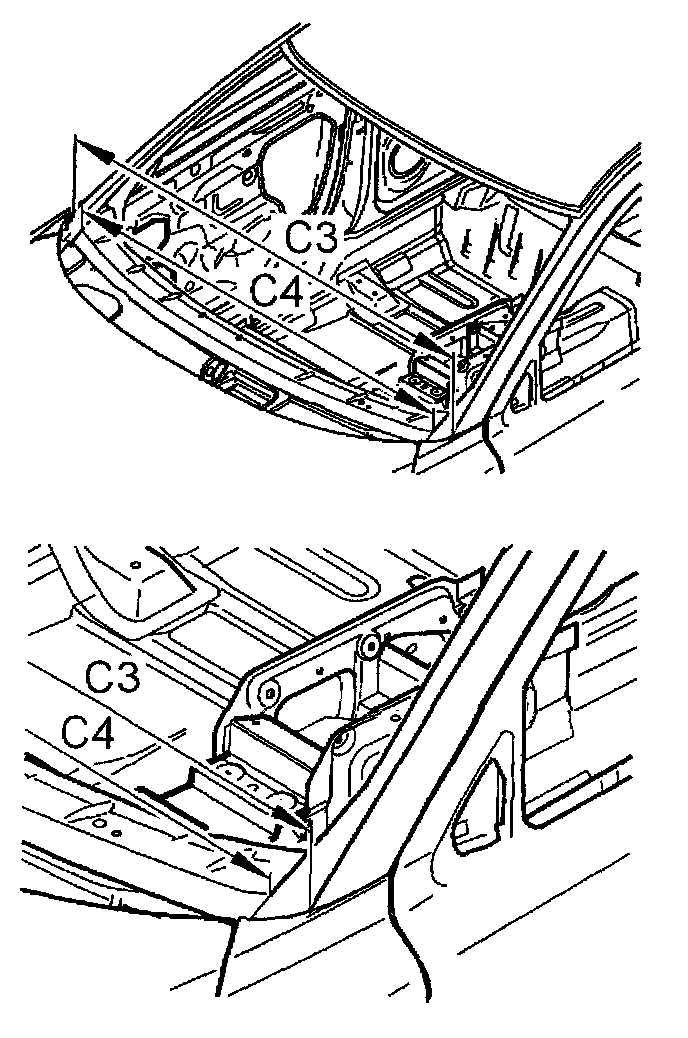

C3 = 1545 mm.
C4 = 1412 mm.
