Accessory Electronic Module Without Wiring Kit

Accessory Electronic Module without wiring kit







- Turn the ignition key to position 0
- Cars with manual gearboxes: Remove the ignition key
- Disconnect the battery negative lead.

NOTE: Wait at least five minutes before disassembling the connectors or removing other electrical equipment.







- Remove both floor hatches. First lift the rear edges of the floor hatches slightly. Then pull the hatches backwards from their mountings.

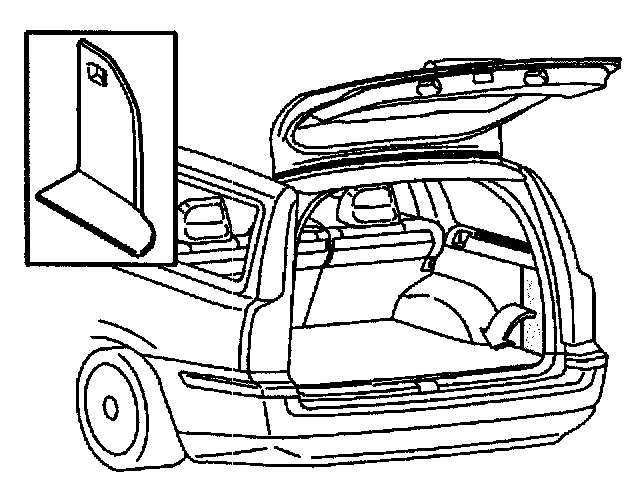

- Remove the folding panel from the right-hand side of the cargo compartment.







- Remove the right-hand side panel. First remove the cover and the screw from the front edge
- Pull the top edge of the panel out until the clips release
- Fold the panel inwards. Lift the panel out.







- Remove the insulation panel from the cargo compartment.

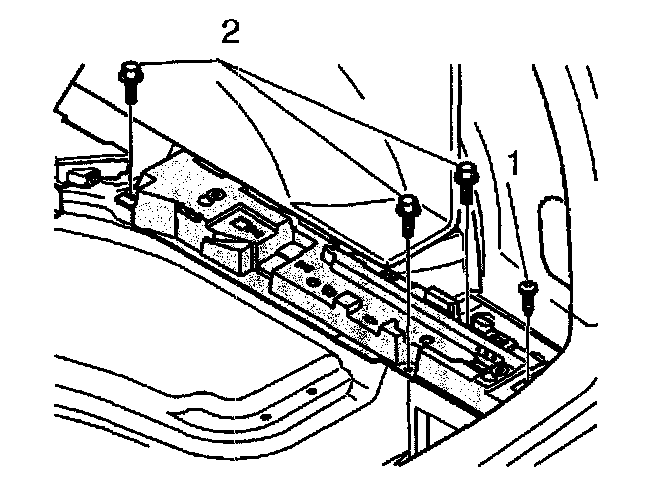

- Remove the screw (1) from the right-hand side of the tailgate sill trim panel
- Remove the three screws (2) from the right-hand floor support
- Remove the floor support.







- Fold up the rear section of the cargo compartment carpet
- Press the centre of the clips at the lower edge of the foldable side panel on the left-hand side until they click
- Remove the two clips.







- Turn the handle (1) on the right-hand side through 90°
- Fold down the side panel down. Lift the panels out.







- Install the new bracket on the right-hand rear side member as illustrated
- Install and tighten the bracket parallel with the side member. Use the screw and the nut from the kit
- Tighten to 10 Nm (8 lbf ft)
- Drill a dia. 4mm (5/32") hole in the side member, through the front hole in the bracket
- Tighten the front mounting for the bracket to the side member. Use a self tapping screw from the kit
- Remove any swarf.







- Tighten the bracket for the accessory electronic module in the rear right-hand hole for the floor support parallel with the side member. See the illustration
- Drill a dia. 4mm (5/32") hole in the side member, through the front hole in the bracket
- Remove the screw and the bracket
- Remove any swarf.







- Reinstall the floor support. Tighten the floor support together with the bracket for the accessory electronic module. Use the three M6 screws. Tighten the screws. Tighten to 10 Nm (8 lbf.ft.)
- Position two new spacer washers between the front hole in the bracket and the floor support. Tighten using a new self tapping screw.







Applies to cars equipped with a Diversity antenna amplifier
- Wrap foam tape around the cable/wiring for the antenna amplifier.

Applies to all models
- Remove the pre-routed cable for the accessory electronic module. The cable is taped up at the rear edge of the right-hand rear wheel well
- Take the accessory electronic module from the kit. Connect the routed cable to the cable illustrated.







- Press the control module onto the bracket by the side member.

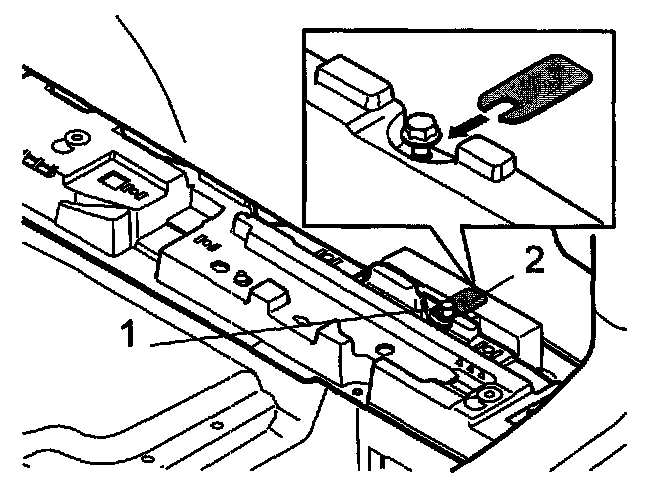

- Slacken off the rear screw (1) in the bracket for the accessory electronic module a few turns
- Insert the grooved end of the lock facing (2) under the screw head. Position as illustrated
- Tighten the screw. Tighten to 10 Nm (8 lbf. ft.)
- Reinstall the removed panel in the cargo compartment.

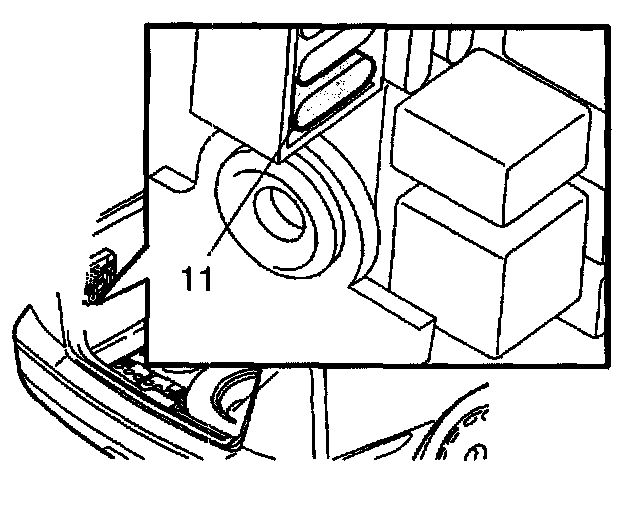

- Install the fuse from the kit in position II in the fuse holder.







- Turn the ignition key to position II
- Reconnect the battery negative lead
- Reinstall the cargo compartment carpet
- Reinstall both floor hatches
- Program the software according to the service information in VADIS.
