Trailer Connector
Trailer Connector

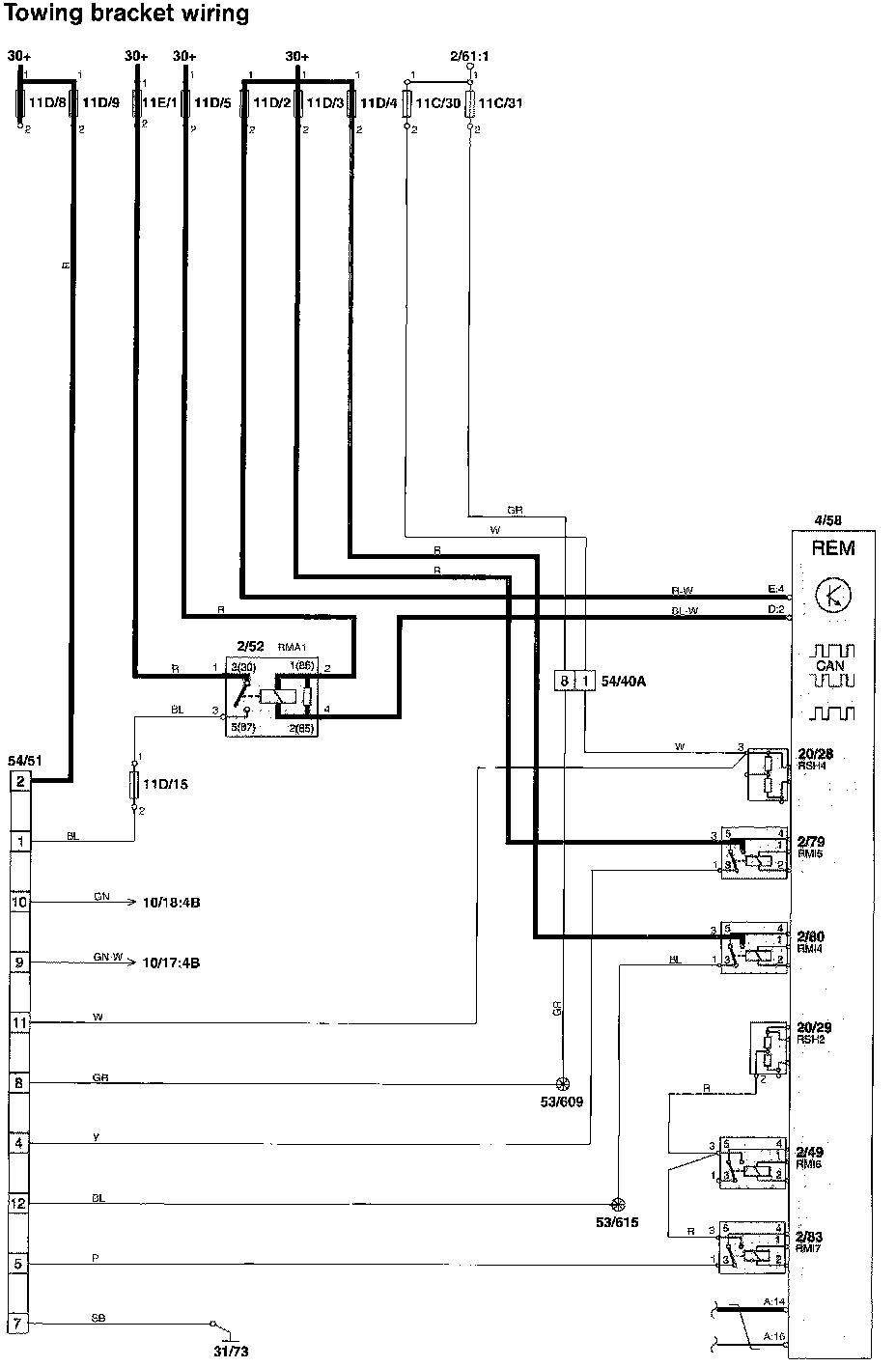

Towing Bracket Wiring
Towing Bracket Wiring:
Diagram Legend
Diagram Legend
