Home >> Volvo >> 2001 >> S60 T5 L5-2.3L Turbo VIN 53 B5234T3 >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Electrical Diagrams >> Beam Length Adjustment

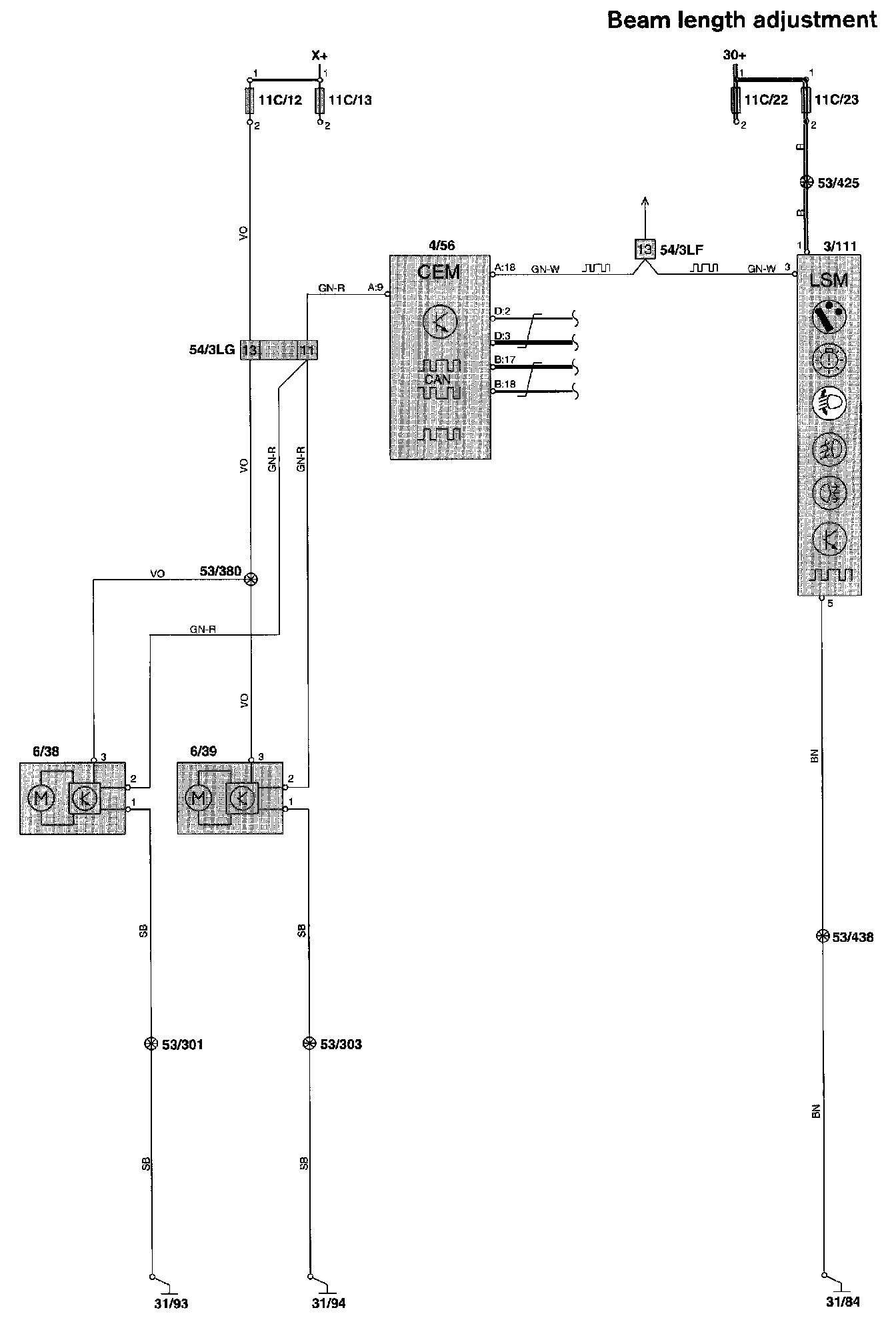

Beam Length Adjustment




Beam Length Adjustment:






Diagram Legend, Diagram Legend
