Operation CHARM
: Car repair manuals for everyone.
Home
>>
Volvo
>>
2001
>>
V40 L4-1.9L Turbo VIN 29 B4204T3
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Headlamp
>>
Beam Adjustment

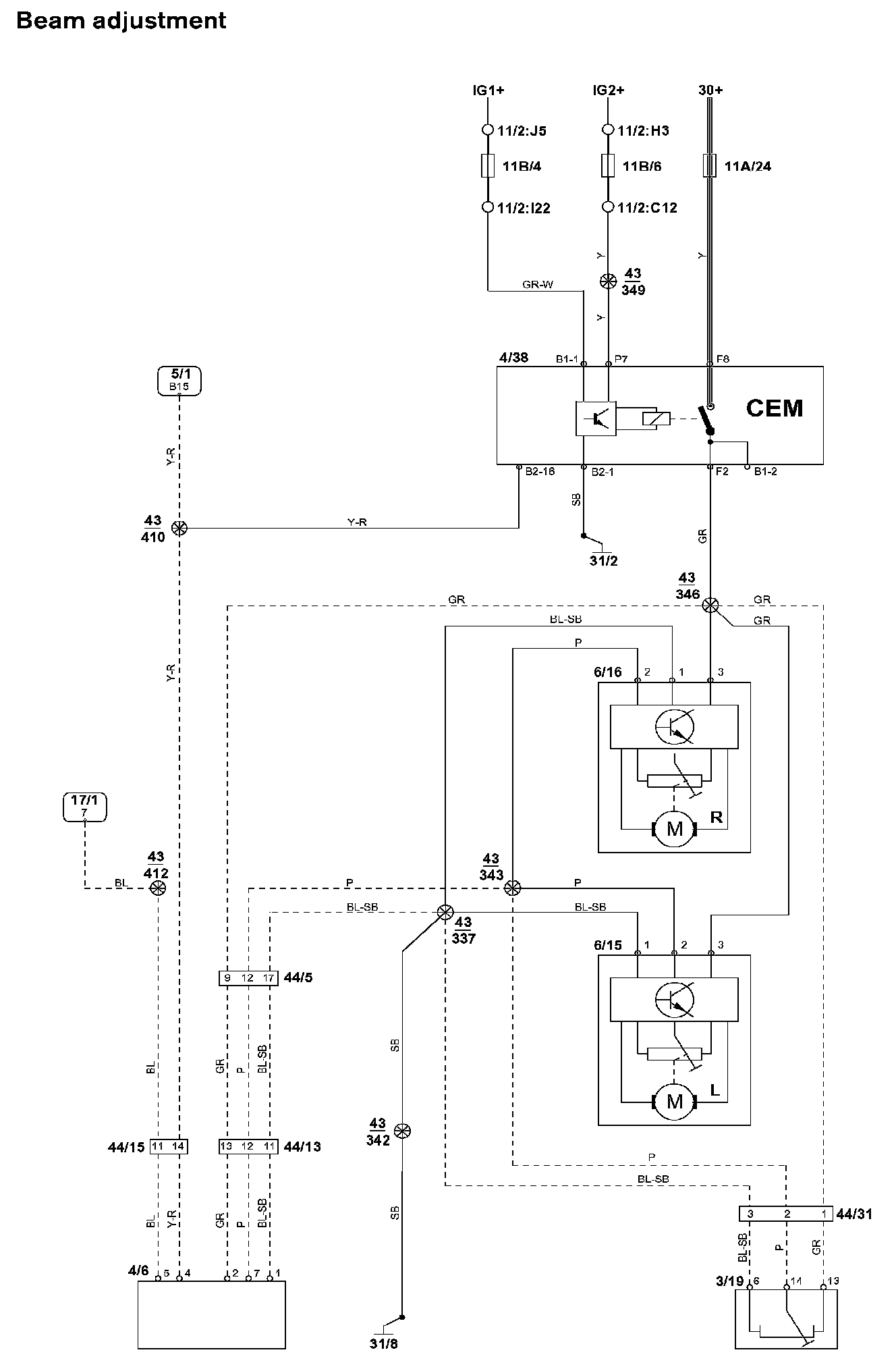

Beam Adjustment
Beam Adjustment:
Diagram Legend
Diagram Legend
