V40 L4-1.9L Turbo VIN 29 B4204T3
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Cigarette Lighter
Cigarette Lighter

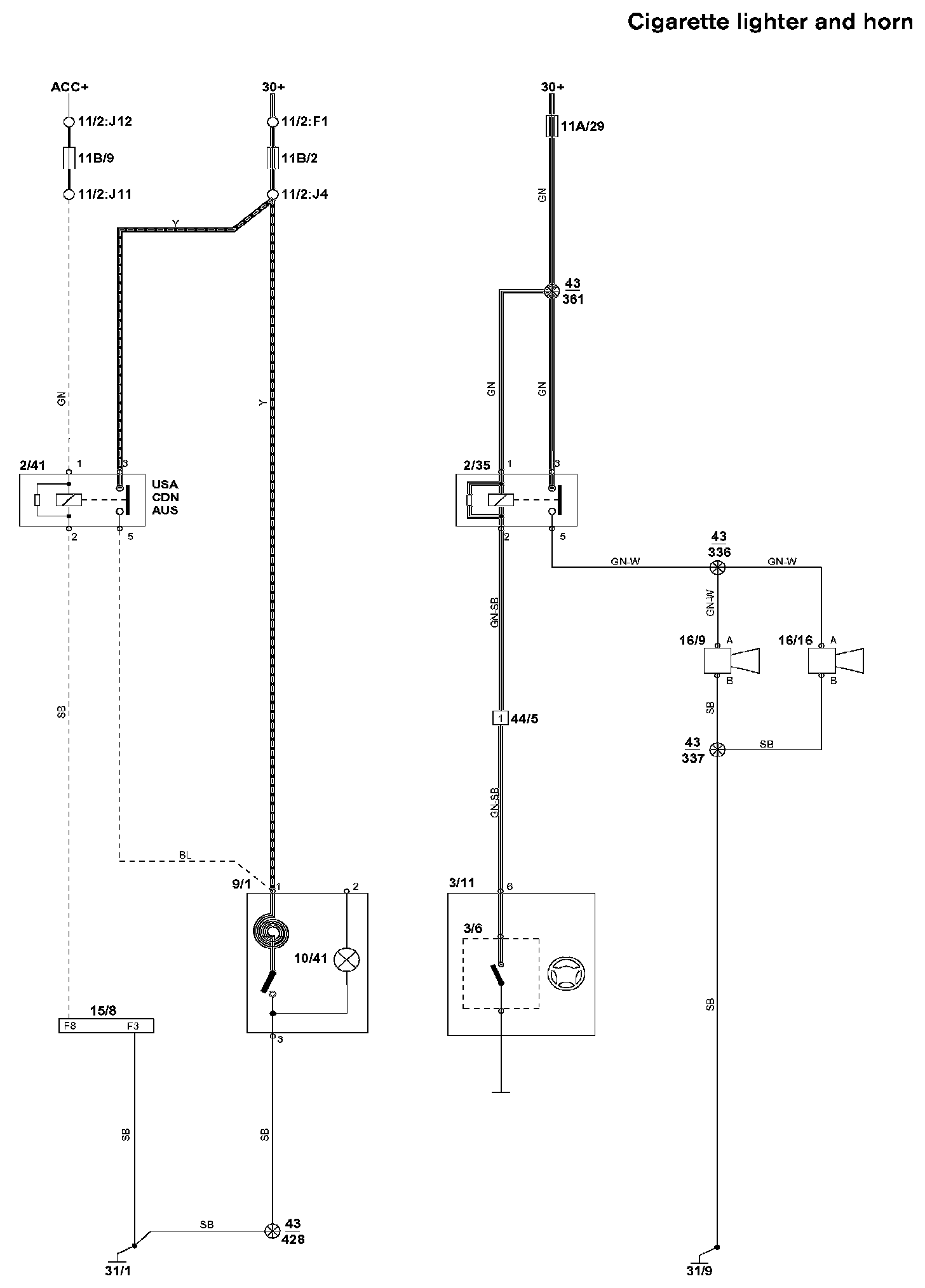

Cigarette Lighter And Horn:
Diagram Legend
Diagram Legend
