Operation CHARM
: Car repair manuals for everyone.
Home
>>
Volvo
>>
2001
>>
V40 L4-1.9L Turbo VIN 29 B4204T3
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
Wiper and Washer Systems

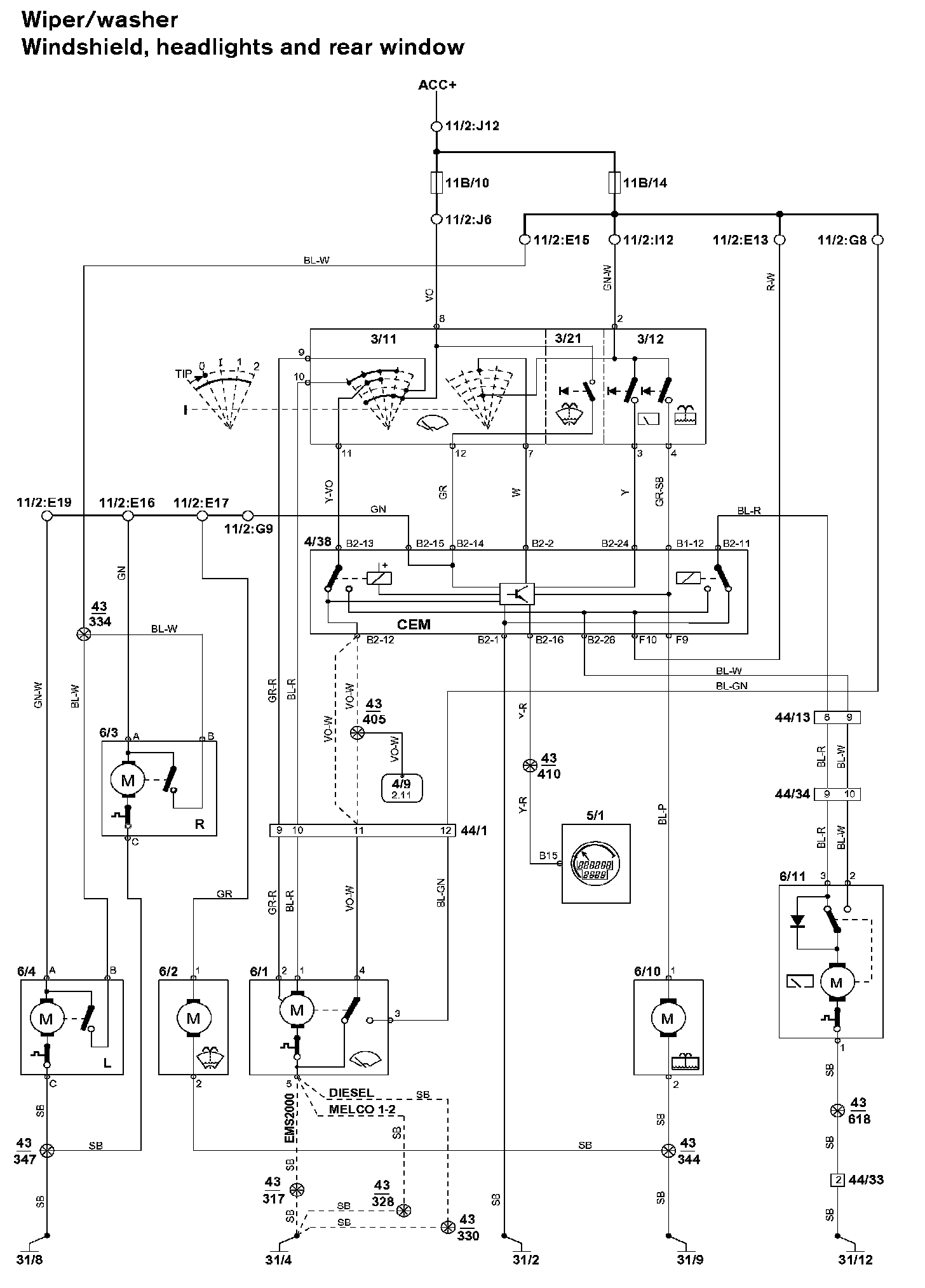

Wiper/washer Windshield, Headlights And Rear Window:
Diagram Legend
Diagram Legend
