Electrical Diagrams

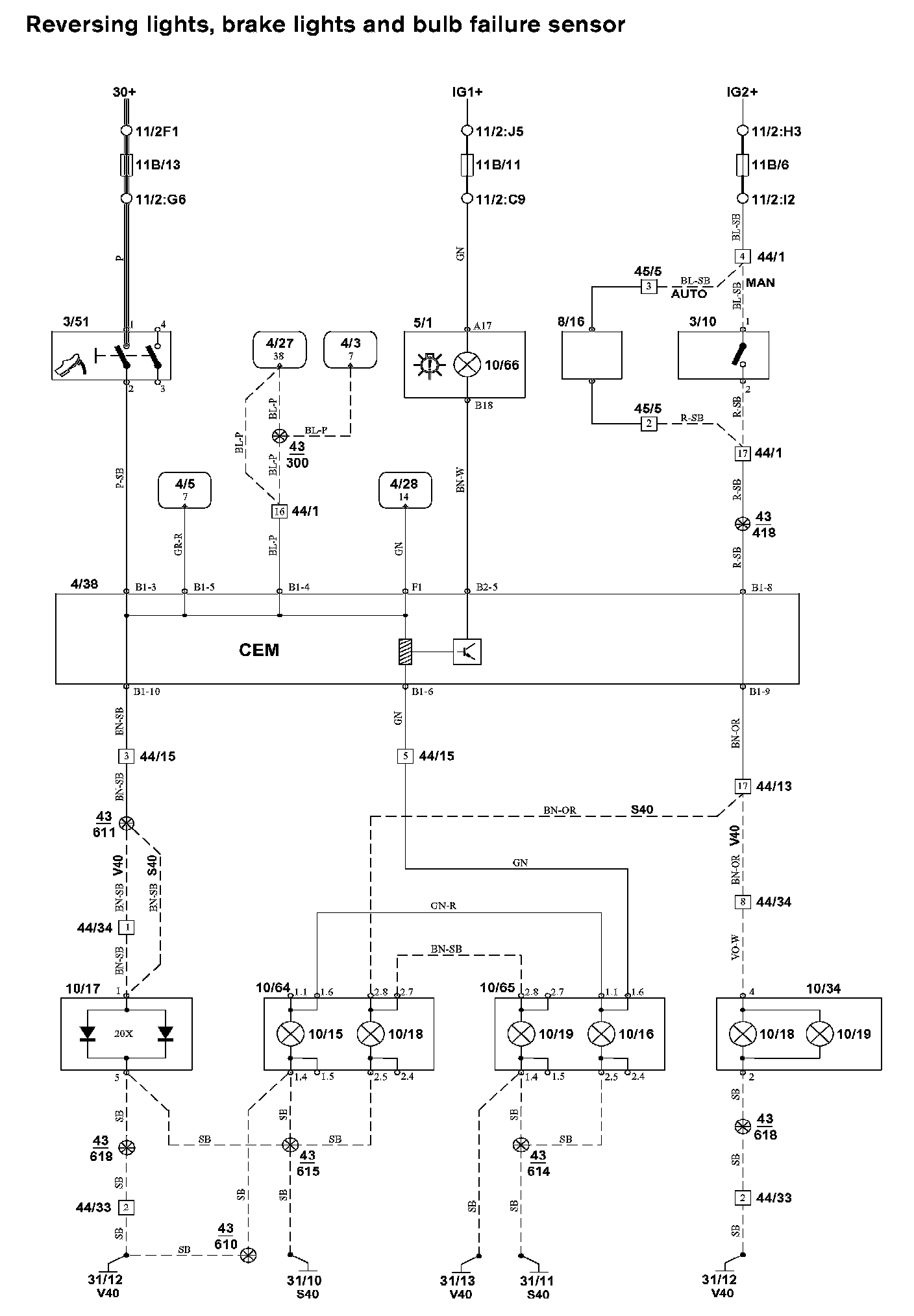

Reversing lights, brake lights and bulb failure sensor


Reversing/brake Lights And Bulb Failure Sensor:






Diagram Legend Diagram Legend
