Electrical Diagrams

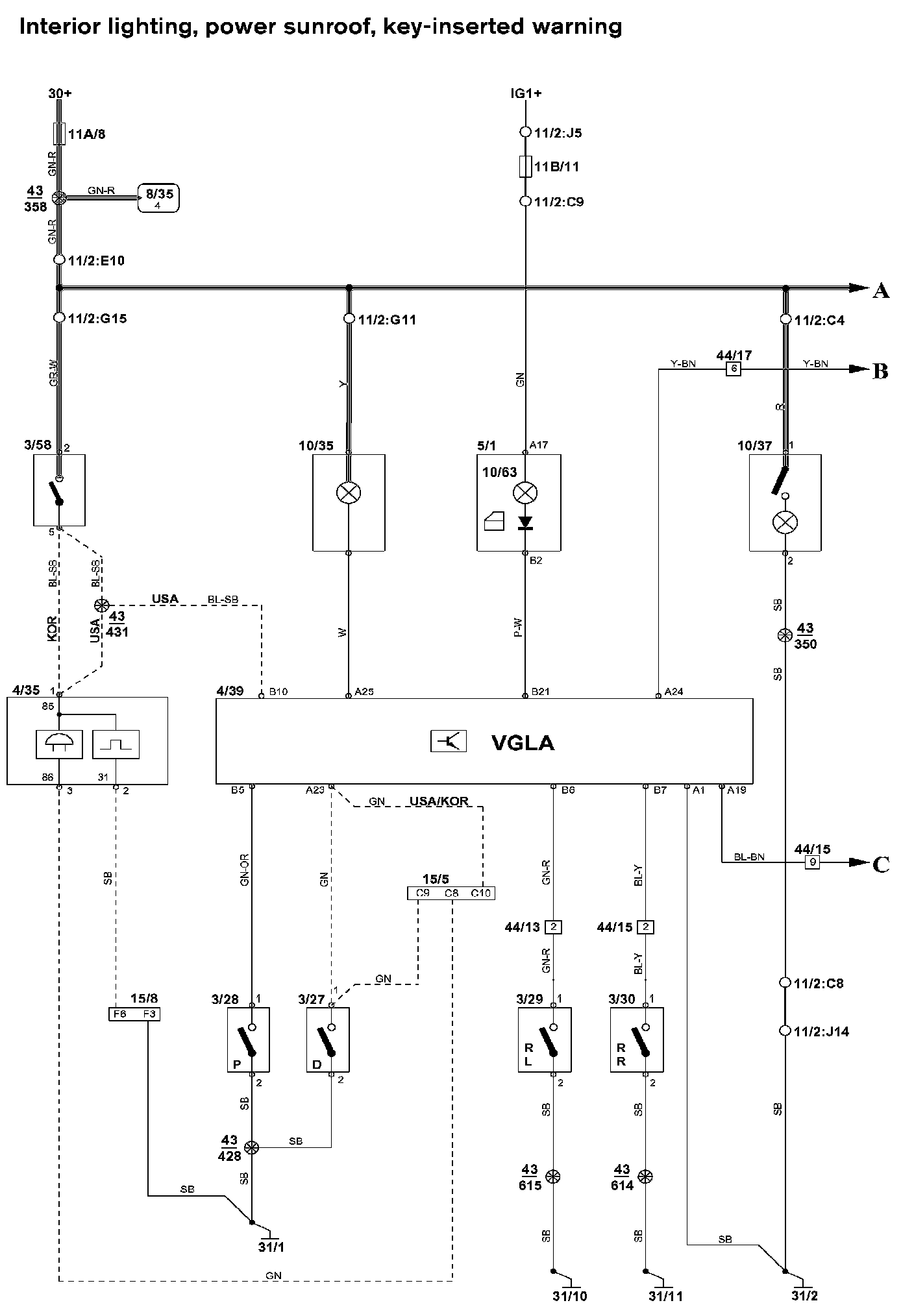

Interior Lighting, Power Sunroof, Key-inserted Warning - Part 1:






Interior Lighting, Power Sunroof, Key-inserted Warning - Part 2:






Diagram Legend Diagram Legend
