Relay Box: Locations

Engine Compartment Fuses:

Fuses 11A/1-32:

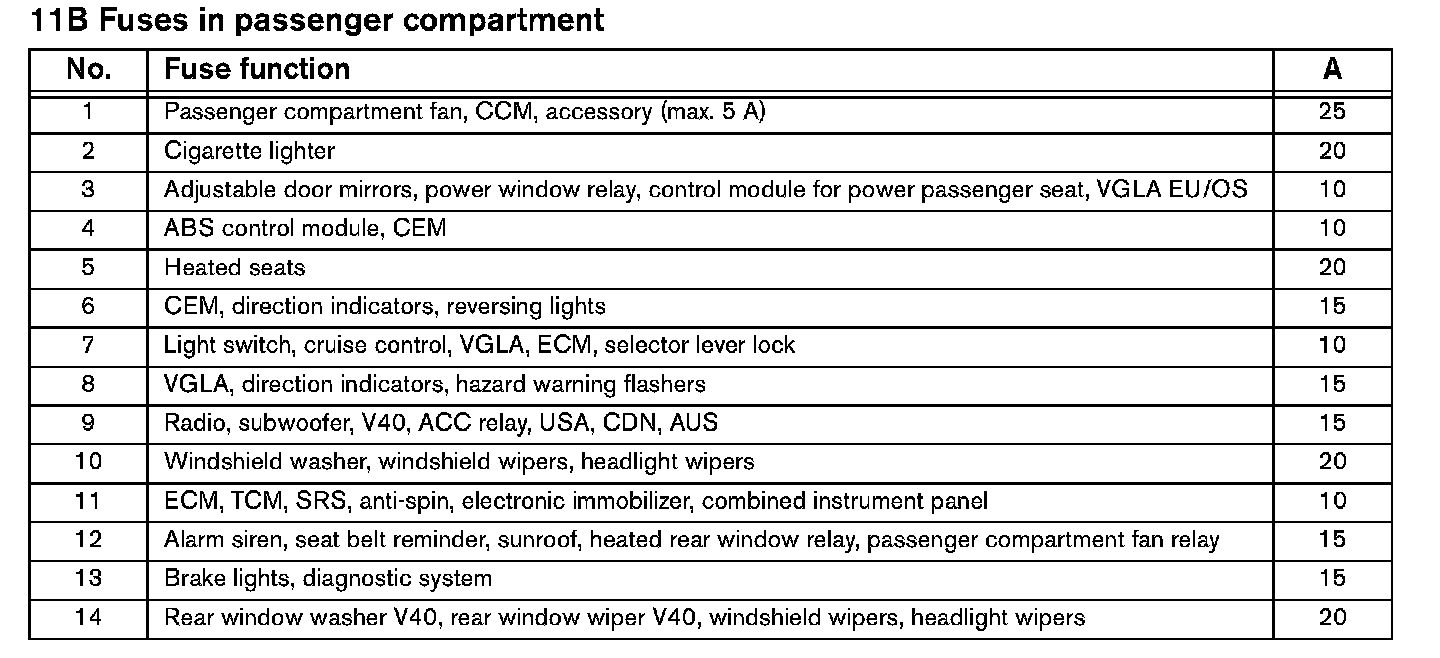

Passenger Compartment Fuses:

Fuses 11B/1-14:

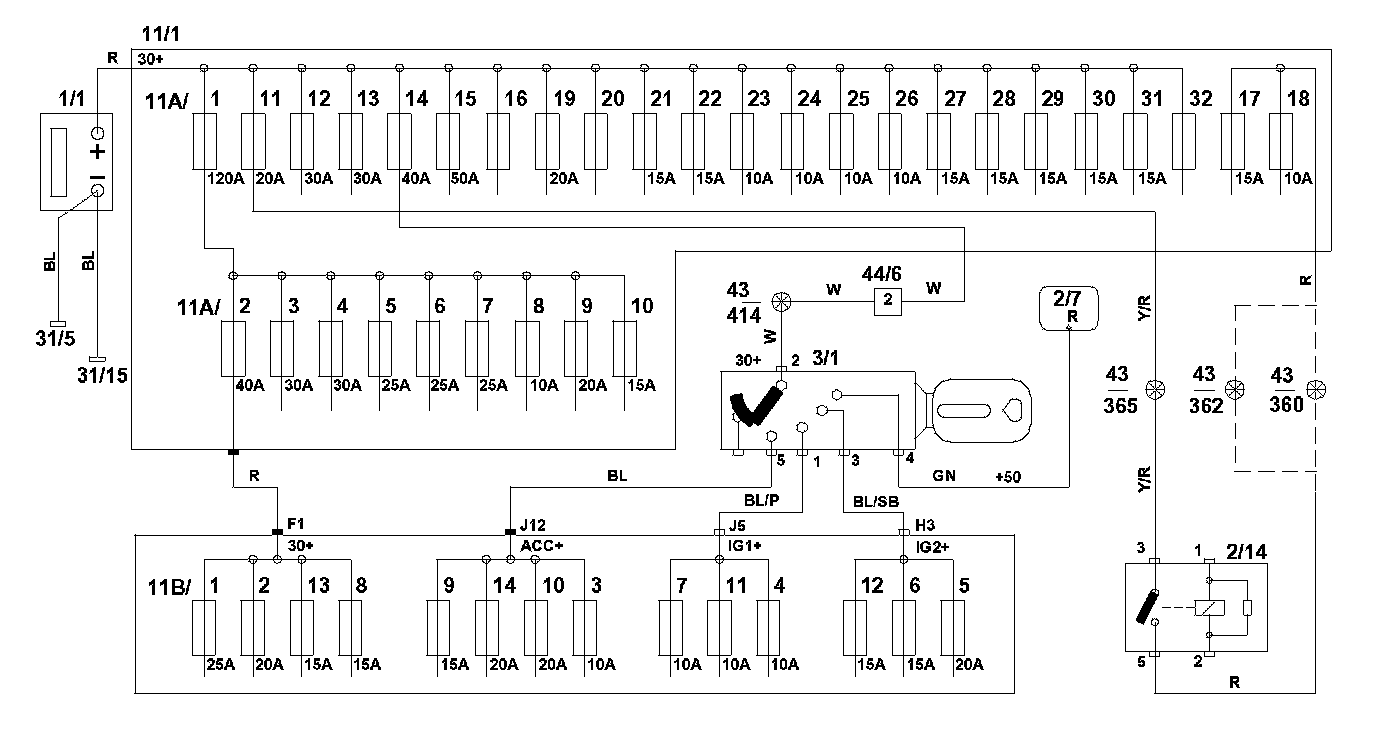

Fuse Box Schematic:

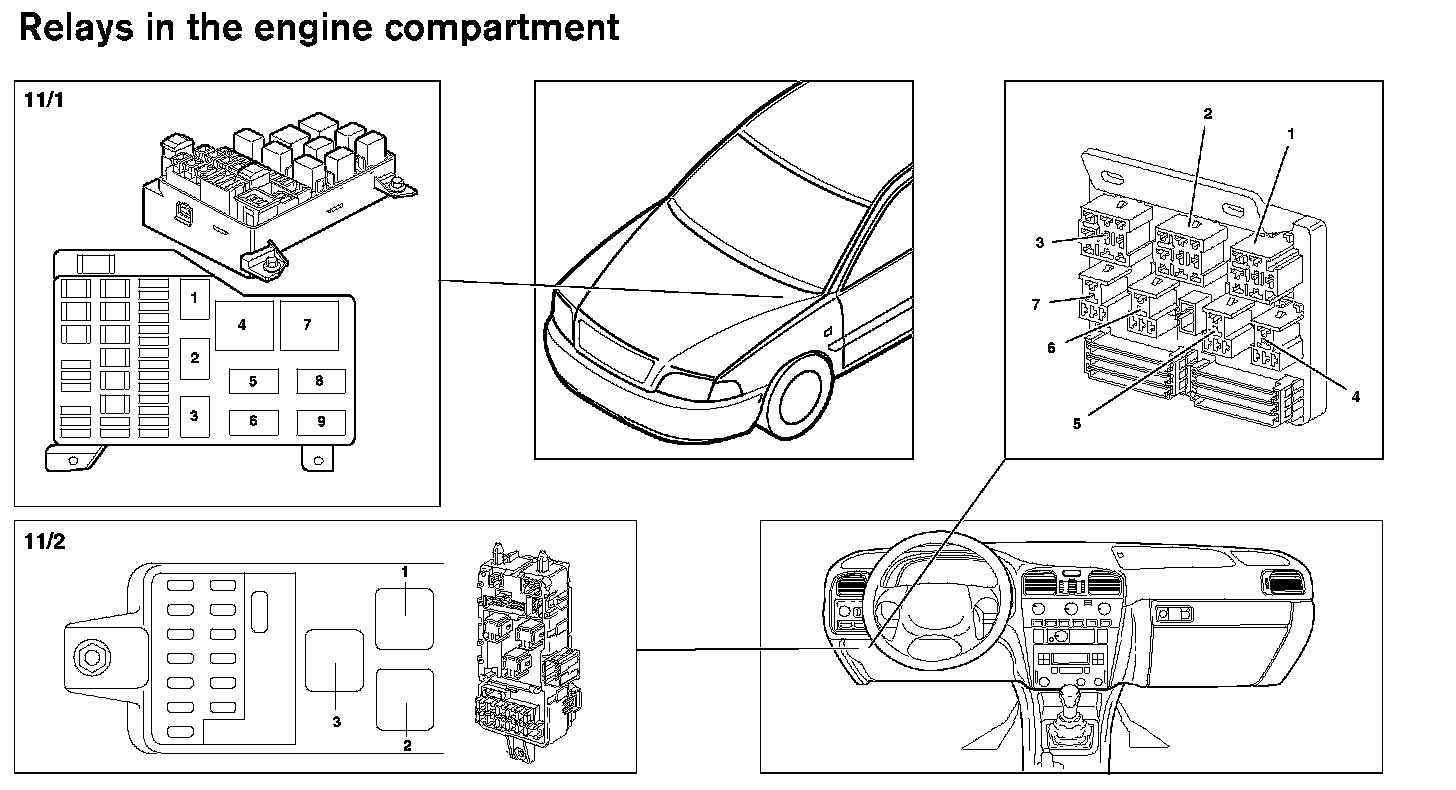

Engine Compartment Relays:

Relay 1-9 In Engine Compartment:

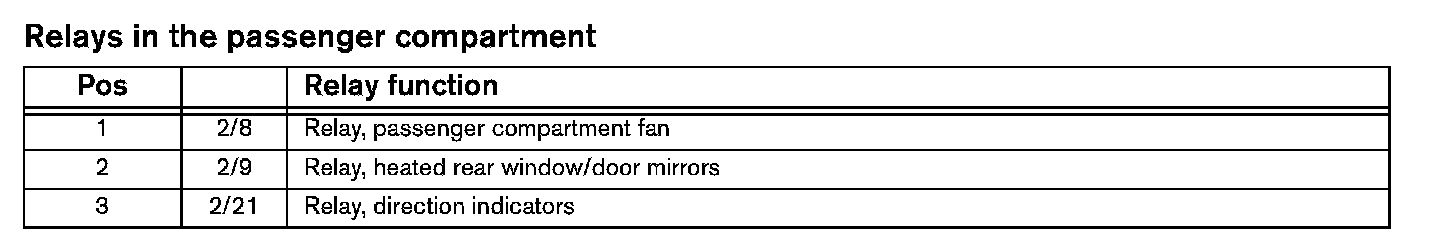

Relay 1-3 In Passenger Compartment:

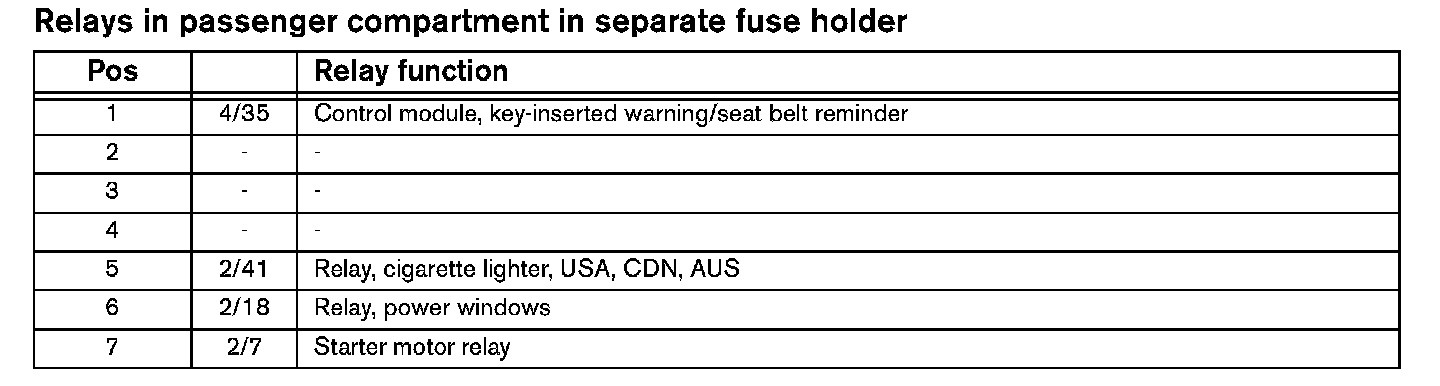

Relays 1-7 In Passenger Compartment In Separate Fuse Holder:

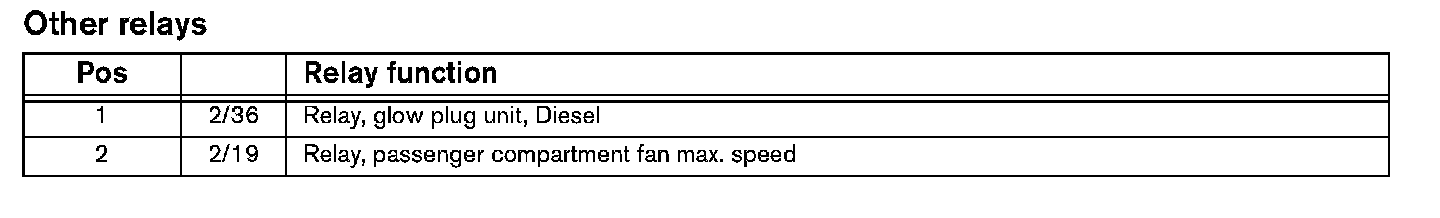

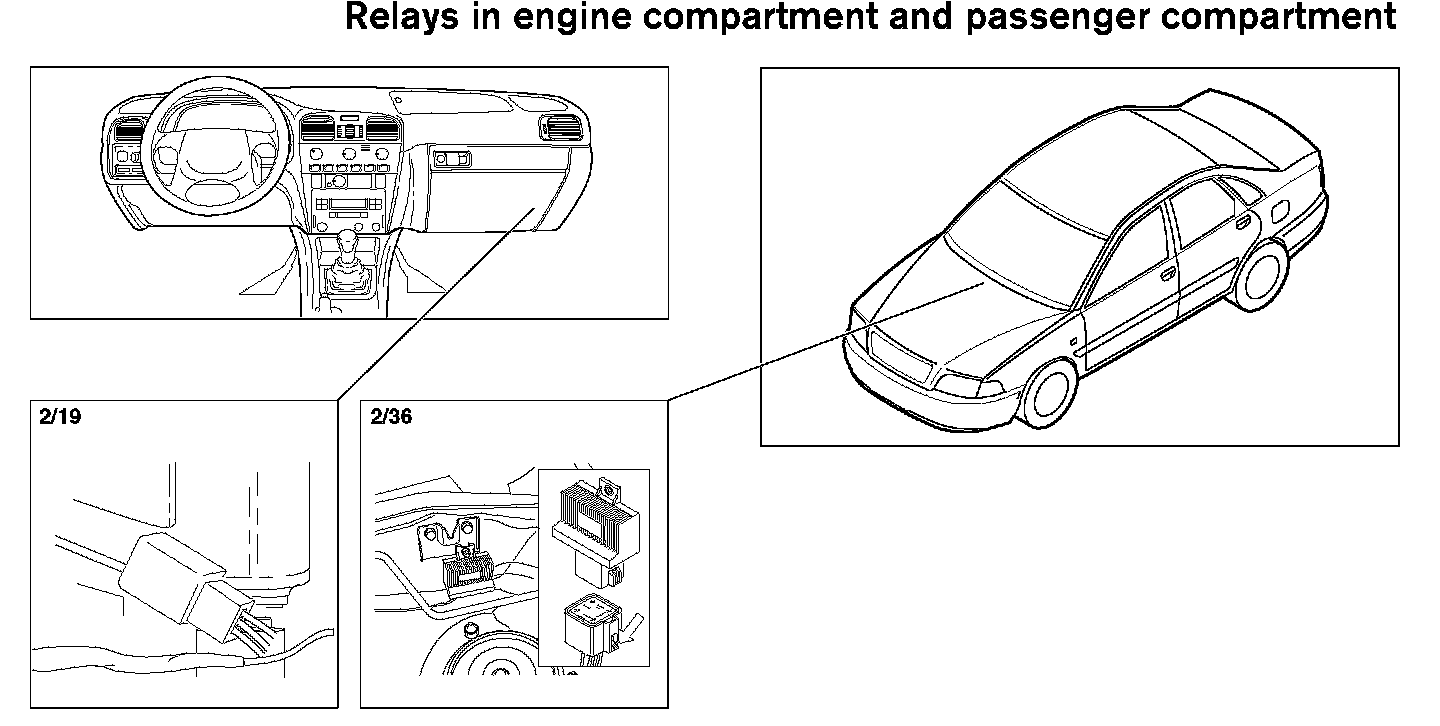

Other Relays:

Other Relays 1-2:
