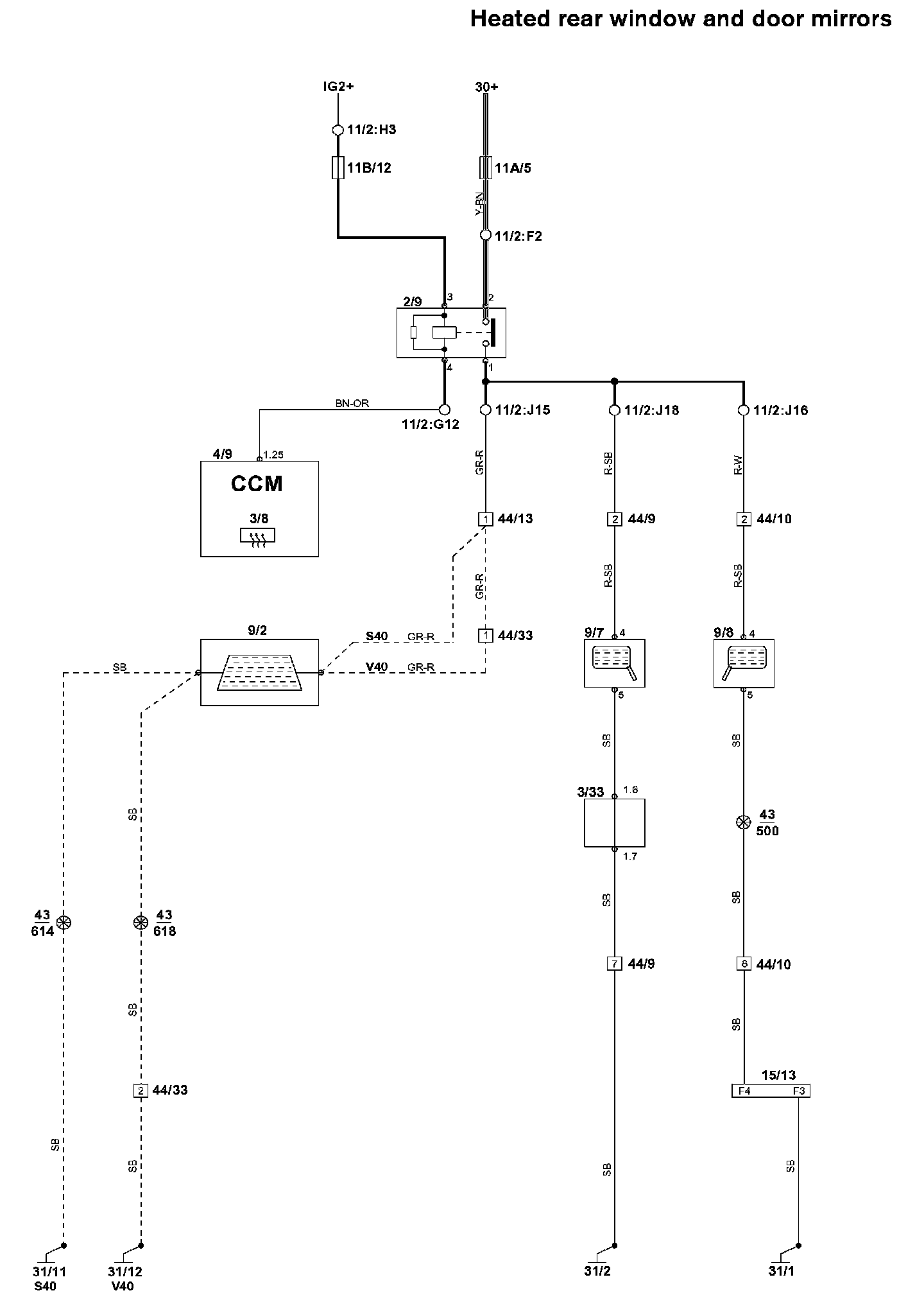

Heated Rear Window and Door Mirrors
Heated Rear Window And Door Mirrors:
Diagram Legend
Diagram Legend
