Location of Components For Brake Electronics

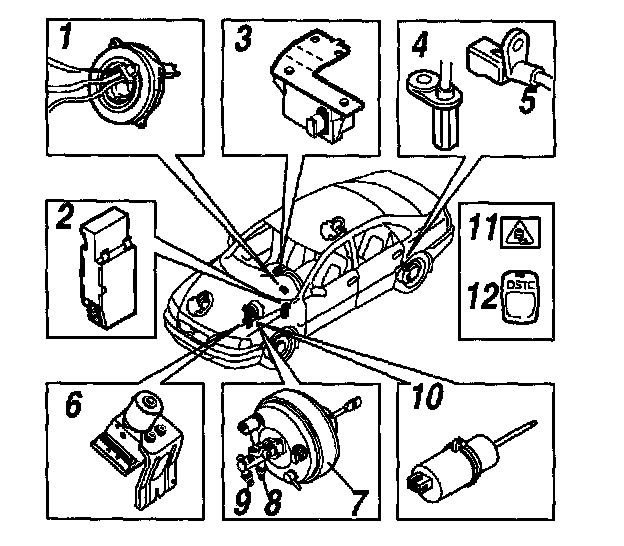

Location of components for brake electronics

Note: In week 35 year 2001 a new brake control module is being introduced along with a new sensor in the brake electronics.





- Contact reel / steering wheel angle sensor (Applies only to cars with DSTC (dynamic stability and traction control))
- Control module for the steering wheel angle sensor (Applies only to cars with DSTC (dynamic stability and traction control))
- Active yaw control sensor (Applies only to cars with DSTC (dynamic stability and traction control))
- Front wheel sensor
- Rear wheel sensor
- ABS modulator with control module
- Power brake booster
- Pressure sensor, primary cable
- Pressure sensor, secondary cable
- Pedal position sensor
- Warning lamp
- Switch.
