Operation CHARM: Car repair manuals for everyone.
Home >> Volvo >> 2001 >> V70 2.4T L5-2.4L Turbo VIN 58 B5244T3 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Cigarette Lighter

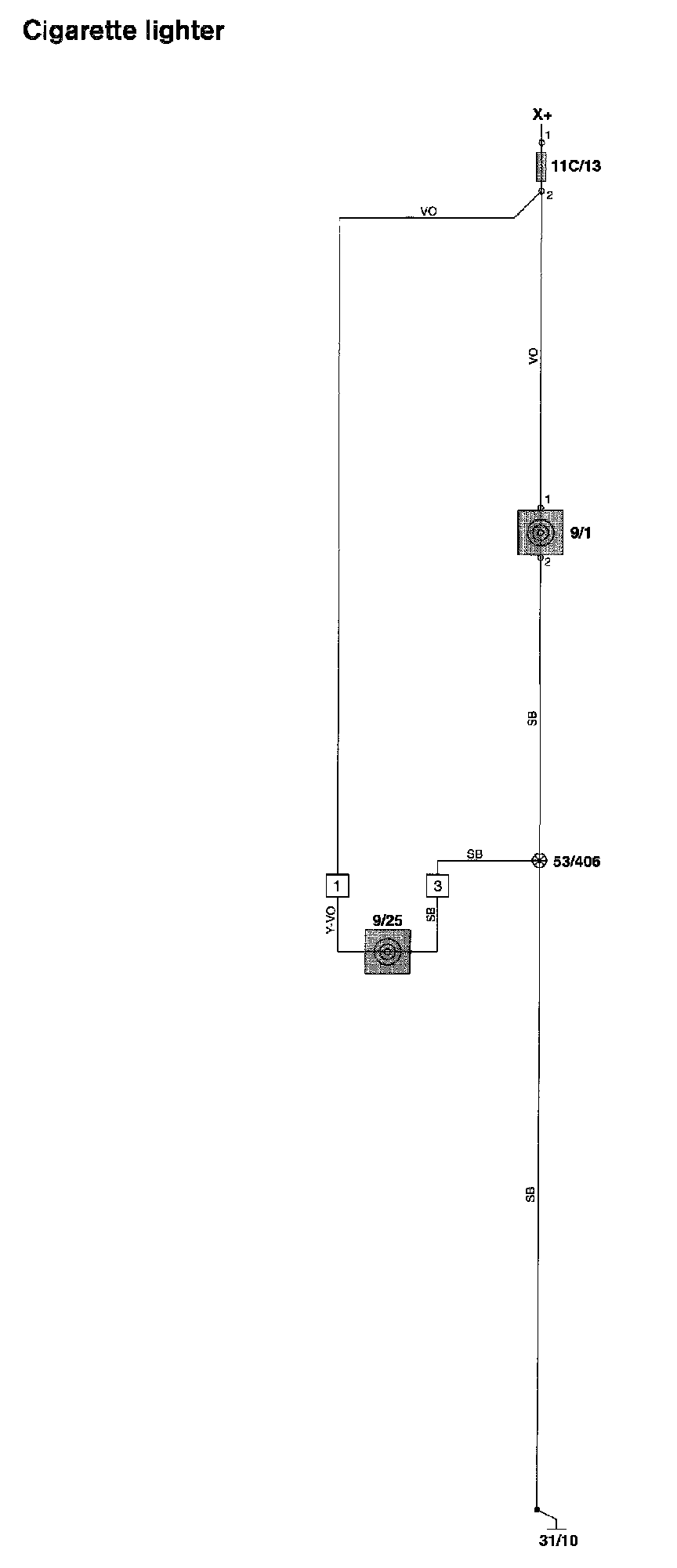

Cigarette Lighter




Cigarette Lighter:






Diagram Legend Diagram Legend
