Antilock Brakes / Traction Control Systems
>>
ABS and DSTC

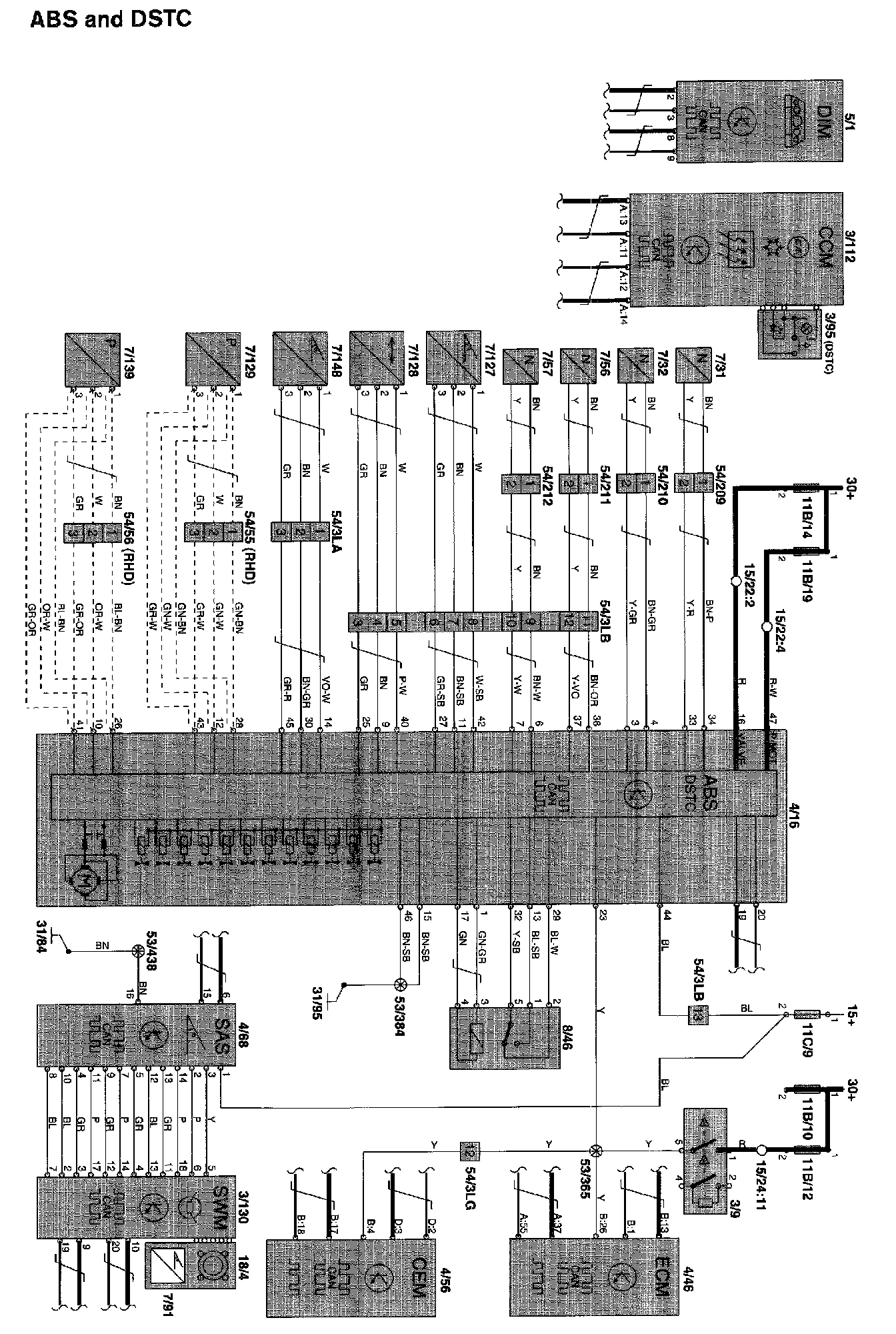

ABS and DSTC
ABS And DSTC:
Diagram Legend
Diagram Legend
