Electronic Starter Lock (Immobilizer)

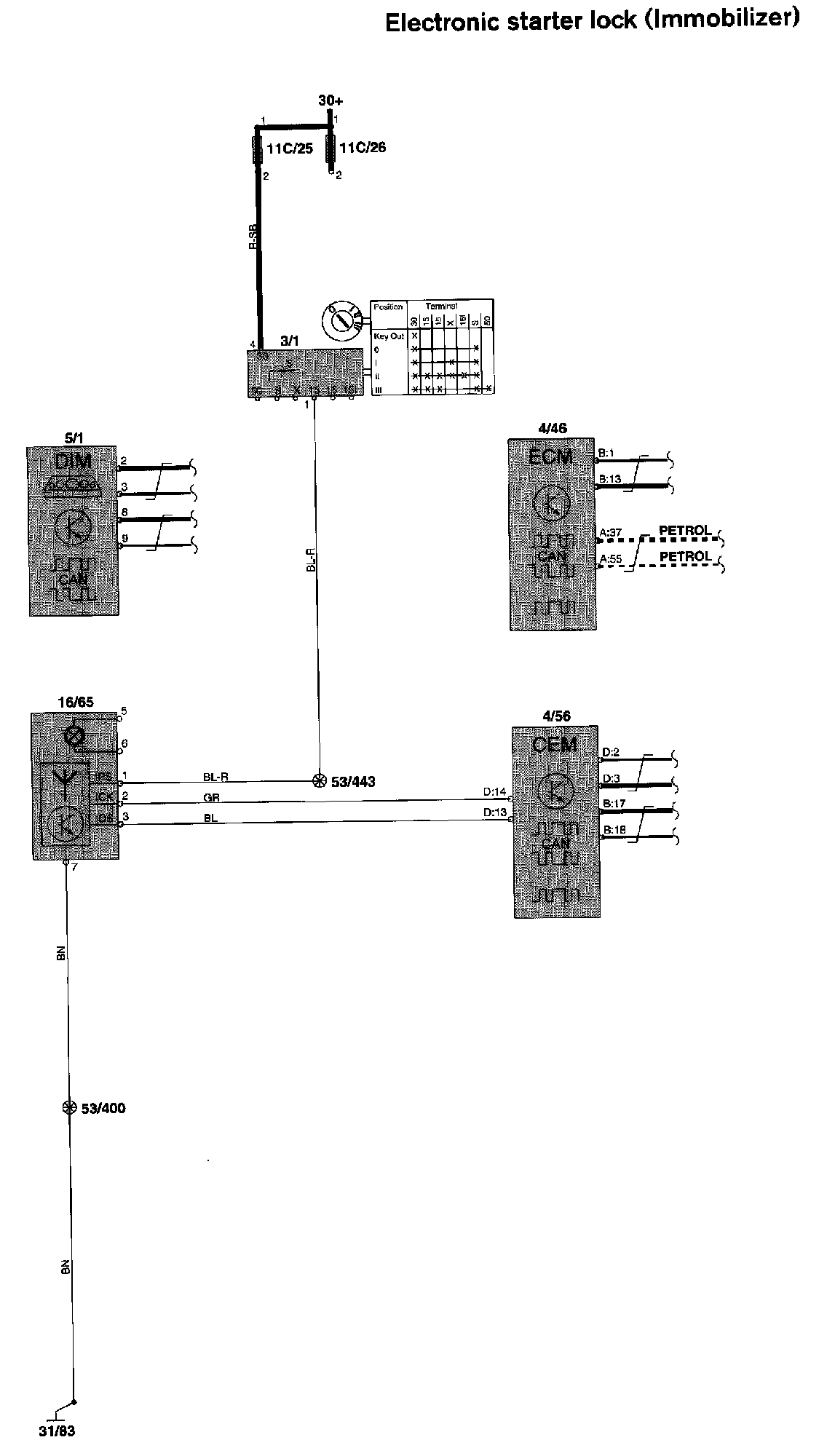

Electronic Starter Lock (Immobilizer):






Diagram Legend Diagram Legend
