Home
>>
Volvo
>>
2001
>>
V70 XC AWD L5-2.4L Turbo VIN 58 B5244T3
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Hazard Warning Lamps
>>
Safety Lighting

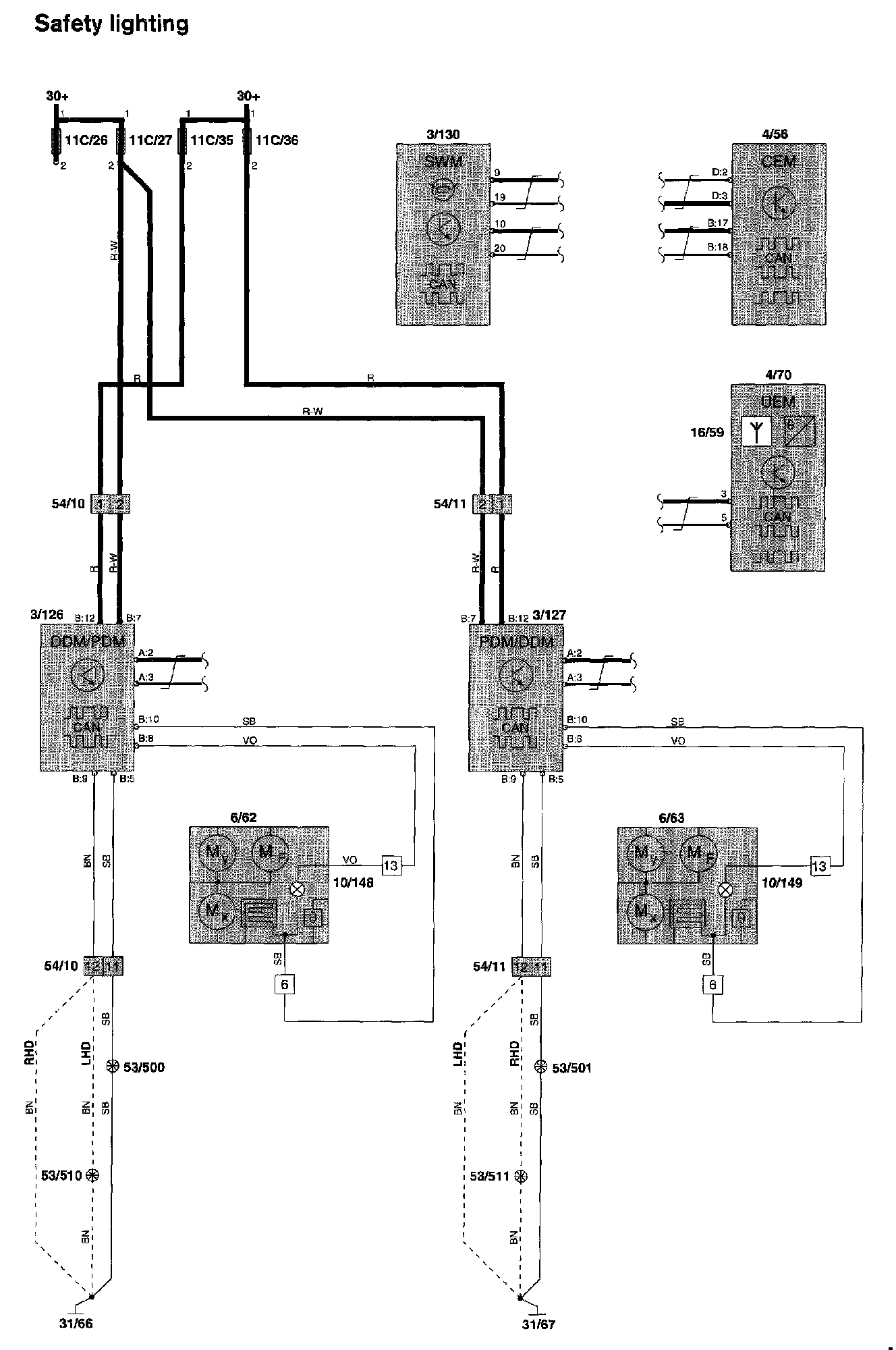

Safety Lighting
Safety Lighting:
Diagram Legend
Diagram Legend
