Operation CHARM
: Car repair manuals for everyone.
Home
>>
Volvo
>>
2001
>>
V70 XC AWD L5-2.4L Turbo VIN 58 B5244T3
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>
Heated Door Mirrors

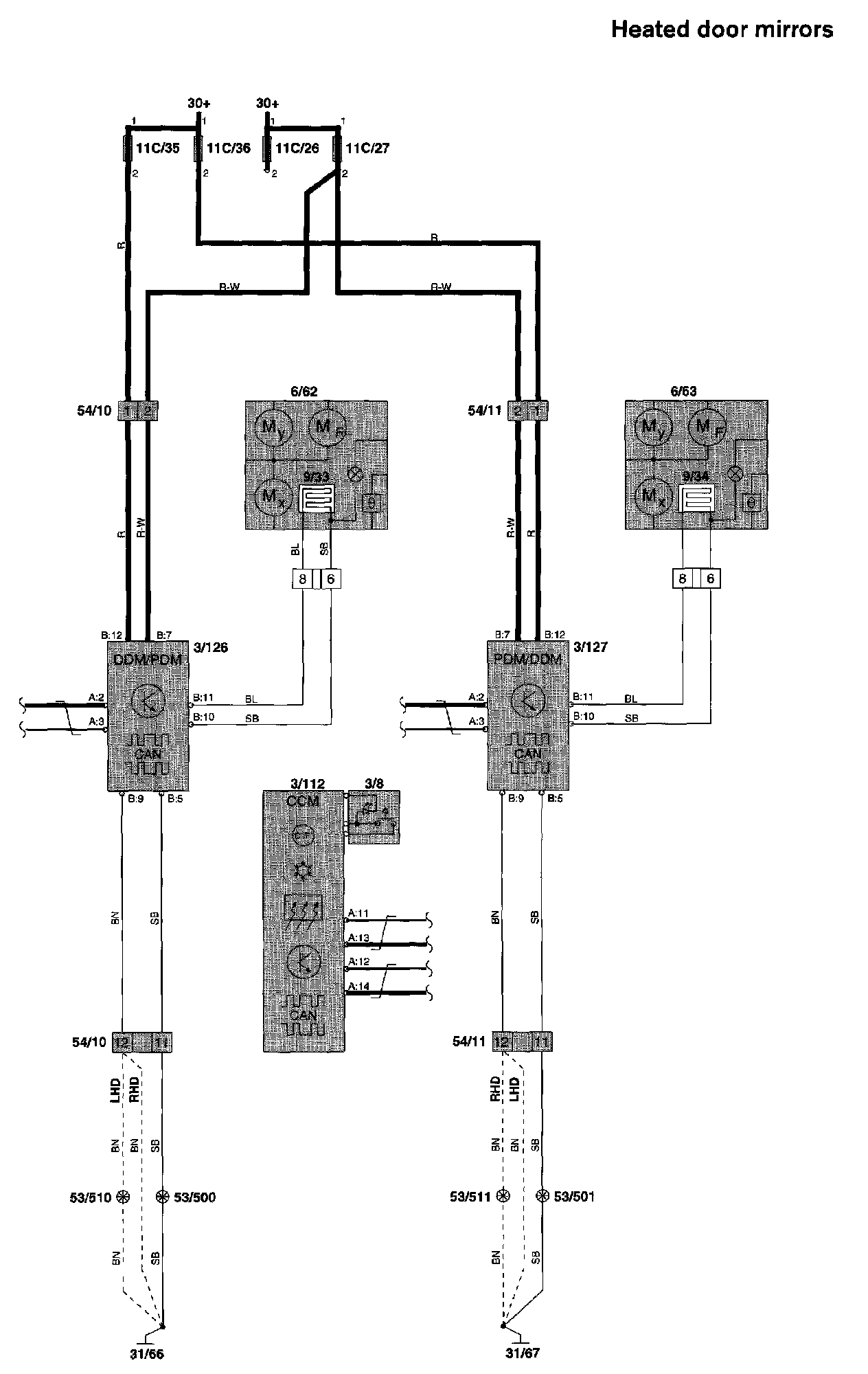

Heated Door Mirrors
Heated Door Mirrors:
Diagram Legend
Diagram Legend
