Home >> Volvo >> 2001 >> V70 XC AWD L5-2.4L Turbo VIN 58 B5244T3 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> Radio Without Extra Amplifier

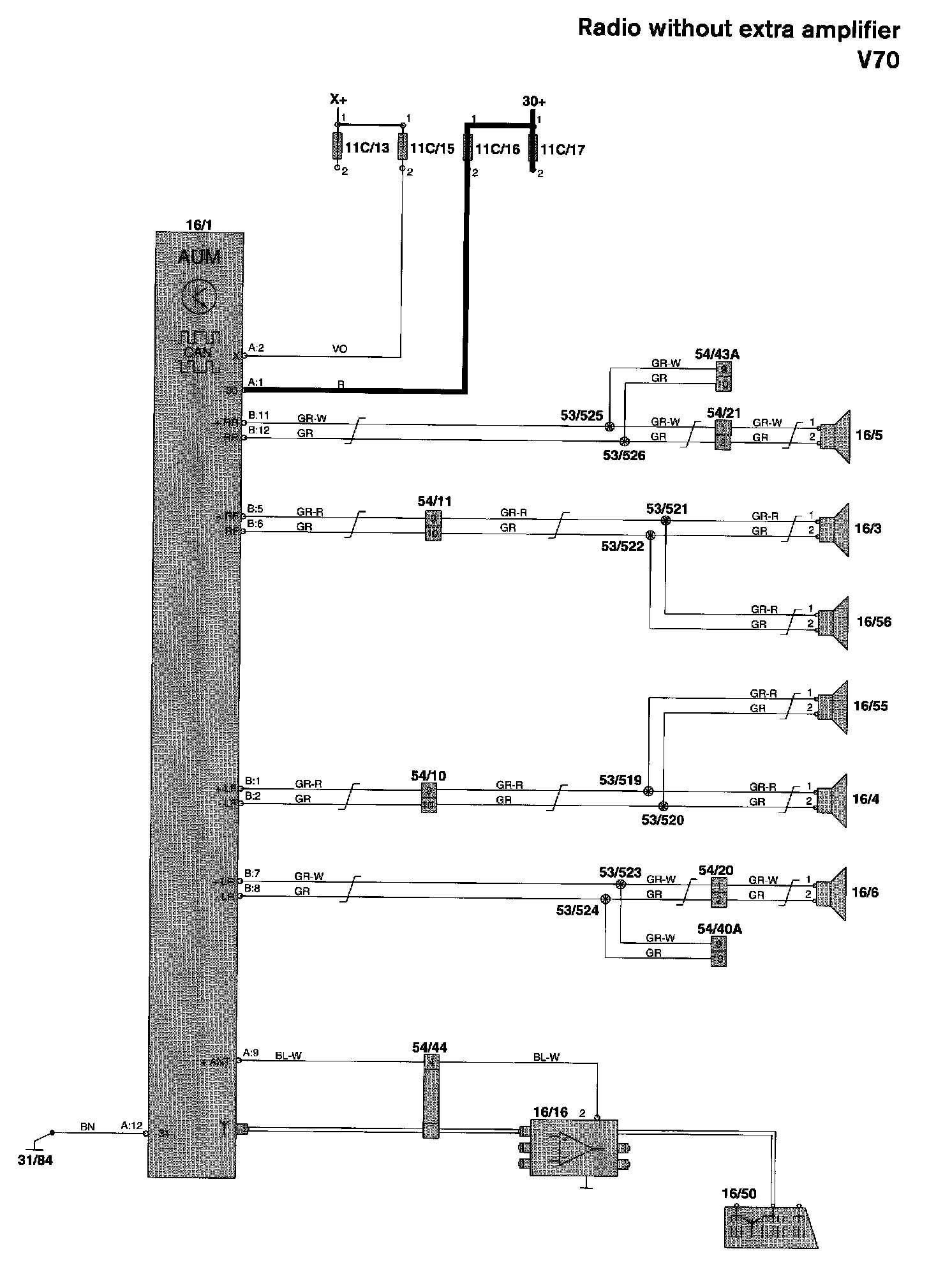

Radio Without Extra Amplifier




Radio Without Extra Amplifier:






Diagram Legend Diagram Legend
