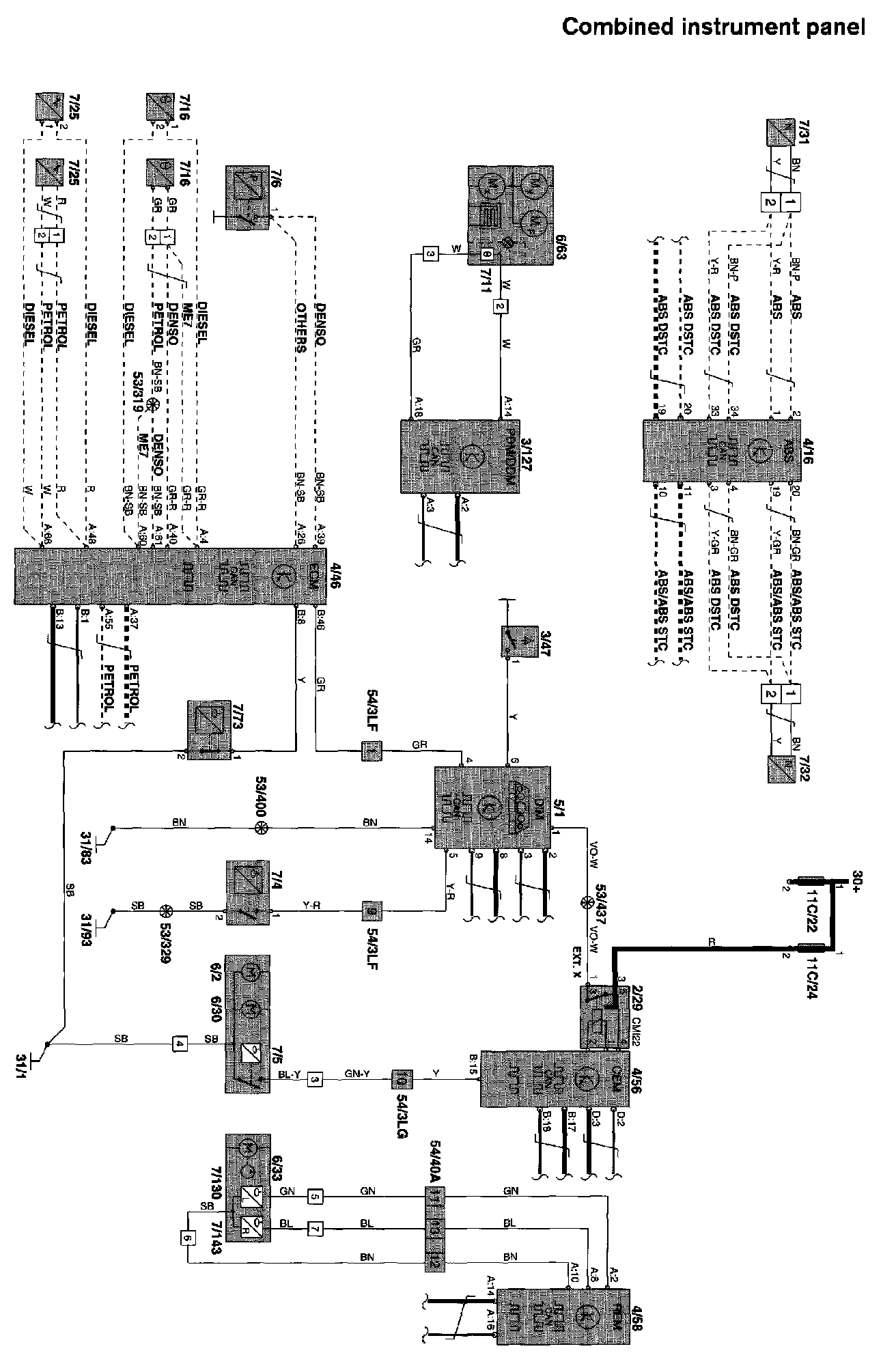

Combined Instrument Panel
Combined Instrument Panel
Combined Instrument Panel:
Diagram Legend
Diagram Legend
