Brake Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

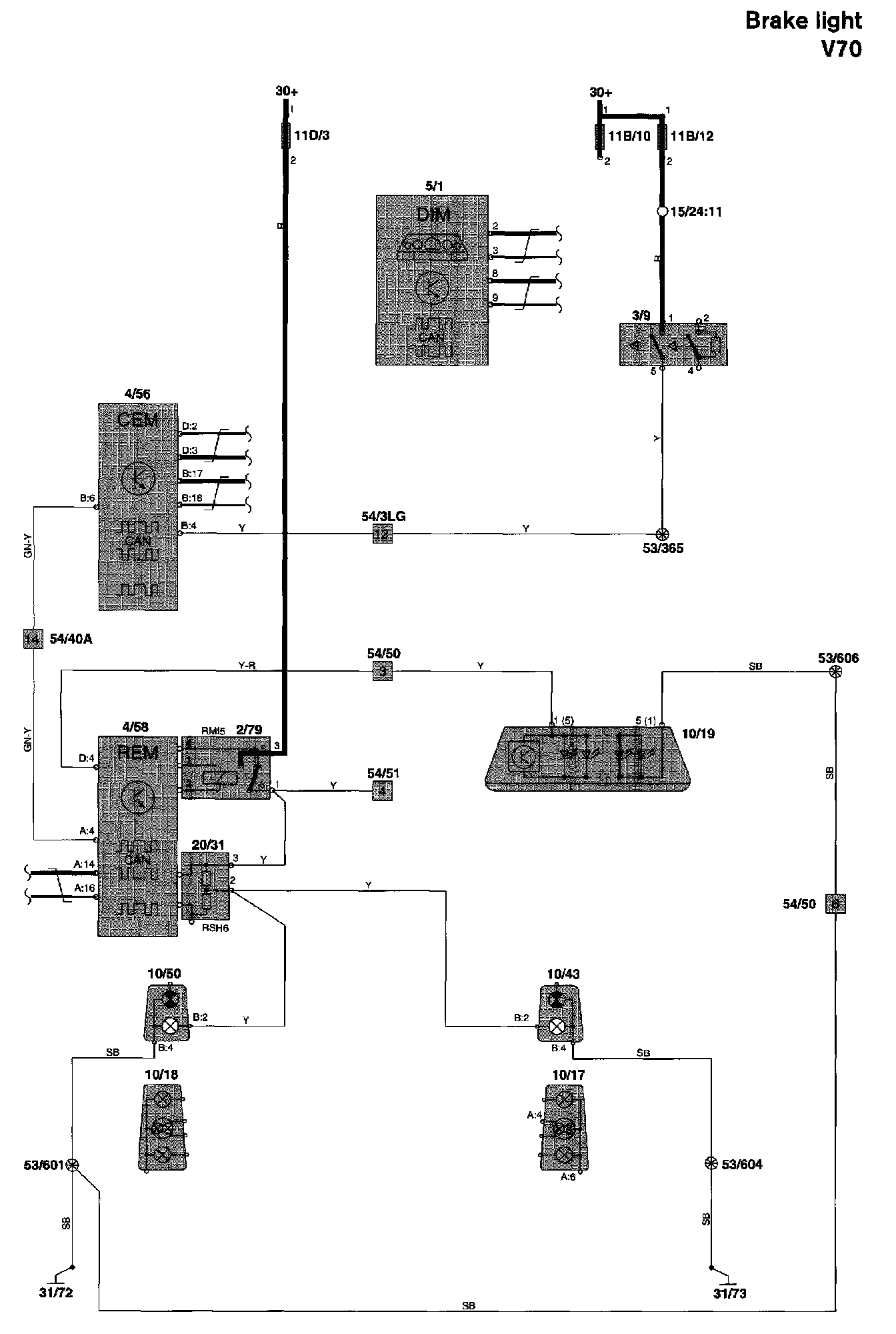

Brake Light:
Diagram Legend
Diagram Legend
