Volvo
>>
2001
>>
V70 XC AWD L5-2.4L Turbo VIN 58 B5244T3
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Horn
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

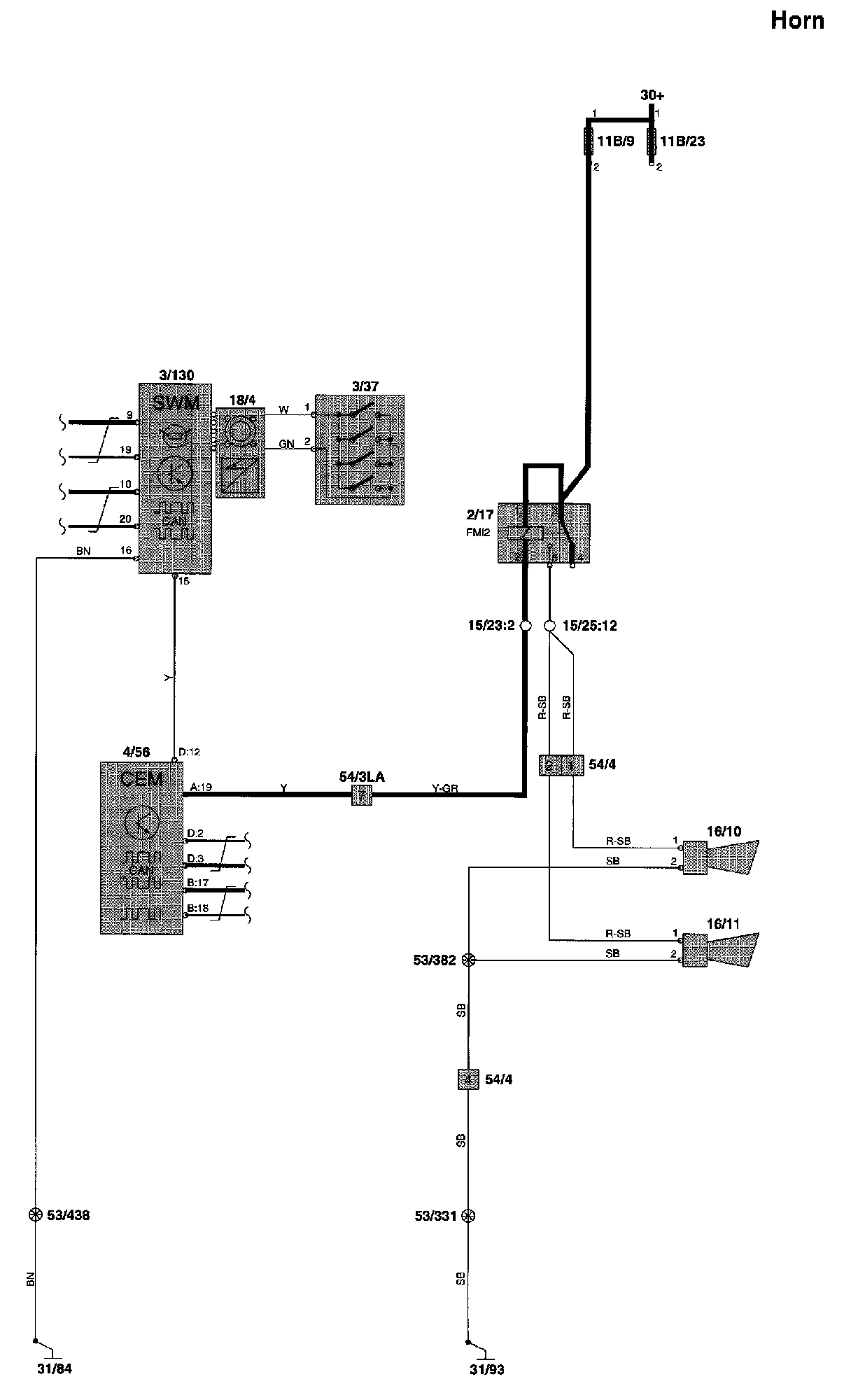

Horn:
Diagram Legend
Diagram Legend
