Electrical Diagrams

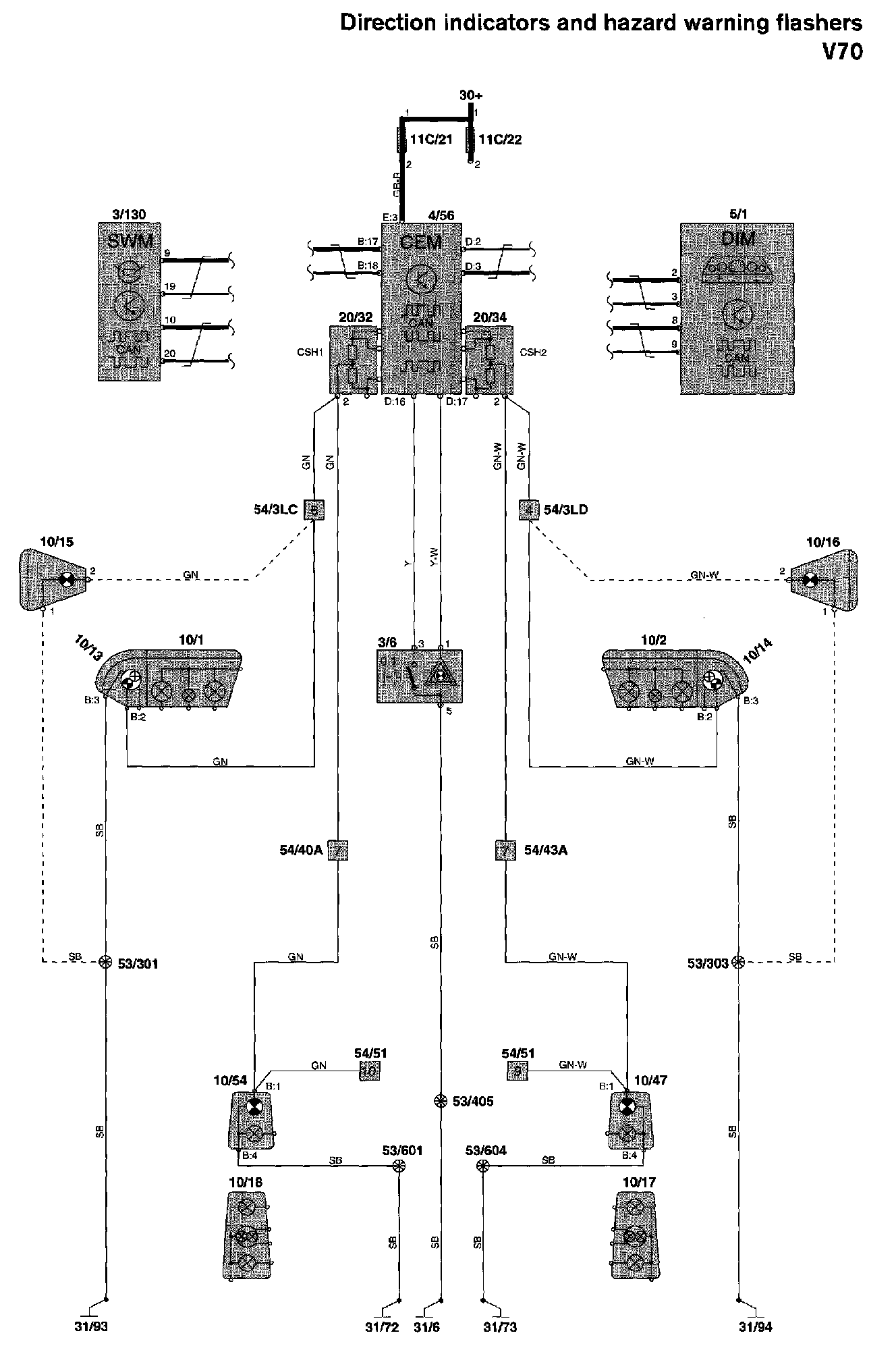

Direction Indicators And Hazard Warning Flashers:






Diagram Legend Diagram Legend
