Wipers/Washers, Windshield
Wipers/Washers, Windshield

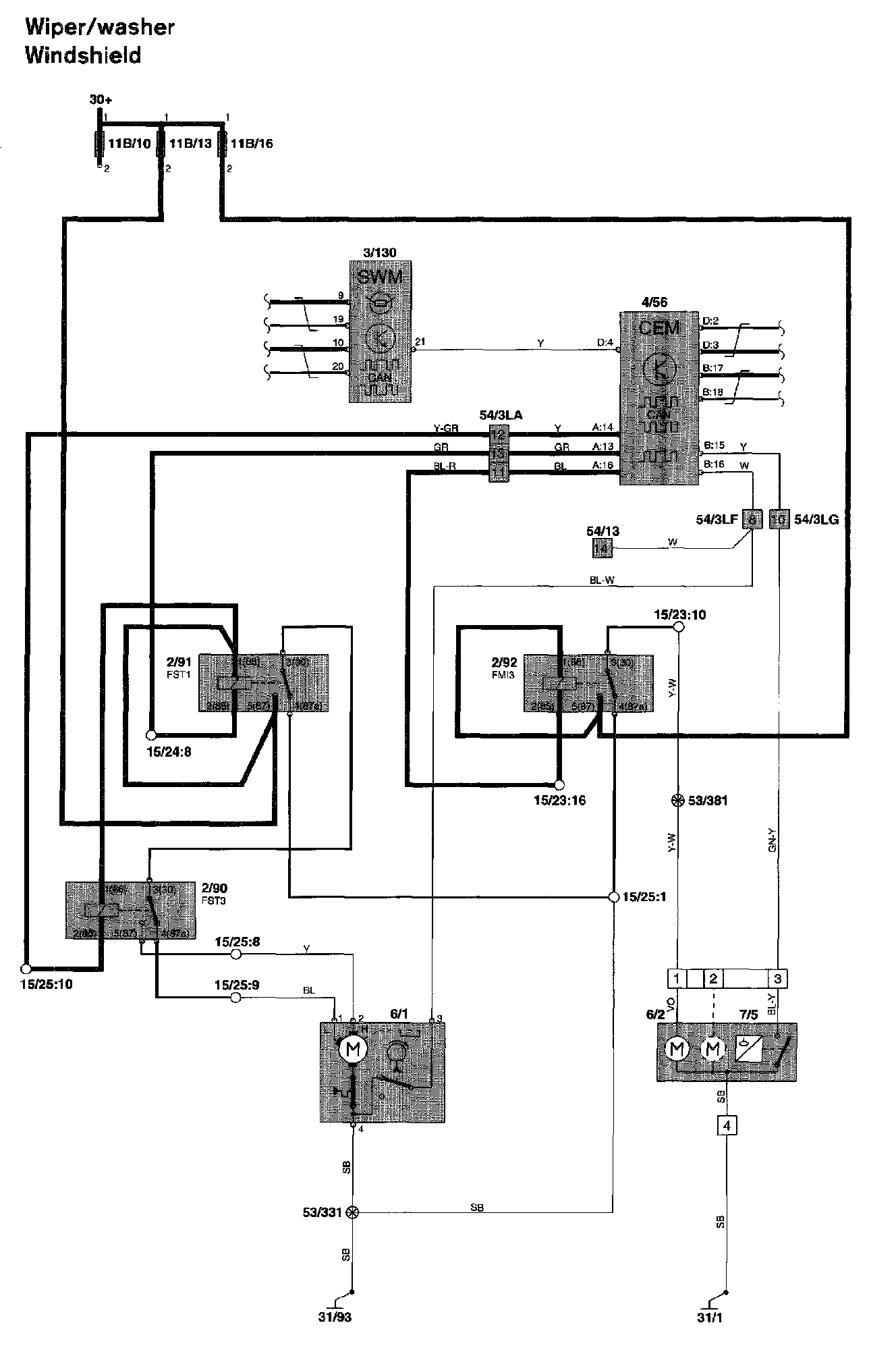

Wiper/washer Windshield:
Diagram Legend
Diagram Legend
