Procedures

Replacing The Antenna

Preparations
- Ignition off.
- Remove the panels in the cargo compartment on the side where the antenna is positioned.

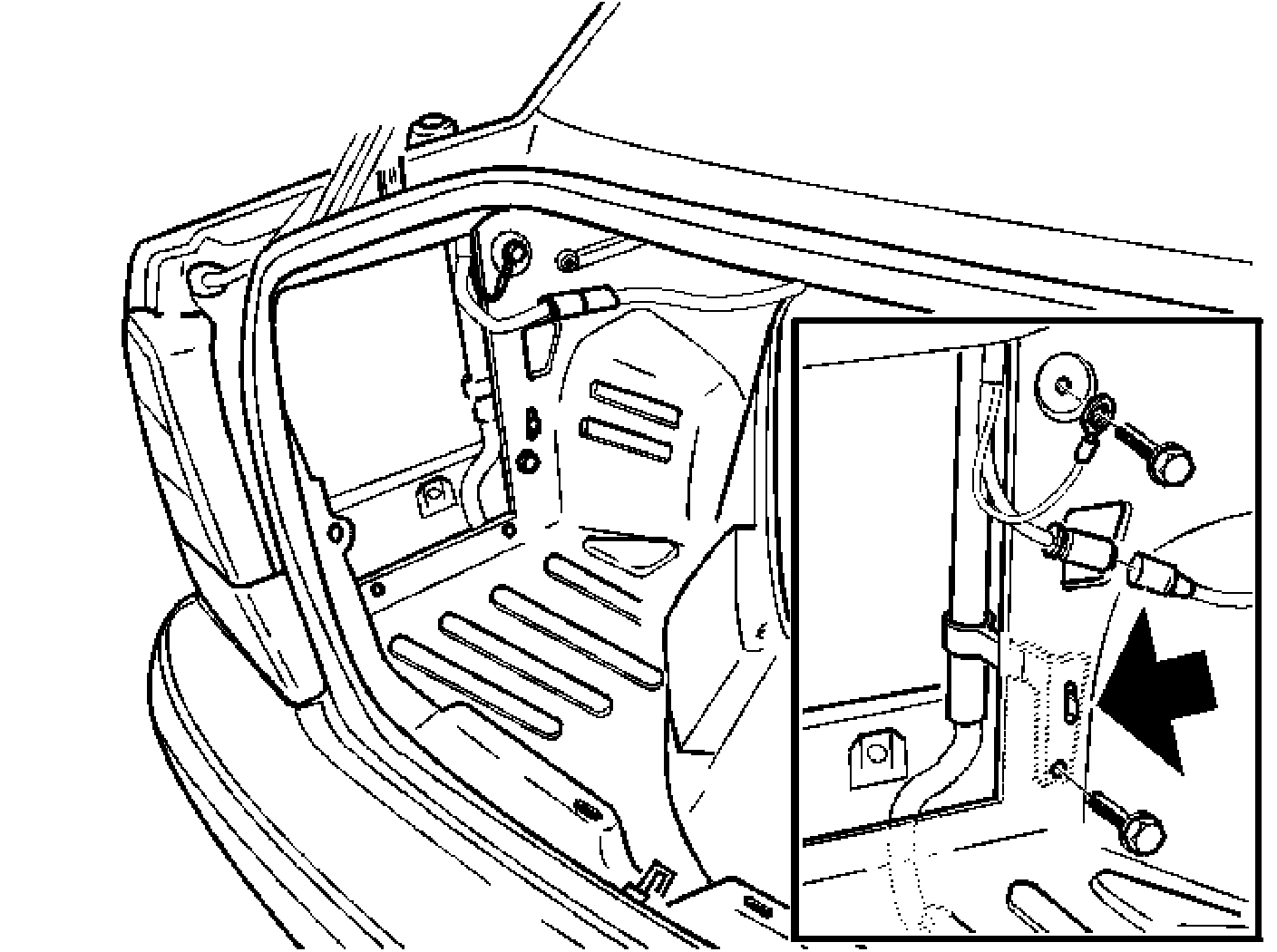

Removing The Standard Antenna







Remove:
- the antenna cable
- the screw for the ground lead.

Remove:
- the drain hose
- the mounting screw for the antenna
- the antenna.

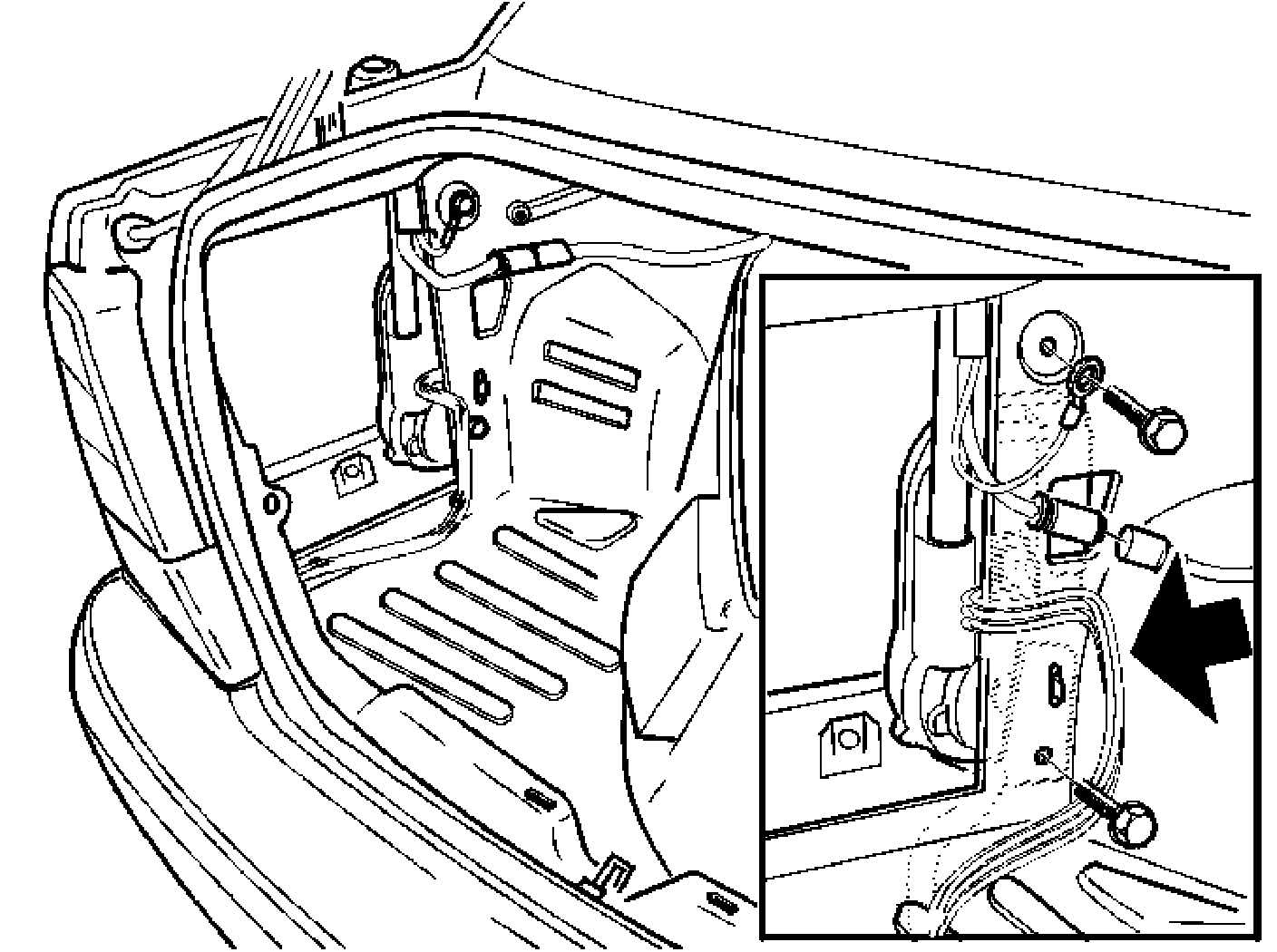

Removing The Power Antenna







Remove:
- the antenna cable and connector
- the screw for the ground lead.

Remove:
- the drain hose
- the mounting screw for the antenna
- the antenna.

Removing The Rubber Seal







Remove the dome shaped nut. Remove the rubber seal.

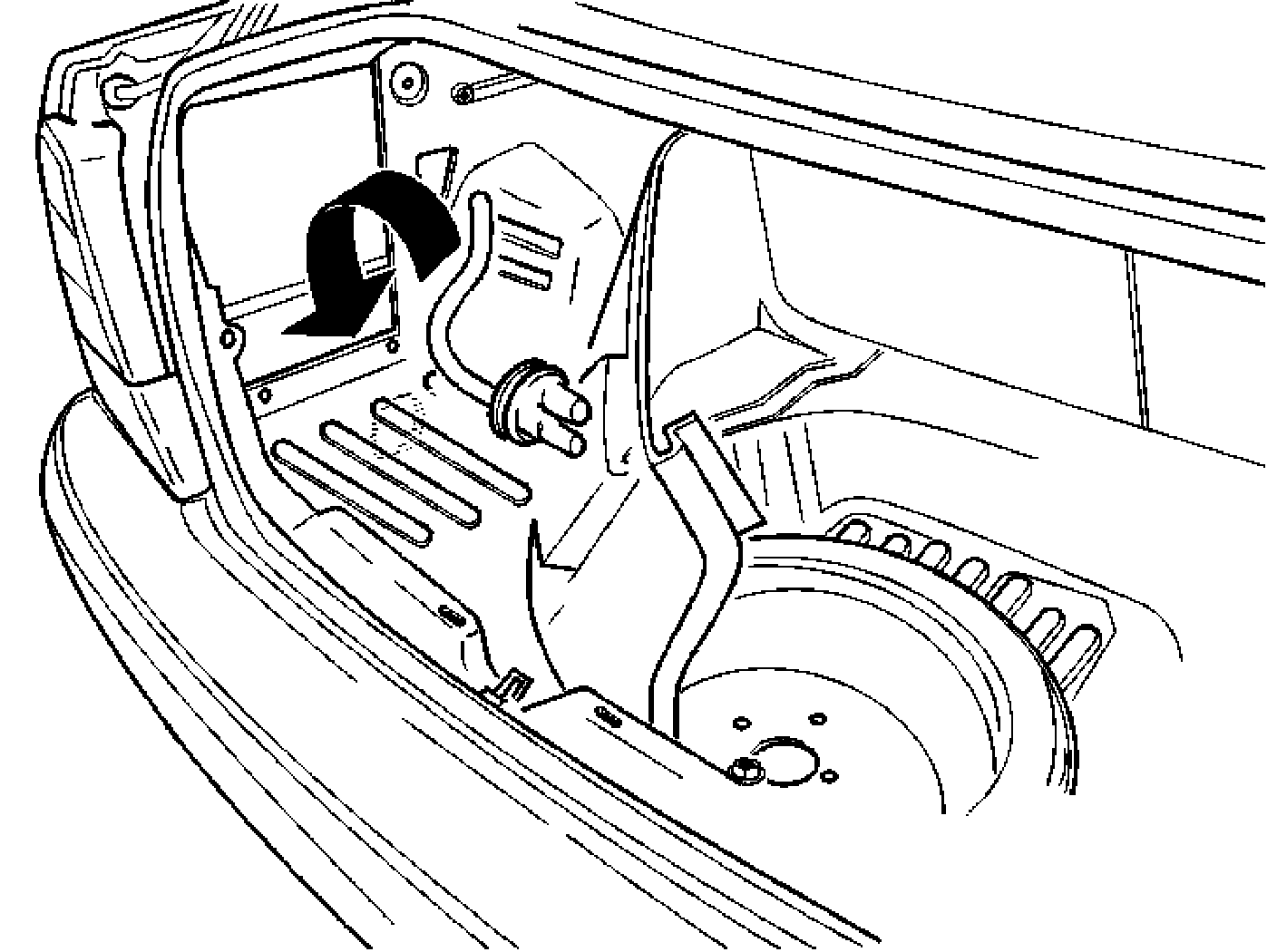

Installing The Drain Hose







- Remove the rubber grommet from the inner wall.
- Route the drain hose for the antenna through the hole.
- Reinstall the rubber grommet.

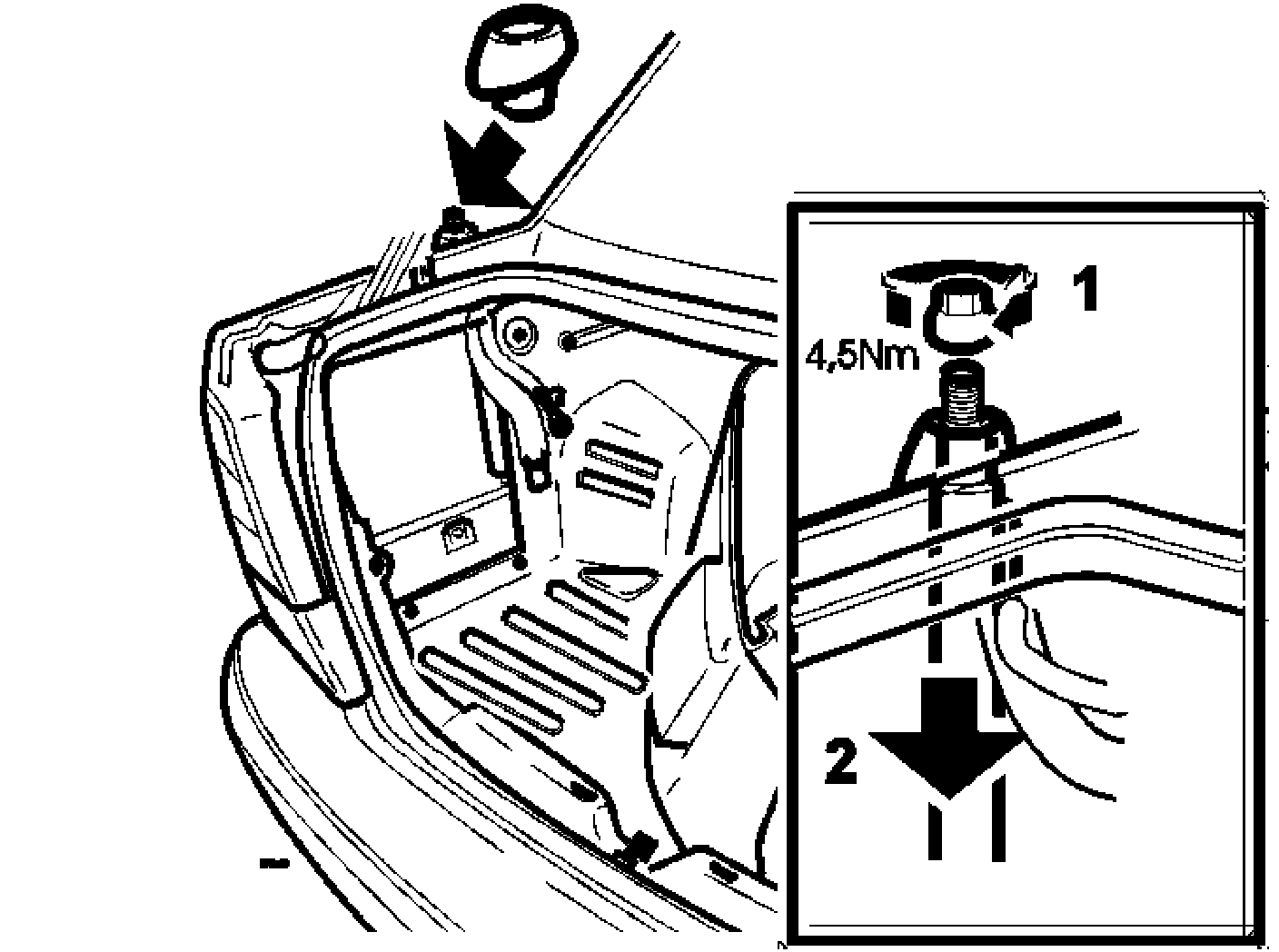

Installing The Standard Antenna







- Install the new rubber seal in the fender.
- Insert the antenna through the seal.
- Install the dome shaped nut. Tighten to 4.5 Nm.
- Pull the antenna down so that the dome shaped nut is partially hidden by the seal.

Install:







- the antenna and ground lead
- the drain hose. Connect the antenna cable.

Installing The Power Antenna







- Install the new rubber seal in the fender.
- Insert the antenna through the seal.
- Install the dome shaped nut. Tighten to 4.5 Nm.
- Pull the antenna down so that the dome shaped nut is partially hidden by the seal.


Install:







- the antenna and ground lead
- the drain hose.

Connect the antenna cable and connector.

Installing Panels
Reinstall the panels in the cargo compartment.

Check







- Ignition on.
- Switch on the radio.
- Check the function.
