A-J Terminal Blocks

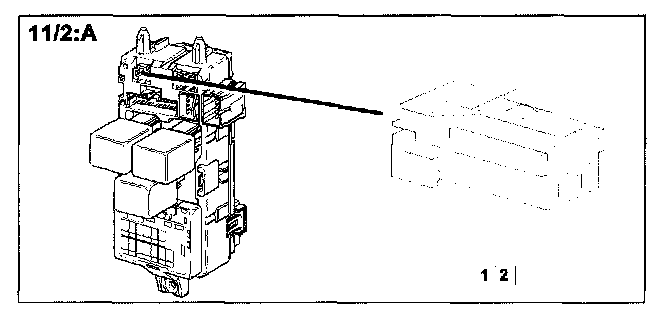

11/2:a Terminal Block:

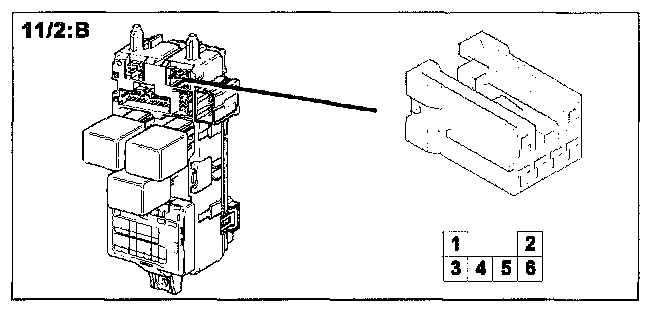

11/2:b Terminal Block:

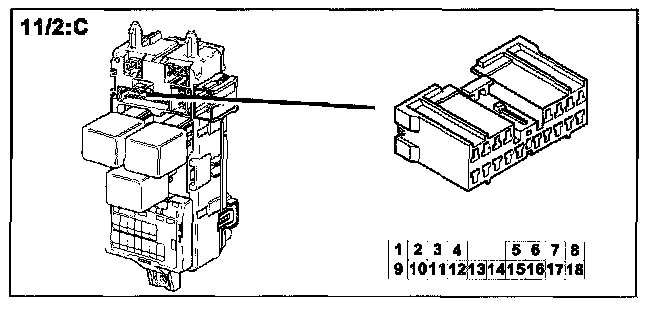

11/2:c Terminal Block:

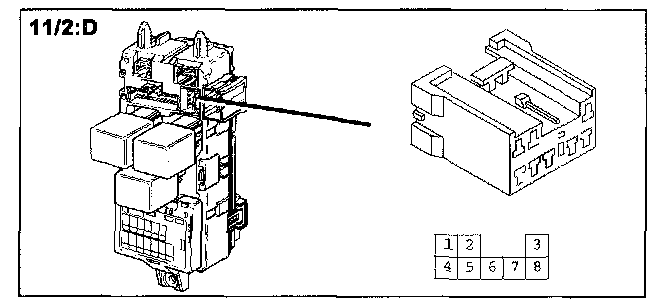

11/2:d Terminal Block:

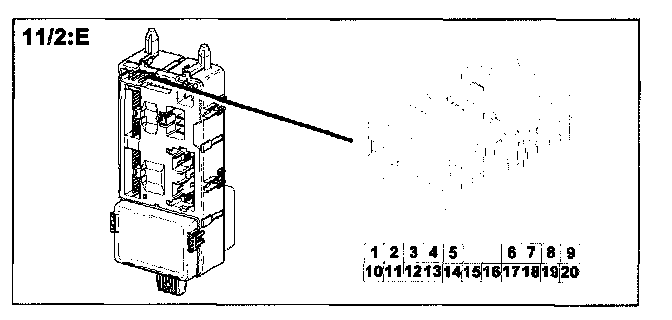

11/2:e Terminal Block:

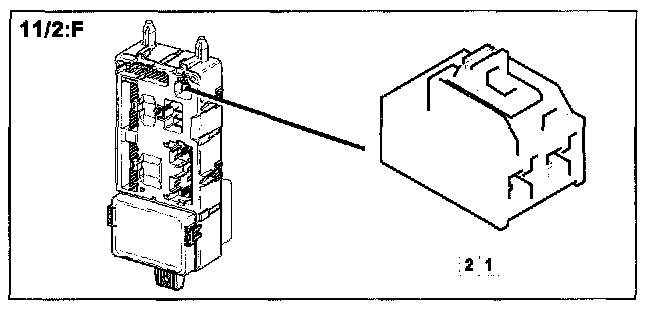

11/2:f Terminal Block:

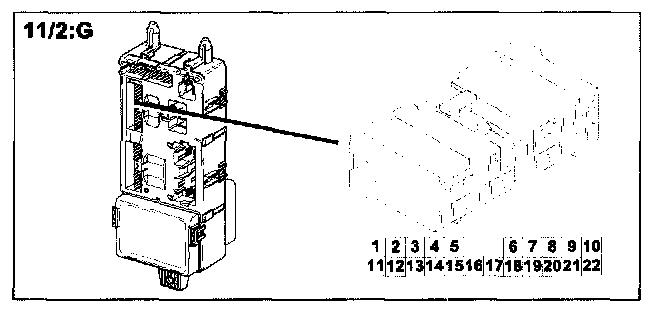

11/2:g Terminal Block:

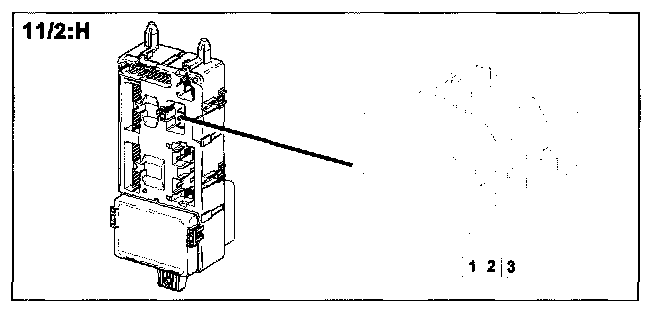

11/2:h Terminal Block:

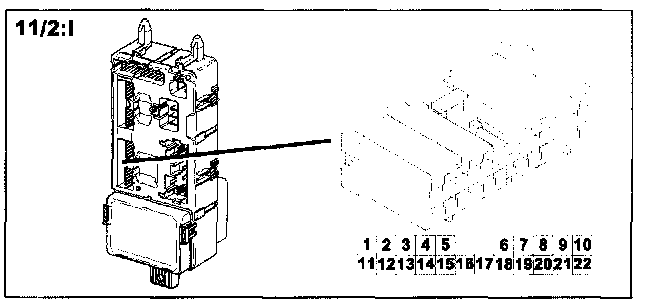

11/2:i Terminal Block:

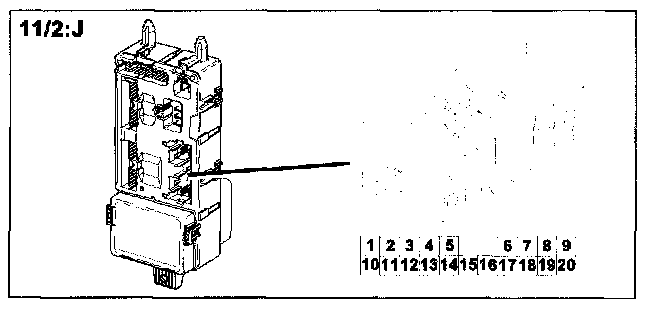

11/2:j Terminal Block:
