Central Locking and Anti-Theft Alarm

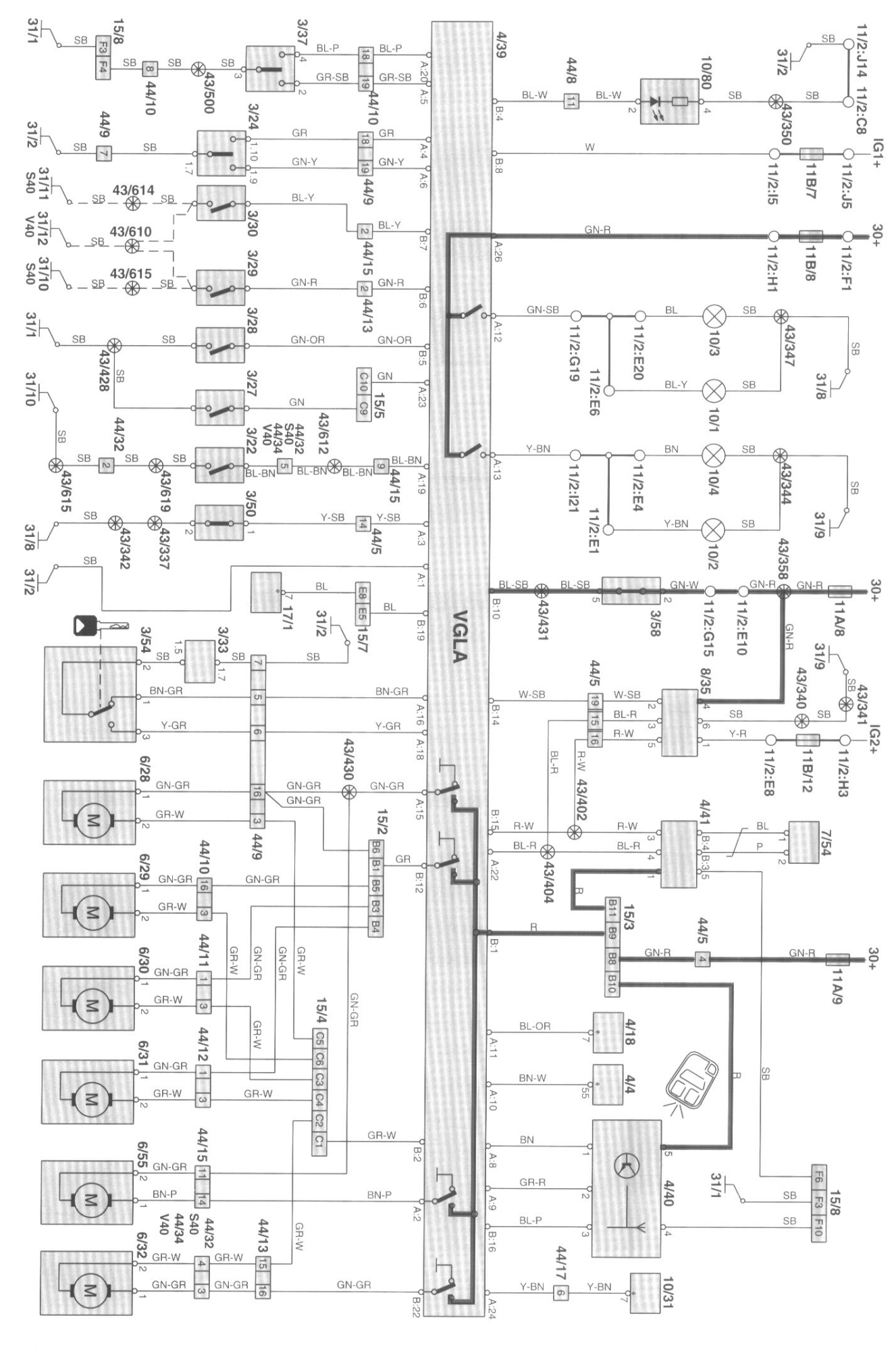

Central Locking And Anti-theft Alarm:






Diagram Legend Diagram Legend
