System Diagram
System Diagram

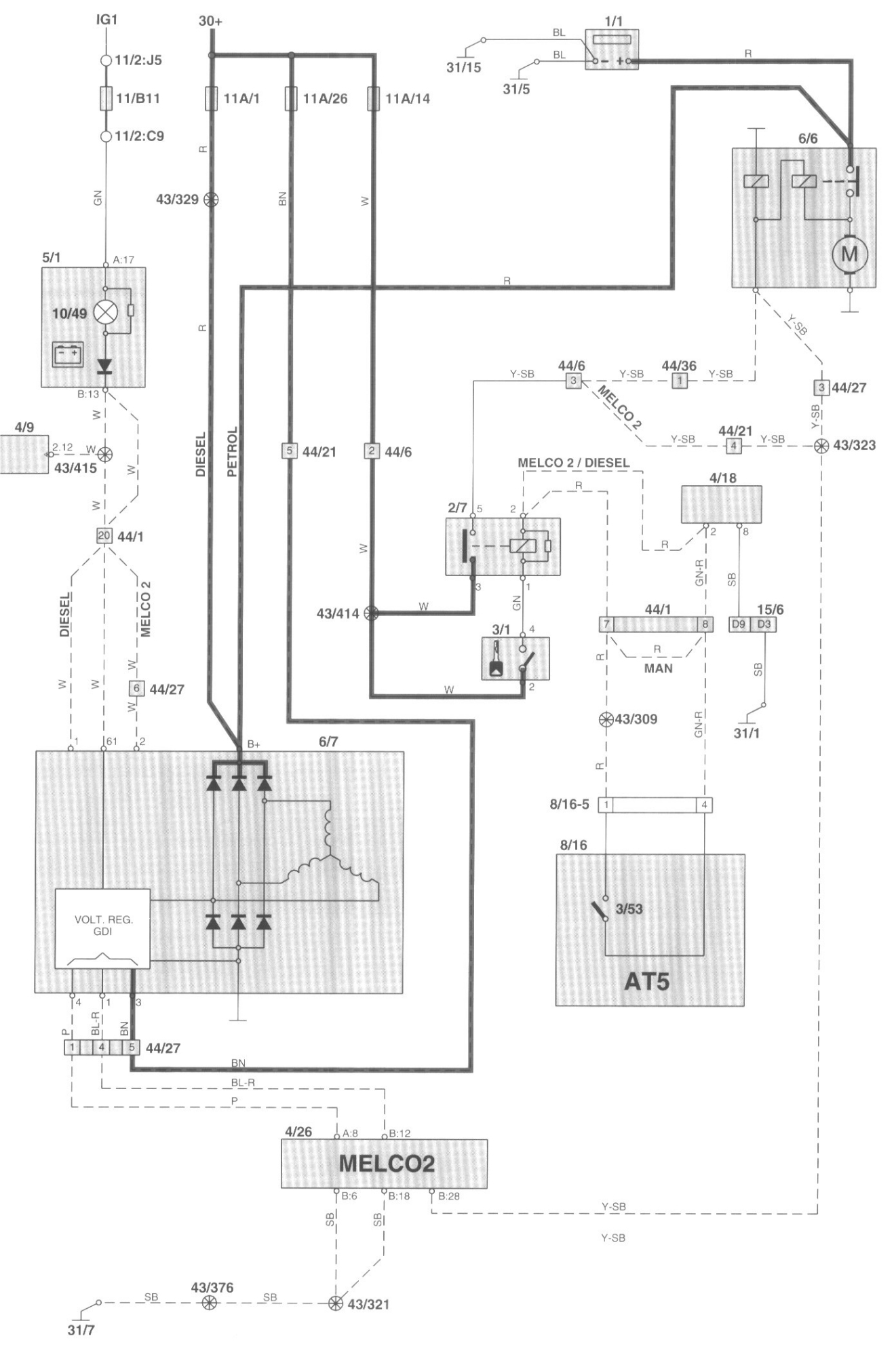

Starting Circuit
Charging Circuit, Starting Circuit:
Diagram Legend
Diagram Legend
