Windshield/Rear Window Wiper/Washer




Wiper/Washer

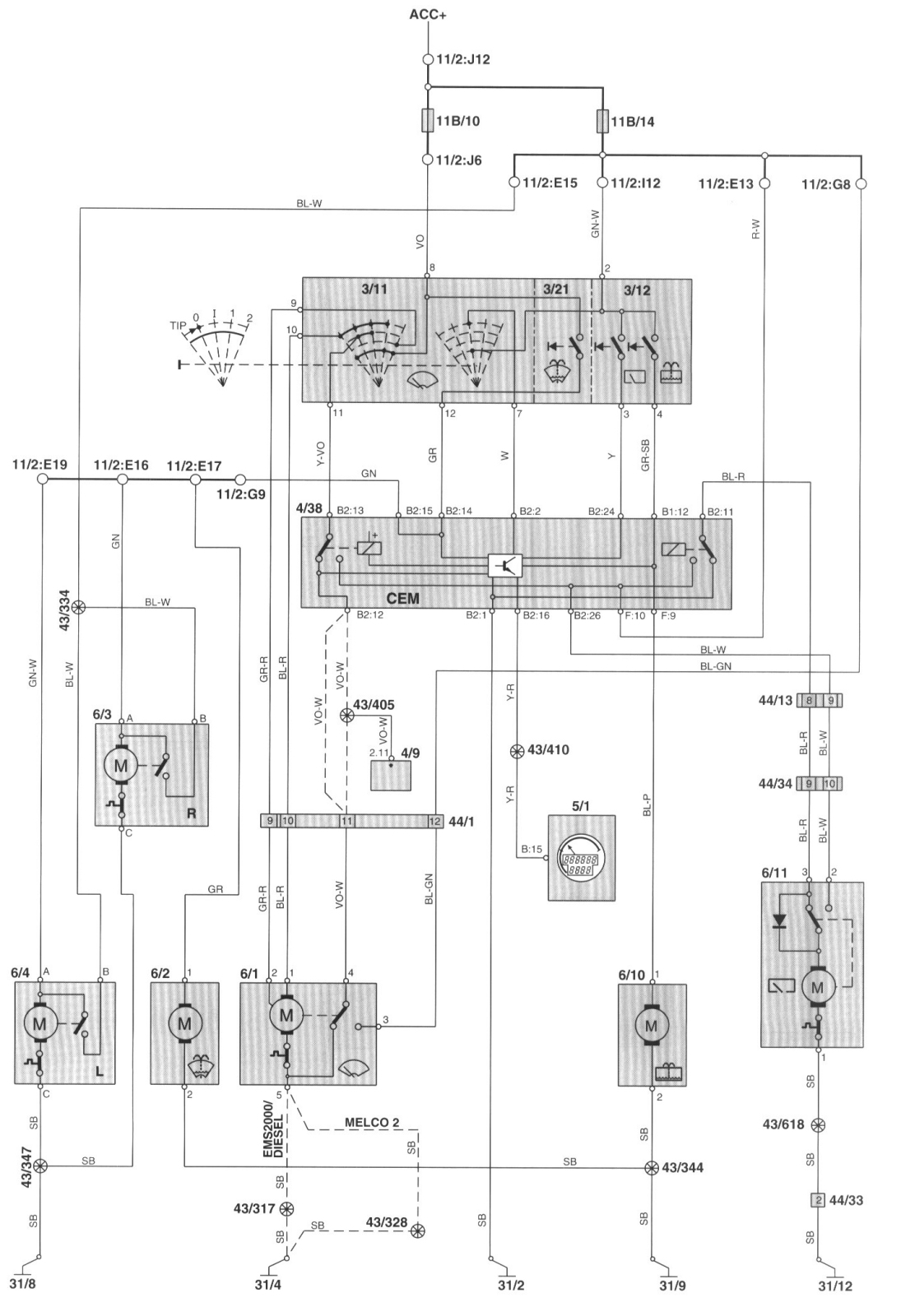

Wiper/washer, Windshield, Headlights And Rear Window:






Diagram Legend Diagram Legend
