S40 L4-1.9L Turbo VIN 29 B4204T3
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Backup Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

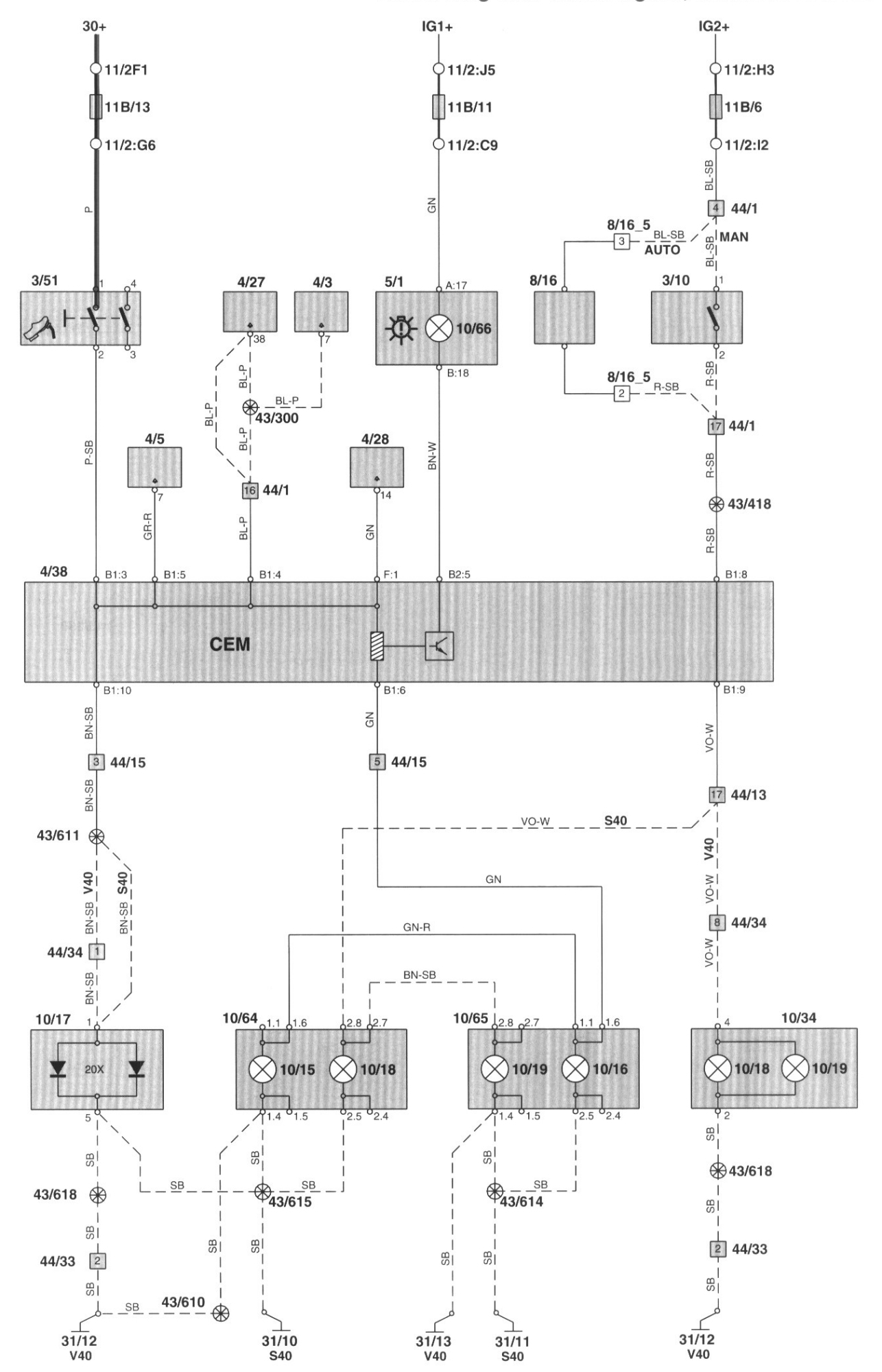

Reversing lights
Reversing And Brake Lights, Filament Monitor:
Diagram Legend
Diagram Legend
