Electrical Diagrams




Interior lighting

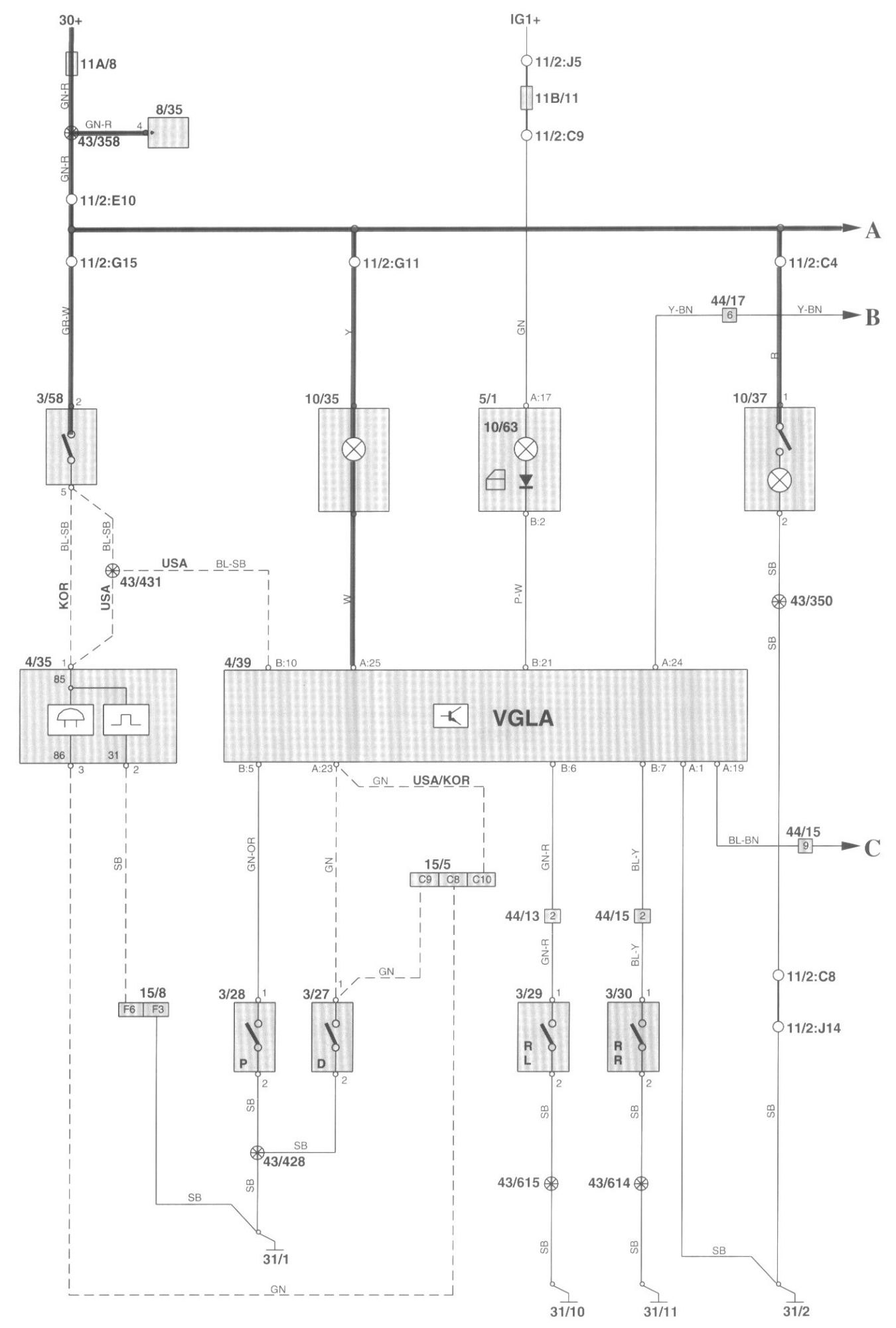

Interior Lighting, Power Sunroof and Key-inserted Reminder - Part 1:

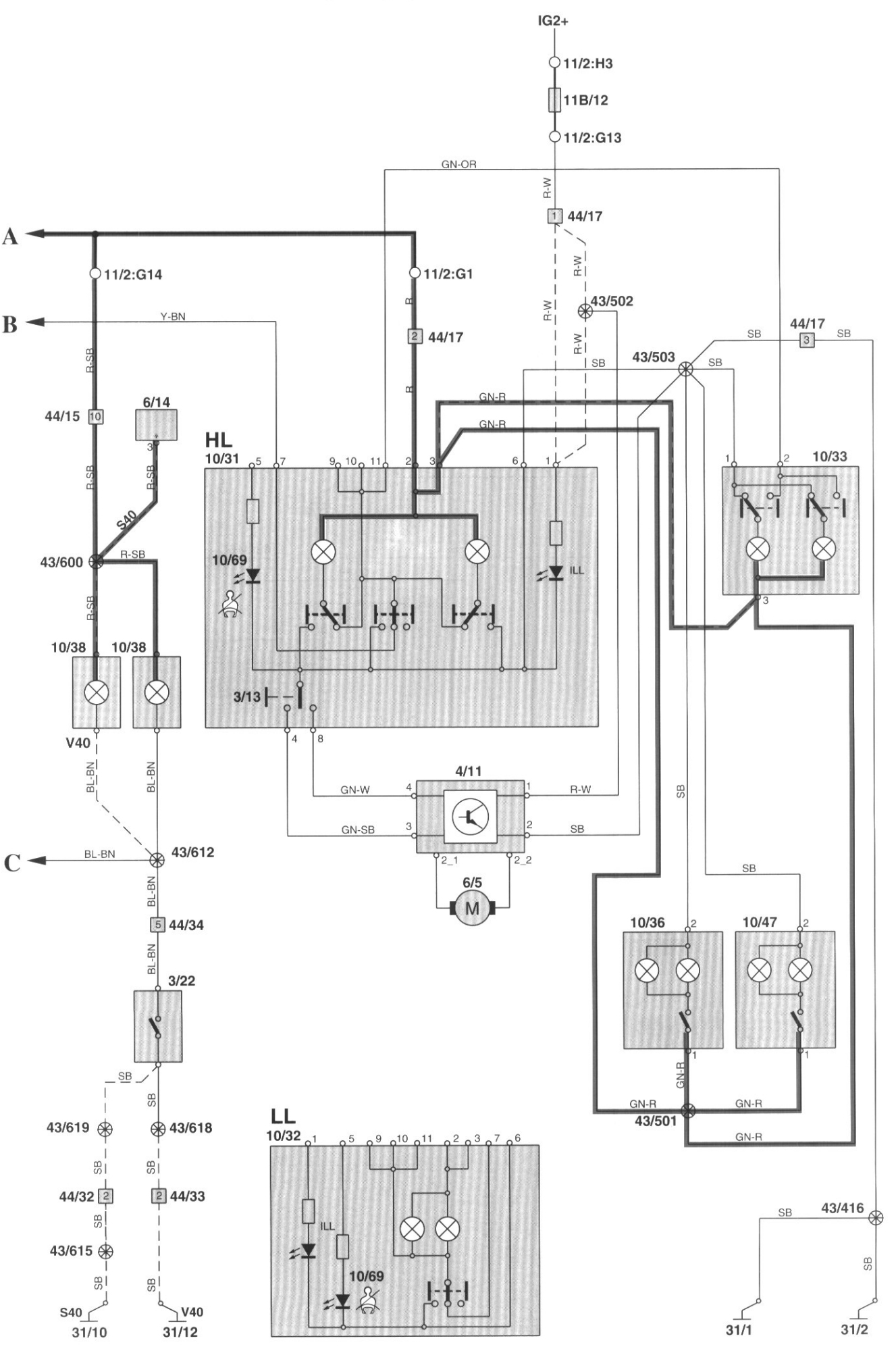

Interior Lighting, Power Sunroof and Key-inserted Reminder - Part 2:






Diagram Legend Diagram Legend
