Electrical Diagrams

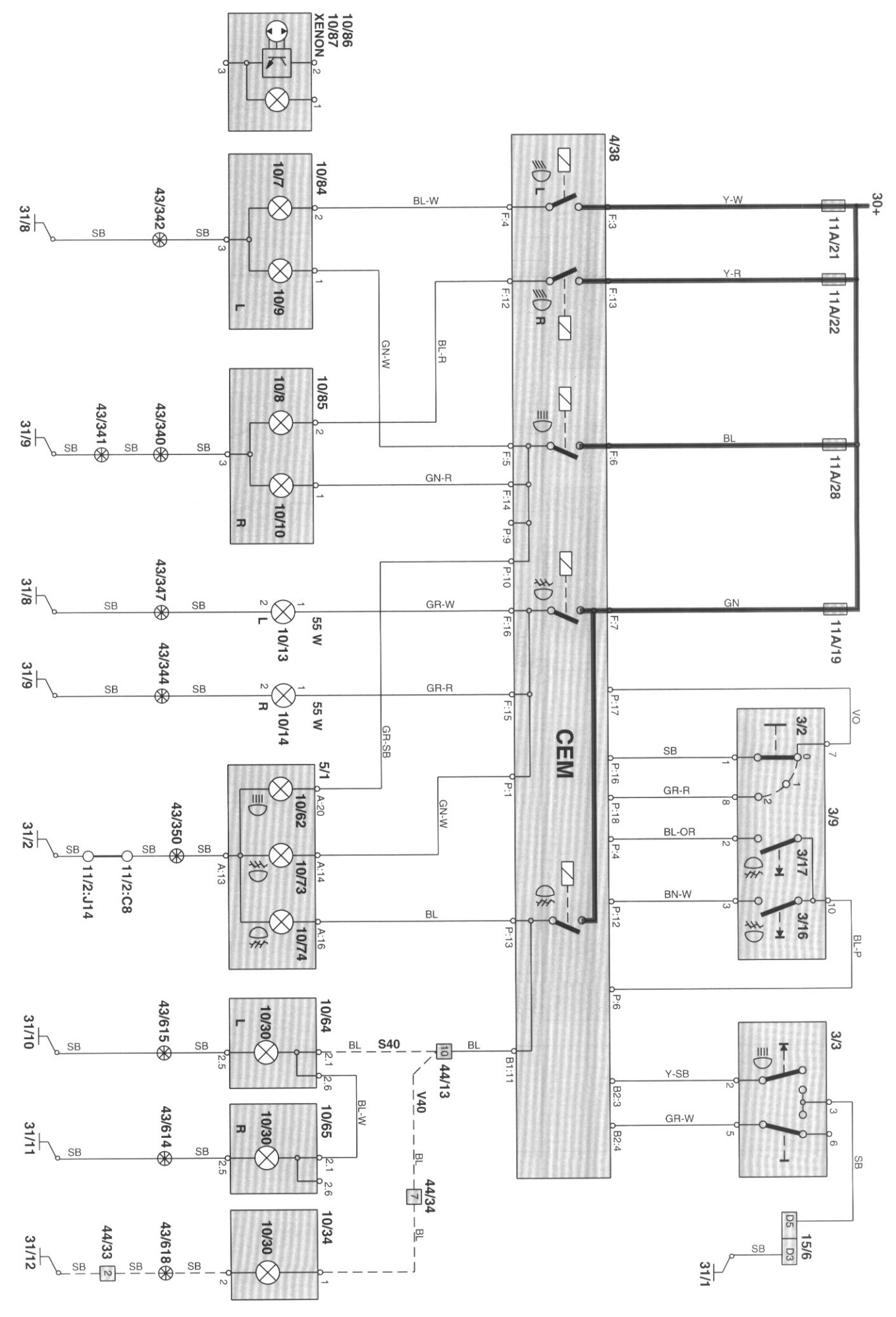

Fog lights


High Beam And Low Beams, Fog Lights:






Diagram Legend Diagram Legend
