Electrical Accessory Panel: Locations

Distribution Rails

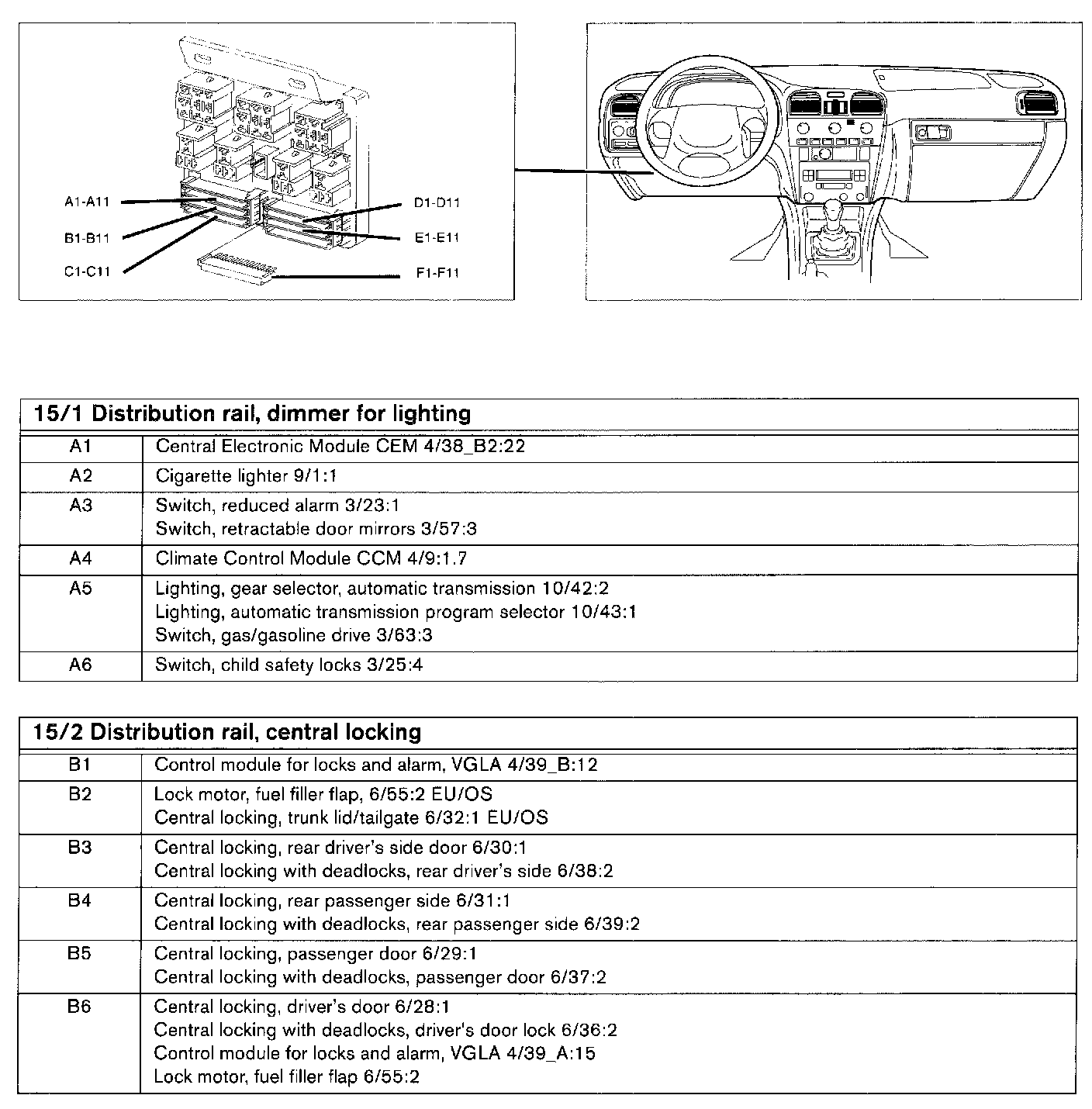

Distribution Rails 15/1 - 15/2:

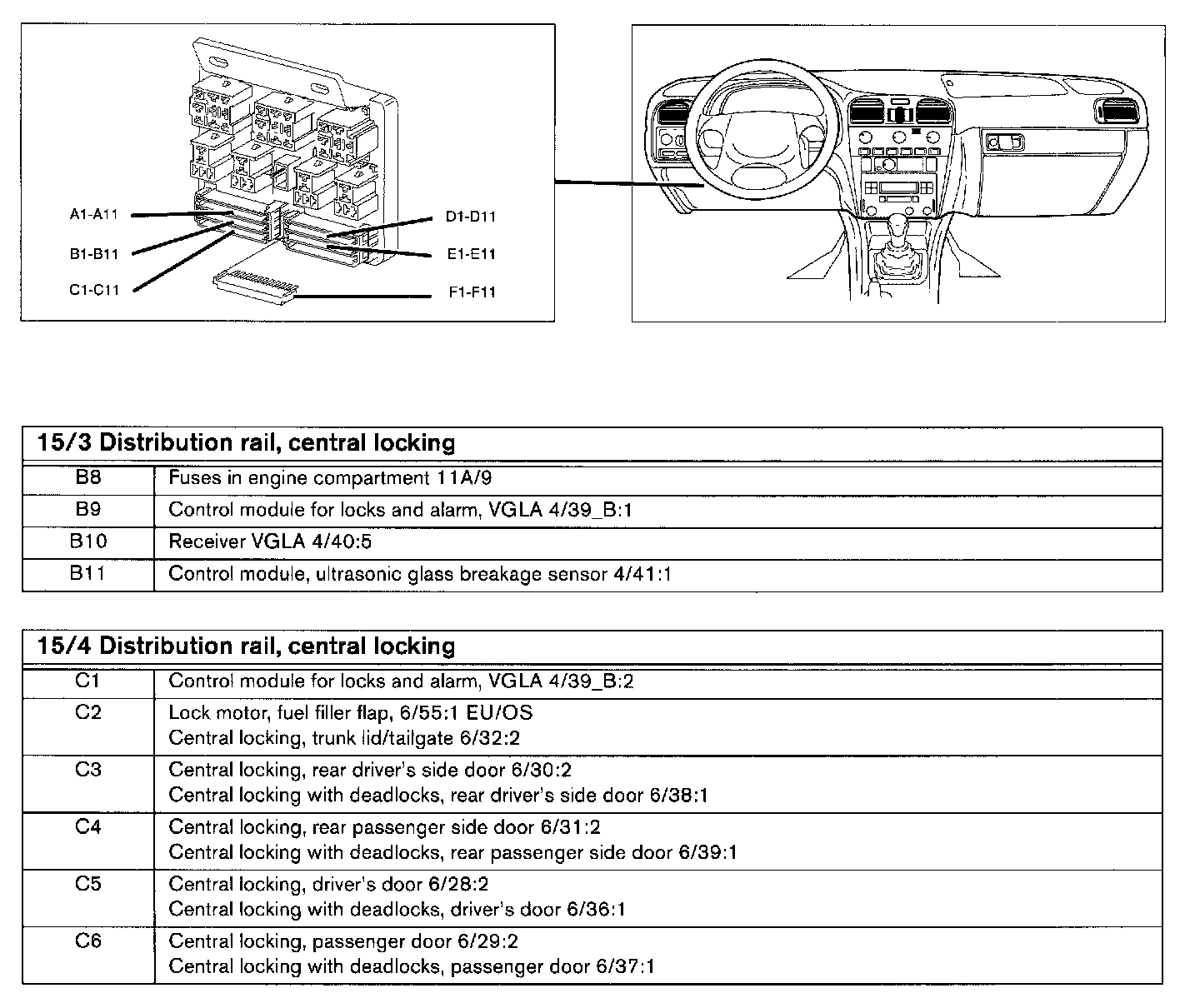

Distribution Rails 15/3 - 15/4:

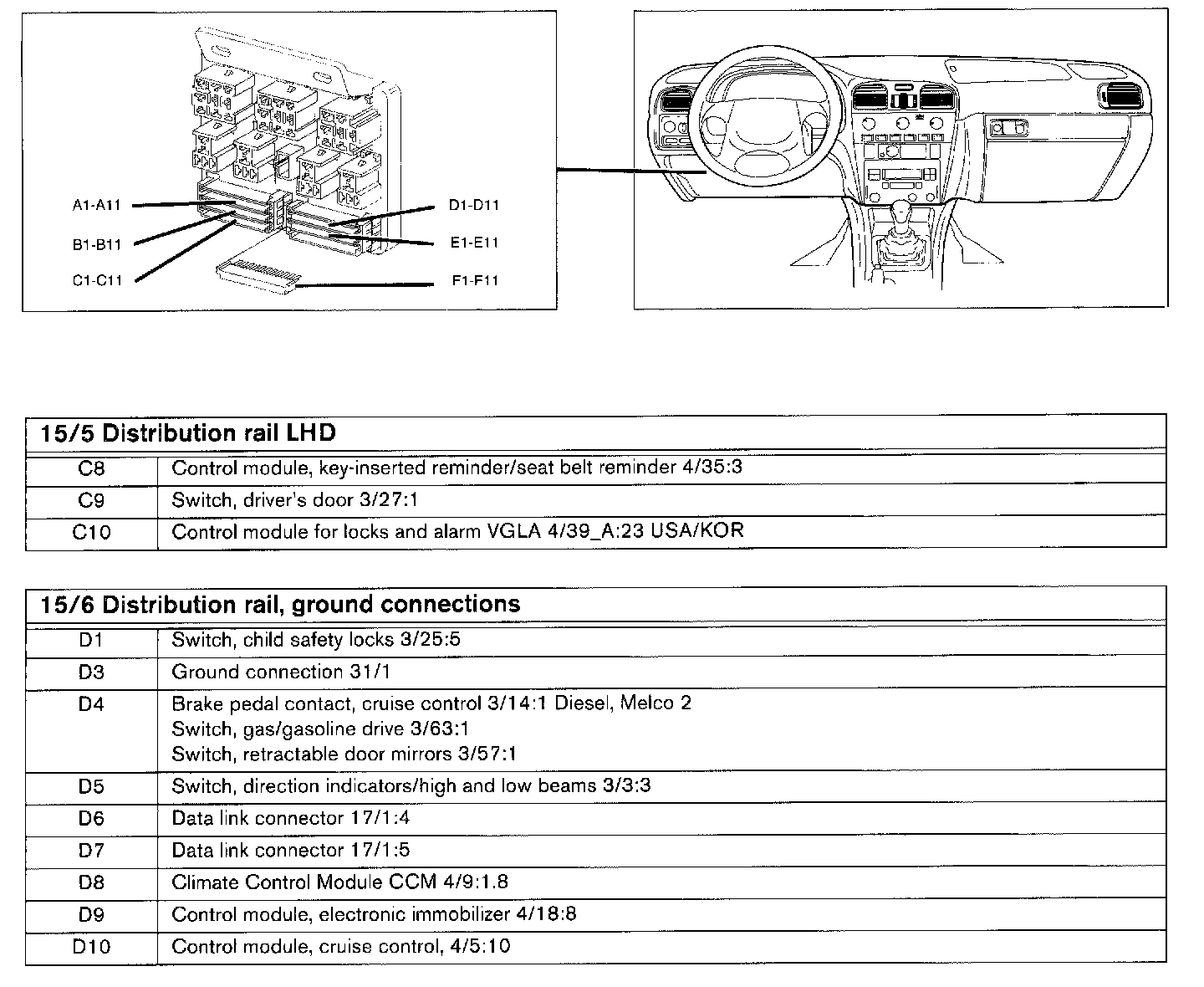

Distribution Rails 15/5 - 15/6:

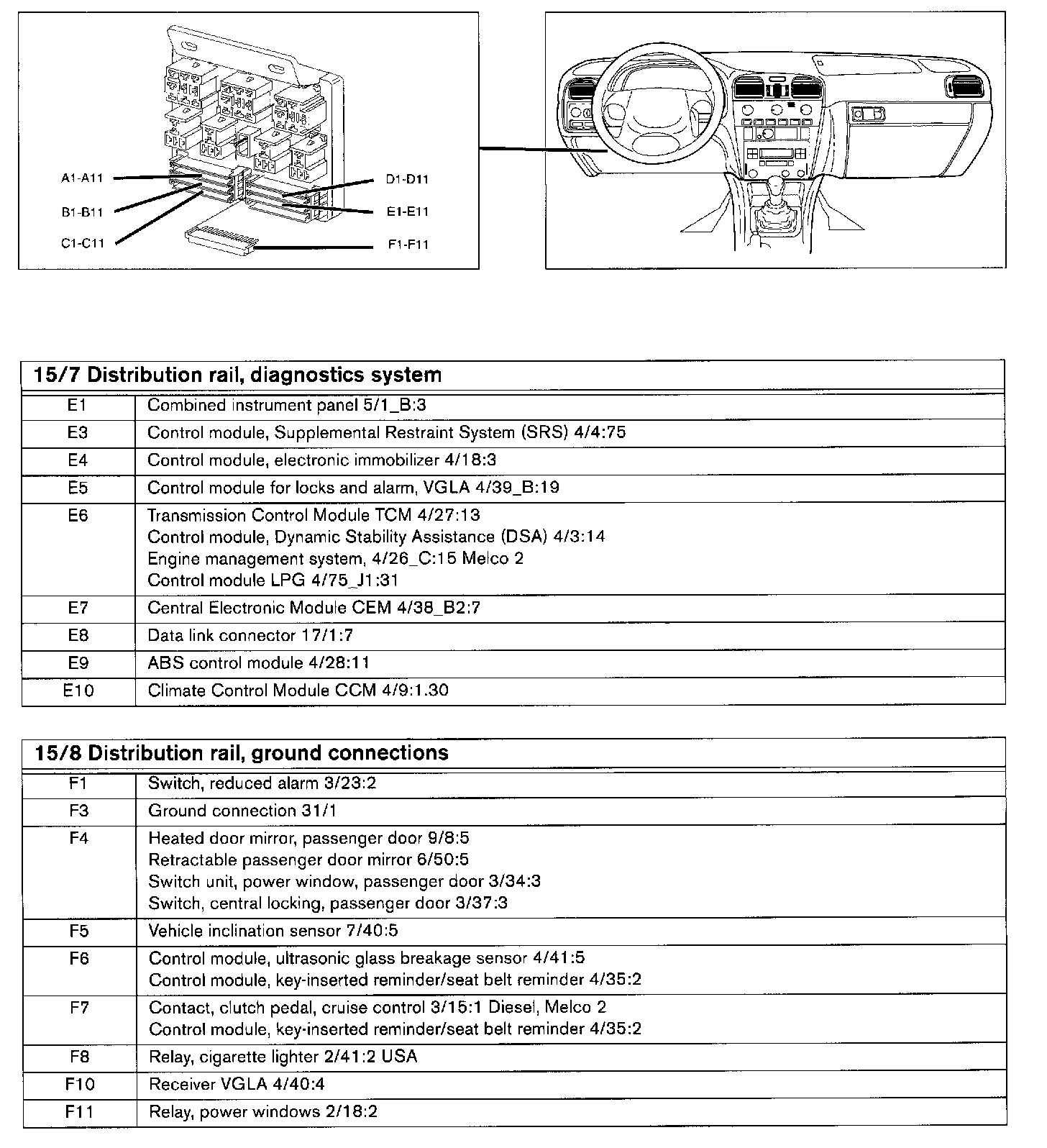

Distribution Rails 15/7 - 15/8:
